2023 Rocky Mountain
Fusion 40

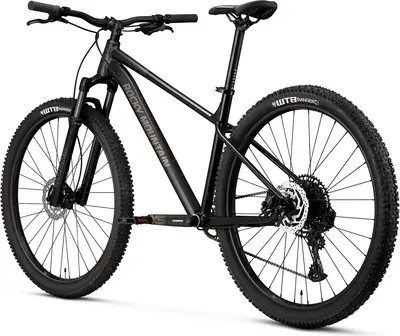

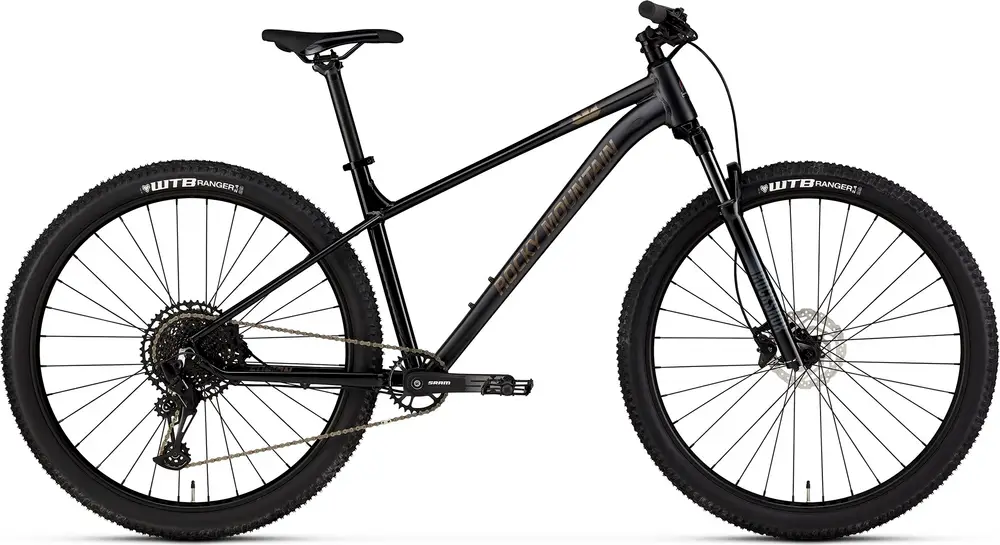

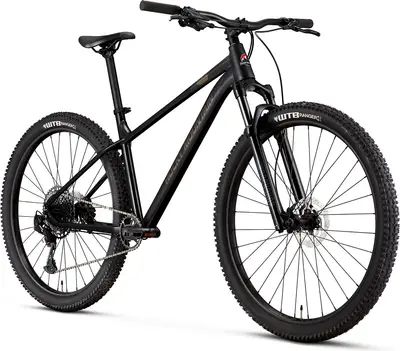

A 29″ aluminum frame hardtail crosscountry bike with upper mid-range components.
Compare the full range
Manufacturer Price
$1,439| Frame | Aluminum |
|---|---|
| Suspension | Hardtail, 100mm |
| Fork | RockShox Judy Silver TK |
| Wheels | 29″ Aluminum |
| Drivetrain | 1 × 12 |
| Groupset | SX Eagle |
| Brakes | Hydraulic Disc |
For This Bike
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full Fusion model range
View Comparison5'4" – 5'7"
5'5" – 5'11"
5'9" – 6'3"
6'1" – 6'6"
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
| Frame | Rocky Mountain 6061 Alloy | Threaded BB | Zero Stack Tapered Headtube Rear Triangle BB Standard: BSA, 73mm, Threaded Color: Black / Brown |
|---|---|
| Fork | RockShox Judy Silver Fast Black TK Air 100mm Travel: 100mm Spring Type: Air |
| Bottom Bracket | SRAM Powerspline |
| Headset | Rocky Mountain | Loose Ball Bearings | 1.5" Crown Race |
| Stem | Rocky Mountain 31.8 XC | 7° Rise | All Sizes = 50mm |
| Handlebar | Rocky Mountain XC | 760mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 31.8 Clamp |
| Saddle | Rocky Mountain 148 Steel |
| Seatpost | Rocky Mountain 30.9mm Type: Rigid |
| Grips | Rocky Mountain Lock On Light |
| Rear Derailleur | SRAM SX Eagle |
|---|---|
| Crank | SRAM SX Eagle Powerspline | 30T |SM-MD 170mm Crank Length | LG-XL 175mm Crank Length |
| Shifters | SRAM SX Eagle |
| Cassette | SRAM PG-1210 11-50T |
| Chain | SRAM SX Eagle |
| Brakes | Shimano MT4100 2 Piston | Resin Pads | F:Shimano RT10 160mm | R:Shimano RT10 160mm Type: Hydraulic Disc |
| Rims | WTB ST i30 TCS 2.0 Tubeless | 32H | Tubeless Compatible - Tape / Valves / Sealant Not Incl |
|---|---|
| Spokes | 2.0 Stainless |
| Front Hub | Shimano TX505 |
| Rear Hub | Shimano TX505 |
| Tires | F: WTB Ranger Comp 29 x 2.4 // R: WTB Ranger Comp 29 x 2.4 |
