2022 Rocky Mountain

Fusion 30

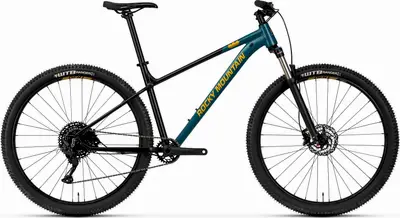

A 29″ aluminum frame hardtail crosscountry bike with upper mid-range components.
Compare the full range

Manufacturer Price

$859$1,069
Price History
FrameAluminum
SuspensionHardtail, 100mm
ForkSuntour XCR Air
Wheels29″ Aluminum
Drivetrain1 × 10
GroupsetmicroSHIFT Advent X
BrakesHydraulic Disc
View on bikes.comLearn about Rocky Mountain
Add to Comparison
Shop with a Gear Advisor
Where to Buy
Sale

$859

$1,069

Rocky Mountain

Fusion 30

Similar Bikes

For This Bike

Accessories
Top Comparison

View more similar bikes →

Insights
Ride Feel

Based on frame geometry and build specs.

Terrain
easyextreme
Handling
nimblestable
Fusion 30
Other Crosscountry bikes
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

24 mph

Fusion 30

27 mph

Similar Bikes

Highest gear

(descending)

Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

Compare the full Fusion model range

View Comparison
Sizing
SM

5'4" – 5'7"

MD

5'5" – 5'11"

LG

5'9" – 6'3"

XL

6'1" – 6'6"

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Price History
Geometry
99 Spokes on YouTube99 Spokes on YouTube
Specs
Build
Frame

Rocky Mountain 6061 Alloy. Threaded BB. Zero Stack Tapered Headtube Rear Triangle

BB Standard: BSA, 73mm, Threaded

Colors: Black / Orange; Black / Blue

Fork

Suntour XCR32 LOR Air 100mm

Travel: 100mm

Spring Type: Air

Bottom Bracket

Rocky Mountain Sealed - Shimano Compatible

Headset

Rocky Mountain | Loose Ball Bearings | 1-1/8" Reducer Crown Race

Stem

Rocky Mountain 31.8 XC | 7° Rise | All Sizes = 50m

Handlebar

Rocky Mountain XC | 760mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 31.8 Clamp

Saddle

Rocky Mountain 148 Steel

Seatpost

Rocky Mountain 30.9mm

Type: Rigid

Grips

Rocky Mountain Lock On Light

Groupset
Rear Derailleur

MicroShift Advent X 10spd With Clutch

Crank

Rocky Mountain Microdrive 2PC | 30T |76mm Asymmetrical BCD | 24mm Spindle | Crank Length: XS-SM-MD = 170-mm | LG - XL = 175mm

Shifters

MicroShift Advent X 10spd

Cassette

MicroShift CS-H104 11-48T

Chain

KMC X10-1

Brakes

Clarks M2 2 Piston | Resin Pads | F: Shimano RT10 160mm | R: Shimano RT10 160mm

Type: Hydraulic Disc

Wheels
Rims

Rocky Mountain TR30 Tubeless | 32H | Tubeless Compatible - Tape | Valves | Sealant Not Incl

Spokes

2.0 Stainless

Front Hub

Rocky Mountain QR

Rear Hub

Rocky Mountain QR

Tires

F: WTB Ranger Comp 29 x 2.4 | R: WTB Ranger Comp 29 x 2.4

Rider Notes
