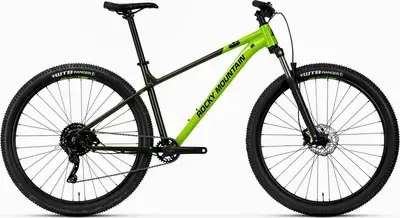

2022 Rocky Mountain

Fusion 10

A 29″ aluminum frame hardtail crosscountry bike with mid-range components.
Compare the full range

Manufacturer Price

$909
Price History
FrameAluminum
SuspensionHardtail, 100mm
ForkSuntour XCM
Wheels29″ Aluminum
Drivetrain1 × 9
GroupsetmicroSHIFT Advent
BrakesHydraulic Disc
View on bikes.comLearn about Rocky Mountain
Add to Comparison
Shop with a Gear Advisor
Where to Buy
Similar Bikes

For This Bike

Accessories
Top Comparison

View more similar bikes →

Insights
Ride Feel

Based on frame geometry and build specs.

Terrain
easyextreme
Handling
nimblestable
Fusion 10
Other Crosscountry bikes
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

24 mph

Fusion 10

27 mph

Similar Bikes

Highest gear

(descending)

Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

Compare the full Fusion model range

View Comparison
Sizing
SM

5'4" – 5'7"

MD

5'5" – 5'11"

LG

5'9" – 6'3"

XL

6'1" – 6'6"

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Price History
Geometry
99 Spokes on YouTube99 Spokes on YouTube
Specs
Build
Frame

Rocky Mountain 6061 Alloy. Threaded BB. Zero Stack Tapered Headtube Rear Triangle

BB Standard: BSA, 73mm, Threaded

Colors: Green / Green; Grey / Black

Fork

Suntour XCM 100mm

Travel: 100mm

Spring Type: Coil

Bottom Bracket

Sealed Cartridge Bearing

Headset

Rocky Mountain | Loose Ball Bearings | 1-1/8" Reducer Crown Race

Stem

Rocky Mountain 31.8 XC | 7° Rise | All Sizes = 50m

Handlebar

Rocky Mountain XC | 740mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 31.8 Clamp

Saddle

Rocky Mountain 148 Steel

Seatpost

Rocky Mountain 30.9mm

Type: Rigid

Grips

Rocky Mountain Lock On Light

Groupset
Rear Derailleur

MicroShift Advent With Clutch

Crank

Rocky Mountain Microdrive 3PC | 30T |76mm Asymmetrical BCD | Crank Length: XS-SM-MD = 170-mm | LG - XL = 175mm

Shifters

MicroShift Xpress Plus 9spd

Cassette

MicroShift CS-H093 11-42T

Chain

KMC X9

Brakes

Clarks M2 2 Piston | Resin Pads | F: Shimano RT10 160mm | R: Shimano RT10 160mm

Type: Hydraulic Disc

Wheels
Rims

Rocky Mountain TR25 Tubeless | 32H | Tubeless Compatible - Tape | Valves | Sealant Not Incl

Spokes

2.0 Stainless

Front Hub

Rocky Mountain QR

Rear Hub

Rocky Mountain QR

Tires

F: WTB Ranger Comp 29 x 2.25 | R: WTB Ranger Comp 29 x 2.25
