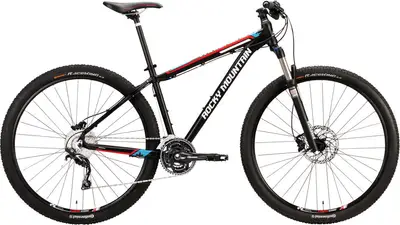

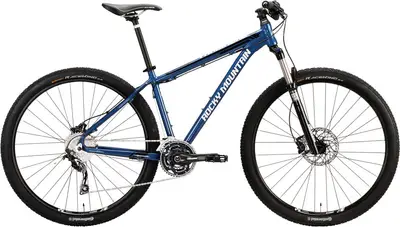

2014 Rocky Mountain

Trailhead 29

A 29″ aluminum frame hardtail crosscountry bike with upper mid-range components.

Manufacturer Price

$1,299
FrameAluminum
SuspensionHardtail, 100mm
ForkRockShox
Wheels29″ Aluminum
Drivetrain3 × 10
GroupsetSLX, Deore
BrakesShimano Hydraulic Disc
Where to Buy
Similar Bikes
Top Comparison
Insights
Ride Feel

Based on frame geometry and build specs.

Terrain
easyextreme
Handling
nimblestable
Trailhead 29
Other Crosscountry bikes
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

33 mph

Trailhead 29

27 mph

Similar Bikes

Highest gear

(descending)

Sizing
SM

5'2" – 5'8"

MD

5'6" – 5'11"

LG

5'10" – 6'3"

XL

6'1" – 6'7"

🐐 Estimated

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Geometry
Specs
Build
Frame

Rocky Mountain 6061 Series Custom Hydroformed Alloy Threaded BB ZeroStack 1-1/8\" Headtube Rack and Fender Mounts

BB StandardBSA, 73mm, Threaded

Fork

RockShox XC32 TK 29 Solo Air

Travel100mm

Spring TypeAir

Bottom Bracket

Shimano Deore Hollowtech

Headset

FSA #10 Internal: ZS44mm

Stem

Rocky Mountain L7 7° x 60-90mm

Handlebar

Rocky Mountain Zero9 Flat Ø31.8mm x 700mm x 9° Sweep

Saddle

Rocky Mountain XC

Seatpost

Rocky Mountain L2B 27.2mm x 400mm

TypeRigid

Grips

Rocky Mountain XC Kraton

Groupset
Rear Derailleur

Shimano SLX 10spd

Front Derailleur

Shimano Deore 31.8mm 10spd

Crank

Shimano Deore 170-175mm 42/32/24T 10spd

Shifters

Shimano Deore Rapid Fire 10spd

Cassette

Shimano HG62 11-36T 10spd

Chain

Shimano HG54 10spd

Brakes

Shimano BR-M446 Hydraulic Disc 160mm

TypeShimano Hydraulic Disc

Brake Levers

Shimano BL-M446

Wheels
Rims

Wheeltech TD26 By Alex

Spokes

Stainless

Front Hub

Shimano RM66 / Centerlock / 32H

Rear Hub

Shimano RM66 / Centerlock / 32H

Tires

Continental Race King 29\" x 2.2\"
