Today’s Deals2023 Riese & Müller

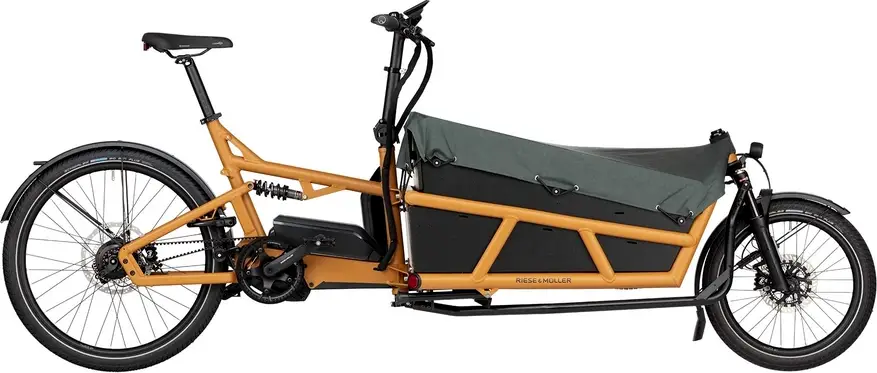

Load4 75 rohloff
A 20″ / 26″ aluminum frame box e-bike with high-end components and tektro hydraulic disc brakes.
Compare the full range
Manufacturer Price
$12,269| Weight | 84.2 lbs |
|---|---|
| Frame | Aluminum |
| Suspension | Full, 80 / 50mm |
| Fork | Suntour MOBIE |
| Shock | X-Fusion |
| Wheels | 20″ / 26″ Aluminum |
| Drivetrain | Belt Drive |
| Groupset | FSA |
| Motor | Bosch mid-drive |
| Battery | Bosch 725Wh |
| Brakes | Tektro Hydraulic Disc |
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full Load4 model range
View Comparison3'11" +
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
| Frame | Aluminum Colors: Peanut Matt; Coal Grey Matt |
|---|---|
| Fork | Suntour Mobie 34 CGO Boost, 20", 80mm Travel: 50mm |
| Shock | X-Fusion Glyde Travel: 80mm |
| Headset | Acros AZX-221, block lock; TH No. 9, semi-integrated |
| Stem | Riese & Müller, adjustable height and angle |
| Handlebar | FSA V-Drive, 31,8 mm, Alu |
| Saddle | Selle Royal New Lookin Male Eco |
| Seatpost | JD/Riese & Müller, Alu, 34,9 x 430mm Type: Rigid |
| Pedals | VP R&M Custom |
| Grips | Ergon ergonomic |
| Crank | FSA/Riese & Müller, 170 mm |
|---|---|
| Shifters | Rohloff E14 electronic shifter |
| Chain | Gates drive belt CDX |
| Chain Guide | Riemenschutzring |
| Brakes | Tektro TRP C 2.3 disc brake; Magura MT C ABS* Type: Tektro Hydraulic Disc |
| Rims | Mach1 Trucky30 20" CNC; Mach1 Trucky30 26" CNC |
|---|---|
| Spokes | Sapim Leader 2,0 mm, Inox, black ( 16x ); Sapim Leader 2,0 mm, Inox, black ( 36x ) |
| Front Hub | Novatec Boost Cargo Disc 32H |
| Rear Hub | Rohloff Speedhub E14, 14-speed, 36H |
| Tires | Schwalbe Big Ben Plus 55-406 Reflex; Schwalbe Big Ben Plus 55-559 Reflex; Schwalbe 20" Smart Sam Plus 60-406 ECE-R75*; Schwalbe Smart Sam Plus 57-559 Reflex* |
| Motor | Bosch Cargo Line (smart system) |
|---|---|
| Battery | Akku Bosch PowerPack Frame 725; Akku Bosch PowerPack Frame 725 ( 2x )* |
| Display | Bosch Purion 200; Bosch Kiox 300*; Bosch Kiox 500* |
| Lights | Front: Supernova M99 Mini Pro-25, Rear: Supernova M99, integrated brake light |
|---|---|
| Fenders | SKS A65R; SKS A69R |
| Racks | Riese & Müller |
| Lock | ABUS Shield X+ |
| Bell | Billy |
