2018 Redline
Proline Pro 24

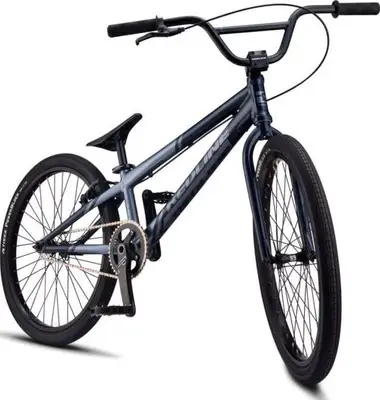

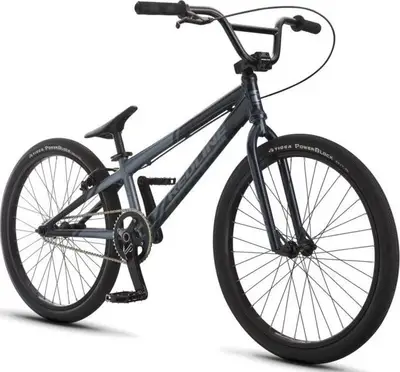

A 24″ aluminum frame bmx bike with rim brakes.
Compare the full range
| MSRP | $599 |
|---|---|
| Weight | 21.8 lbs |
| Frame | Aluminum |
| Suspension | Rigid |
| Fork | Steel |
| Wheels | 24″ Aluminum |
| Brakes | Rim |
For This Bike
3'11" +
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
| Frame | Redline Proprietary 6061 T6 Alloy Formed Tubing, Machined BB, Integrated HT, Euro BB |
|---|---|
| Fork | RL 100% Full Chromo, Multi Butted with Tapered Legs |
| Bottom Bracket | Sealed Euro BB |
| Headset | Integrated Headset 1 1/8, Aluminum top cap |
| Stem | RL Aluminum HollowPoint 55mm |
| Handlebar | RL Pro Chromo 5.5" 10¡ Back, 4¡ Up |
| Saddle | Pivotal No padding |
| Seatpost | Aluminum Pivotal 26.8mm Type: Rigid |
| Pedals | RL Aluminum 9/16" Platform |
| Grips | RL Pro Hex Grips |
| Crank | Proline 2pc Alloy Forged Cranks 180mm w/24mm Chromo Spindle |
|---|---|
| Chain | KMC Z33 |
| Brakes | Tektro 930AL Linear Type: Rim |
| Brake Levers | Tektro |
| Rims | Sun Rhyno Lite |
|---|---|
| Spokes | Black, Stainless Steel |
| Front Hub | Redline Aluminum Fully Sealed |
| Rear Hub | Redline Aluminum, Cassette, Fully Sealed |
| Tires | Tioga PowerBlock F. 24 x 1.75" / R. 24 x 1.6" |
Last updated April 7
