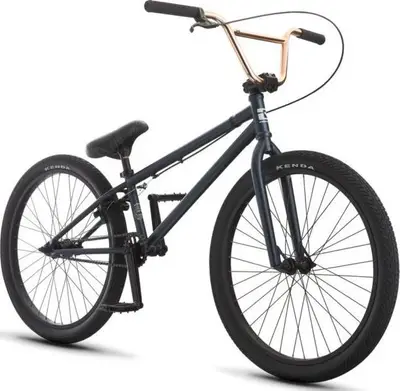

2018 Redline
Asset 24
A 24″ steel frame bmx bike with rim brakes.
Compare the full range
| MSRP | $449 |
|---|---|
| Weight | 26.0 lbs |
| Frame | Steel |
| Suspension | Rigid |
| Fork | Steel |
| Wheels | 24″ Aluminum |
| Brakes | Rim |
For This Bike
3'11" +
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
| Frame | Full Chromo, Integrated Headtube |
|---|---|
| Fork | RL Monster Chromo Steerer, Tapered leg fork |
| Bottom Bracket | Sealed Mid BB |
| Headset | Monster Integrated |
| Stem | Front Load, 50mm |
| Handlebar | Chromo 7.5" Rise/ 28.5" Wide 10¡ Back, 4¡ Up |
| Saddle | Fat Monster Padded Combo Saddle |
| Seatpost | 25.4 Type: Rigid |
| Pedals | Monster, Sealed Bearing, Ultra Low profile Resin Platform w/Chromo Spindle |
| Grips | Monster 151 Flangeless w/Plugs |
| Crank | 100% heat treated Chromo 3pc Cranks, |
|---|---|
| Chain | KMC Z410 |
| Brakes | Tektro FX 340 Rear U Type: Rim |
| Brake Levers | Tektro |
| Rims | RL spec 36h Alloy |
|---|---|
| Spokes | Black |
| Front Hub | Aluminum, Chromo 3/8" Axle |
| Rear Hub | Aluminum, Fully Sealed, Chromo 14mm Axle |
| Tires | Kenda Kranium 24 x 2.10Ó |
