2018 Redline
Asset

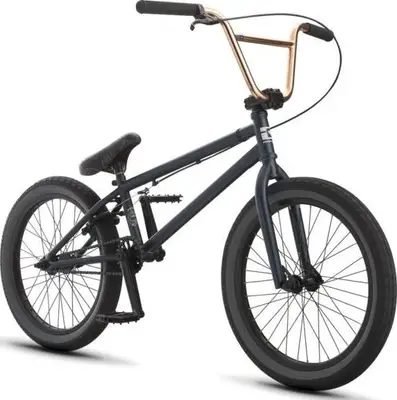

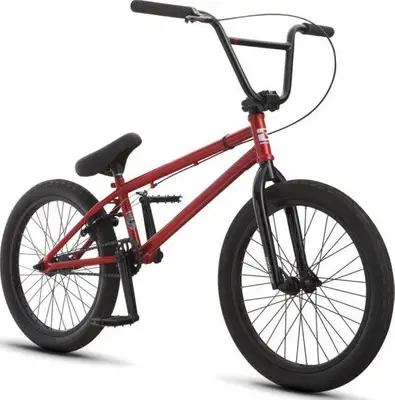

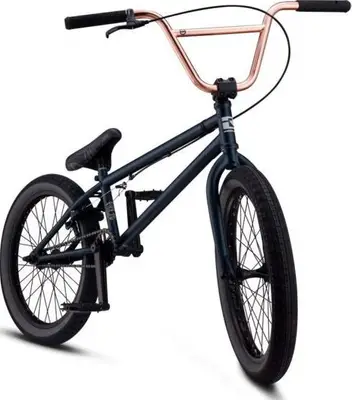

A 20″ steel frame bmx bike with rim brakes.
Compare the full range
| MSRP | $399 |
|---|---|
| Weight | 26.1 lbs |
| Frame | Steel |
| Suspension | Rigid |
| Fork | Steel |
| Wheels | 20″ Aluminum |
| Brakes | Rim |
For This Bike
3'11" +
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
| Frame | Hi-Ten with Chromo downtube, Integrated Headtube |
|---|---|
| Fork | RL Monster Chromo Steerer, Tapered leg fork |
| Bottom Bracket | Sealed Mid BB |
| Headset | Monster Integrated |
| Stem | Front Load, 50mm |
| Handlebar | Hi-Ten 9" Rise/ 28.5" Wide 12¡ Back, 1¡ Up |
| Saddle | Fat Monster Padded Combo Saddle w/25.4 Post |
| Seatpost | 25.4 Type: Rigid |
| Pedals | Monster, Sealed Bearing, Ultra Low profile Resin Platform w/Chromo Spindle |
| Grips | Monster 151 Flangeless w/Plugs |
| Crank | 100% heat treated Chromo 3pc Cranks, |
|---|---|
| Chain | KMC Z410 |
| Brakes | Tektro FX 340 Rear U Type: Rim |
| Brake Levers | Textro |
| Rims | RL spec 36h Alloy |
|---|---|
| Spokes | Black |
| Front Hub | Aluminum, Chromo 3/8" Axle |
| Rear Hub | Aluminum, Fully Sealed, Chromo 14mm Axle |
| Tires | Kenda Ticket 20 x 2.25Ó Colored Sidewalls |
Last updated April 7
