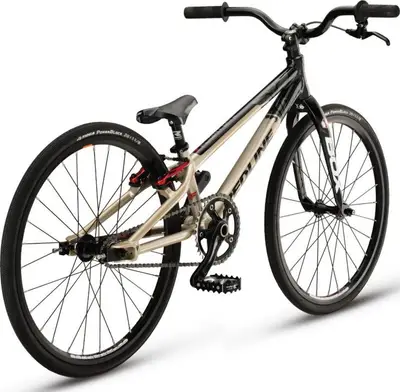

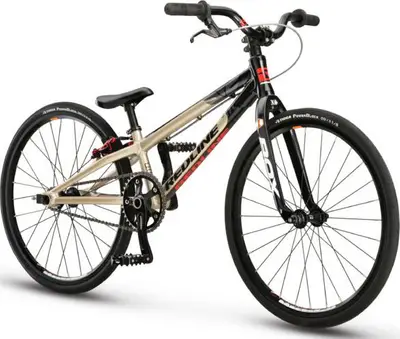

2017 Redline
Flight Mini
A 20″ steel frame bmx bike with rim brakes.
Compare the full range
| MSRP | $799 |
|---|---|
| Weight | 13.5 lbs |
| Frame | Steel |
| Suspension | Rigid |
| Fork | Carbon |
| Wheels | 20″ Aluminum |
| Brakes | Rim |
For This Bike
3'11" +
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Jun 2015 · Cyclocross Magazine
Advertisement by Clifford Lee We first reviewed the Redline Conquest Team Carbon three years ago, in Issue 15. Innovations such as fully internal cable routing, ...
| Frame | RL R6 Formed Tubing, Machined BB, Integrated 1" Headtube |
|---|---|
| Fork | BOX Mini Carbon "XS" |
| Bottom Bracket | External Sealed Euro BB |
| Headset | FSA Orbit IS 1"Sealed |
| Stem | RL Microline Forged Aluminum , Laser etched, 40mm , Cromo Allen bolts |
| Handlebar | RL Mini 6061 T-6 Aluminum, 22" W x 2.5" T, 10¡ back , 2¡ up |
| Saddle | RL Microline Integrated Saddle post combo 22.2mm |
| Seatpost | RL Microline Integrated Saddle post combo 22.2mm Type: Rigid |
| Pedals | Redline Jr. Aluminum Platform / Chromo Axle |
| Grips | Redline Mini Hex |
| Crank | RL 140mm Microline 2pc Forged 6061 Aluminum |
|---|---|
| Chain | KMC HP6L Hollow Plate |
| Brakes | Promax MV-88, 85mm , Directional cartridge pads Type: Rim |
| Brake Levers | RL Spec |
| Rims | Alienation Ankle Biter, 28h |
|---|---|
| Spokes | Stainless Steel 15G |
| Front Hub | Flight Alum SB w/Hollow Flight Axle & Race Skewer |
| Rear Hub | Flight Alum SB Cassette w/Hollow Chromo Axle |
| Tires | Tioga PowerBlock 20 x 1-1/8" |
