Redline full carbon fork with tapered steer, post style disc mount, 15mm thru axle

Redline alloy mono disc frame with tapered headtube, sliding drop outs, optional hanger for gears

Crank Brothers Cobalt 1, 31.8mm clamp, 680mm width, 8mm rise

FSA internal 1 1/8" to 1.5" sealed bearing

Alex XD Comp 32h, Double wall, Formula sealed bearing front and rear hubs

The Mono Cog AL is single speed sophistication. A new lightweight formed 6061 aluminum tubing frame with a full carbon fiber fork advance the Monocog to the highest level of performance. Shimano hydraulic disc brakes and the Crank Brothers cockpit complete the package.

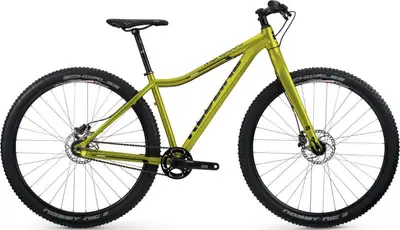

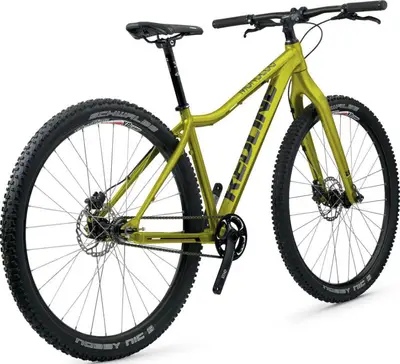

Redline Monocog Al

A 29″ aluminum frame rigid crosscountry bike with modest components.

Frame	Aluminum
Suspension	Rigid
Fork	Carbon
Wheels	29″ Aluminum
Drivetrain	Single-speed
Groupset	Truvativ
Brakes	Shimano Hydraulic Disc

Frame	Redline alloy mono disc frame with tapered headtube, sliding drop outs, optional hanger for gears BB Standard: BB86/BB92, Press Fit
Fork	Redline full carbon fork with tapered steer, post style disc mount, 15mm thru axle
Bottom Bracket	FSA bb92 pressfit
Headset	FSA internal 1 1/8" to 1.5" sealed bearing
Stem	Crank Brothers Cobalt 1, 31.8mm clamp
Handlebar	Crank Brothers Cobalt 1, 31.8mm clamp, 680mm width, 8mm rise
Saddle	Fizik Nisene mg
Seatpost	Crank Brothers Cobalt 1, 27.2mm Type: Rigid
Grips	Redline Flight flangeless lock-on, 135mm

Rear Derailleur	N/A
Front Derailleur	N/A
Crank	Truvativ AKA, 32t
Shifters	N/A shifters, Shimano M445 levers
Cassette	18T
Chain	KMC Z33
Brakes	Shimano M447, 160mm Shimano rotors Type: Shimano Hydraulic Disc

Rims	Alex XD Comp 32h, Double wall, Formula sealed bearing front and rear hubs
Tires	Schwalbe Nobby Nic, 29 x 2.25"

2015 RedlineMonocog Al

2015 Redline
Monocog Al
