2015 Redline
D680

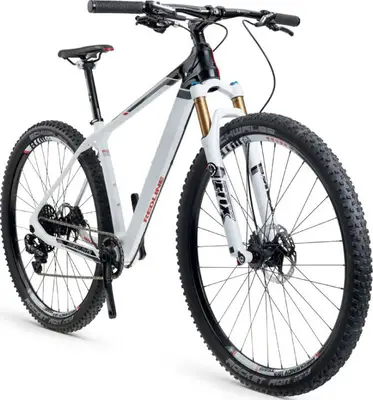

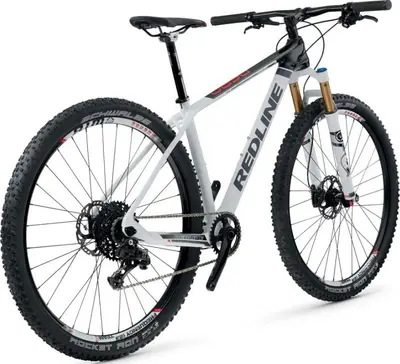

A 29″ carbon frame hardtail crosscountry bike with ultra high-end components.
| Frame | Carbon |
|---|---|
| Suspension | Hardtail, 100mm |
| Fork | Fox Float 32 |
| Wheels | 29″ Aluminum |
| Drivetrain | 1 × 11 |
| Groupset | X1 |
| Brakes | Hydraulic Disc |
For This Bike
| Frame | Full Carbon Fiber utilizing RCT Monocoque construction, internal cable routing, BB92 Press Fit bottom bracket, tapered headtube and 12 x 142mm rear spacing BB Standard: BB86/BB92, Press Fit |
|---|---|
| Fork | Fox 32 Float 29 FIT 100MM travel with CTD 15MM thru axle, tapered steerer Travel: 100mm Spring Type: Air |
| Bottom Bracket | SRAM BB92 pressfit |
| Stem | Crank Brothers Cobalt 2, 31.8mm clamp, ±6¡ rise |
| Handlebar | Crank Brothers Cobalt 2, 31.8mm clamp, 740mm width, 8mm rise |
| Saddle | Fizik Tundra |
| Seatpost | Crank Brothers Cobalt 2, 27.2mm Type: Rigid |
| Grips | Redline Flight flangeless lock-on |
| Rear Derailleur | SRAM X1 |
|---|---|
| Front Derailleur | N/A |
| Crank | SRAM X1, 34T |
| Shifters | SRAM X1, 11s rear, Shimano XT levers |
| Cassette | SRAM 1180 XG, 10-42t |
| Chain | SRAM 1130, 11s |
| Brakes | Shimano XT with ICE tech 160mm rotors Type: Hydraulic Disc |
| Rims | WTB Frequency Team, SRAM 716 front and SRAM 746 rear hubs with XD driver on rear |
|---|---|
| Tires | Schwalbe Rocket Ron EVO, 29 X 2.25" |
Last updated April 7
