Tektro Draco Hydraulic Disc with 160mm rotors

SR Suntour NEX with 63mm travel and Mechanical Lockout

6061/T6 Aluminum dual sport with hydroformed top and down tube and forged drop-outs with replaceable derailleur hanger

XLC steel Riser OD31.8mm X W640mm, 30mm rise

Integrated 1 1/8" Press in cups, Zero Stack Style

Weinman Taurus 2000 32h, double wall with eyelets, QR hubs

Kenda Small Block Eight, wire bead, 700 x 35

Dirt or street, a combo bike designed to ride on or off road. The frame is built of formed 6061 aluminum alloy tubes, joined to a Suntour suspension fork with 63mm of travel. Mountain bike features such as a wide range gearing, and powerful disc brakes rolling on wide 700c tires. The DS2 is a step up from the DS1 with improved brakes, derailleurs, shifters, and crankset.

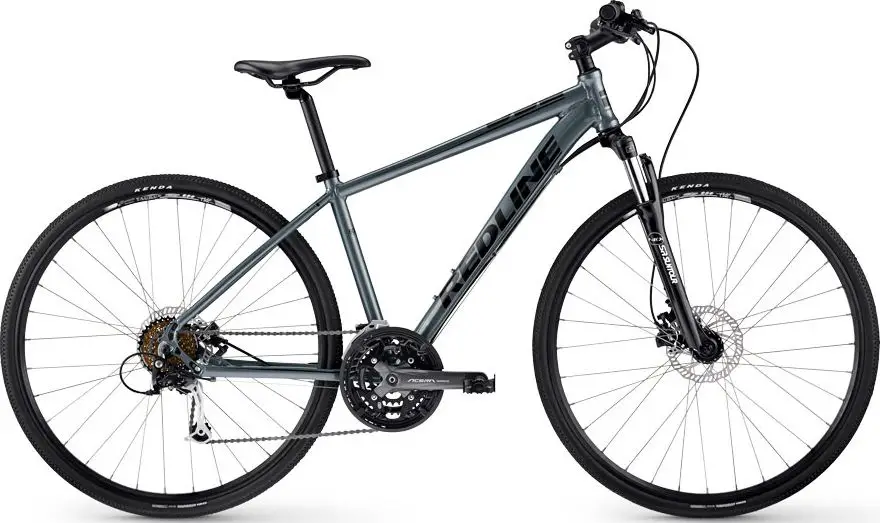

Redline DS2

An aluminum frame general road bike with mid-range components and tektro hydraulic disc brakes.

Frame	Aluminum
Wheels	700c Aluminum
Drivetrain	3 × 9
Groupset	Alivio, Acera
Brakes	Tektro Hydraulic Disc

Frame	6061/T6 Aluminum dual sport with hydroformed top and down tube and forged drop-outs with replaceable derailleur hanger
Fork	SR Suntour NEX with 63mm travel and Mechanical Lockout Spring Type: Coil
Bottom Bracket	Shimano Splined Hollow Axle 68mm
Headset	Integrated 1 1/8" Press in cups, Zero Stack Style
Stem	XLC alloy 31.8mm, 10d rise
Handlebar	XLC steel Riser OD31.8mm X W640mm, 30mm rise
Saddle	XLC standard Padding, Steel Rail
Seatpost	XLC alloy 27.2mm X 350mm width Type: Rigid
Grips	Dual Density 122mm width

Rear Derailleur	Shimano Alivio
Front Derailleur	Shimano Acera
Crank	Shimano Acera Octalink 48/36/26T w/Guard
Shifters	Shimano Alivio
Cassette	Shimano HG20 9spd 11-32
Chain	KMC Z99
Brakes	Tektro Draco Hydraulic Disc with 160mm rotors Type: Tektro Hydraulic Disc

Rims	Weinman Taurus 2000 32h, double wall with eyelets, QR hubs
Tires	Kenda Small Block Eight, wire bead, 700 x 35

2014 RedlineDS2

2014 Redline
DS2
