Fox Float 29in, 100mm travel, FIT, CTD adj, 15mm QR, 1.5 tapered

Redline full suspension frame, BB92 pressfit

FSA Internal sealed bearing, 1.5 lower, 1 1/8" upper

Novatech Flow Trail 29" Tubeless ready, 15MM QR front and 12MM through rear hub

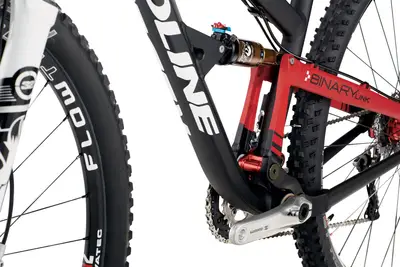

Redline’s new 29” full suspension bike for trail riding and endurance racing features a revolutionary rear suspension that lowers the center of gravity, addresses brake jack, and optimizes pedaling efficiency. This bike features a high end specification of parts and components to provide an out of the box race and riding platform unequaled in the Redline product line.

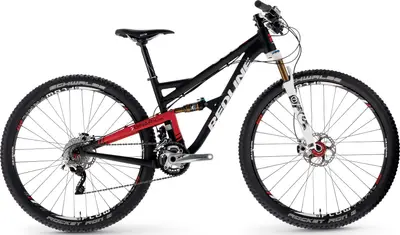

Redline D880

A 29″ full suspension crosscountry bike with high-end components and shimano xt mechanical disc brakes.

Suspension	Full, 100mm front
Fork	Fox
Shock	Fox
Wheels	29″ Aluminum
Drivetrain	2 × 10
Groupset	XT, SLX
Brakes	Shimano XT Mechanical Disc

Frame	Redline full suspension frame, BB92 pressfit BB Standard: BB86/BB92, Press Fit
Fork	Fox Float 29in, 100mm travel, FIT, CTD adj, 15mm QR, 1.5 tapered Travel: 100mm Spring Type: Air
Shock	Fox Float with CTD
Bottom Bracket	FSA press fit bb92
Headset	FSA Internal sealed bearing, 1.5 lower, 1 1/8" upper
Stem	FSA Afterburner, 31.8mm, ±6˚, black
Handlebar	FSA Afterburner 31.8mm, 740mm width
Saddle	WTB Silverado Race SL
Seatpost	FSA Afterburner 31.6MM, 350MM length Type: Rigid
Grips	Redline Flight flangeless lock-on

Rear Derailleur	Shimano XT
Front Derailleur	Shimano SLX
Crank	Shimano XT Hollowtech 2 10sp
Shifters	Shimano XT 2X10sp
Cassette	Shimano SLX 10s, 11-34t
Chain	KMC X10
Brakes	Shimano XT Type: Shimano XT Mechanical Disc

Rims	Novatech Flow Trail 29" Tubeless ready, 15MM QR front and 12MM through rear hub
Tires	Schwalbe Rocket Ron, 29X2.25, Folding

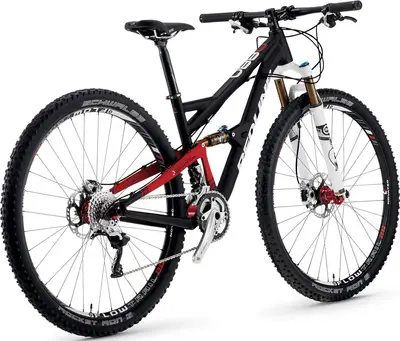

2014 RedlineD880

2014 Redline
D880
