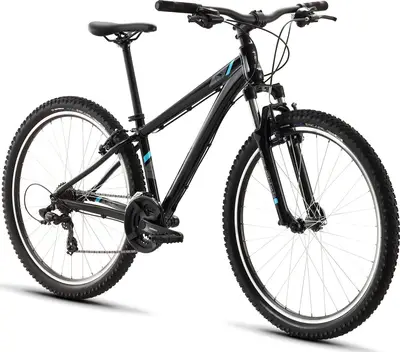

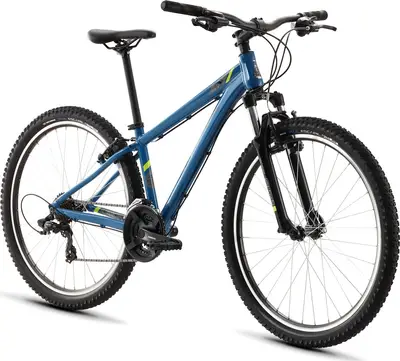

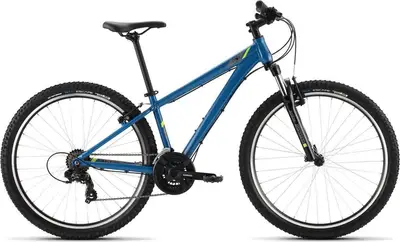

2019 Raleigh

Talus 1

A 650b aluminum frame fitness bike with mid-range components and rim brakes.
Compare the full range

MSRP$389
FrameAluminum
SuspensionHardtail, 100mm
ForkSuntour XCE
Wheels650b Aluminum
Drivetrain3 × 7
GroupsetTourney, Shimano
BrakesRim
Where to Buy
Similar Bikes

For This Bike

Accessories
Top Comparison
Insights
Ride Feel

Based on frame geometry and build specs.

Rider Position
relaxedaggressive
Talus 1
Other Fitness bikes
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

25 mph

Talus 1

35 mph

Similar Bikes

Highest gear

(descending)

Sizing
XS

5'1" – 5'6"

SM

5'4" – 5'9"

MD

5'7" – 6'0"

LG

5'10" – 6'3"

XL

6'0" – 6'5"

🐐 Estimated

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Geometry
99 Spokes on YouTube99 Spokes on YouTube
Specs
Build
Frame

Raleigh Custom Formed Aluminum Alloy Frame with Progressive wheel Sizing (27.5" - XS,S) (29" - M,L,XL)

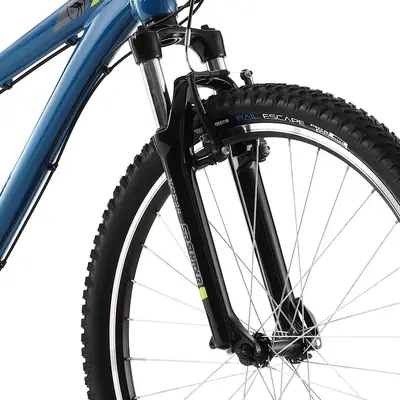

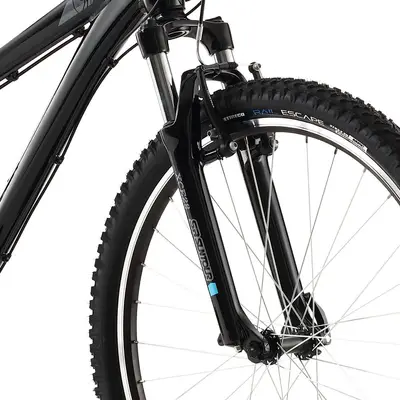

Fork

SR Suntour XCE-28 100mm of Travel with Pre-Load Adjuster

Travel100mm

Spring TypeCoil

Bottom Bracket

Sealed Cartridge Bearing

Headset

1-1/8 Semi Integrated

Stem

Alloy MTB 31.8 Bar Bore Stem

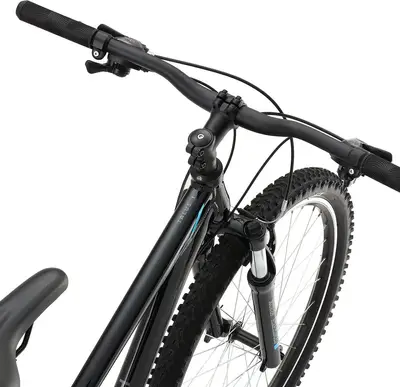

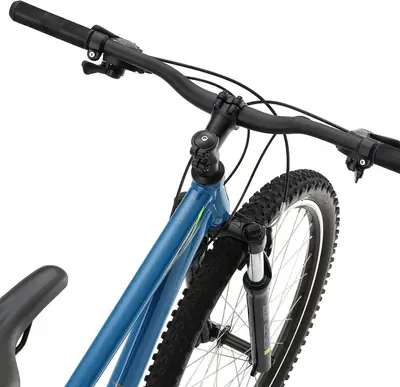

Handlebar

Raleigh Alloy 31.8mm Bar, 25mm Rise

Saddle

Raleigh MTB Saddle

Seatpost

Alloy 27.2 Post with 15mm Offset

TypeRigid

Pedals

Wellgo Plastic Body

Grips

Raleigh MTB Grip

Groupset

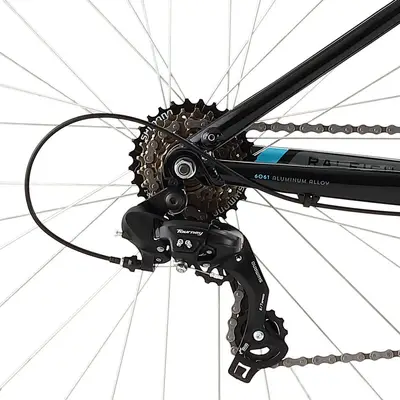

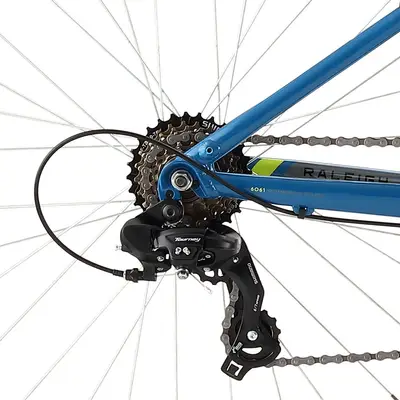

Rear Derailleur

Shimano Tourney TY300

Front Derailleur

Shimano Tourney TY500

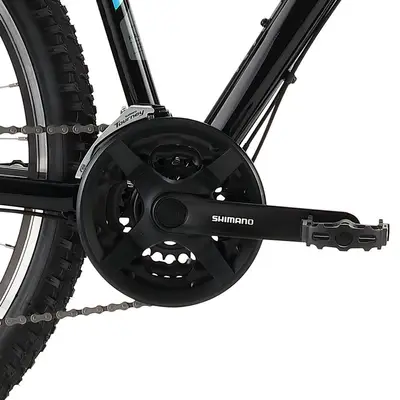

Crank

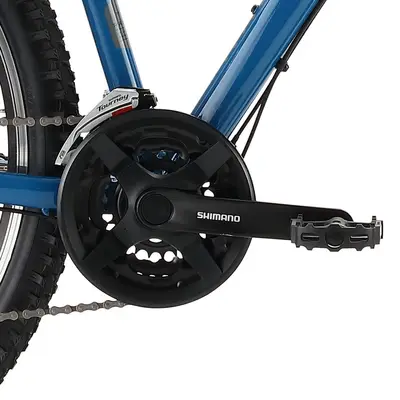

Shimano Tourney TY301, 42/34/24t

Shifters

Shimano EF-41 3x7 Speed Trigger Shifter

Cassette

Shimano TZ500 14-28 Tooth Freewheel

Chain

KMX Z-7

Brakes

Tektro 855AL V-Brake

TypeRim

Brake Levers

Shimano EF41 with 2-finger lever

Wheels
Rims

Alloy MTB DBM-2 Doublewall, 32 hole

Spokes

Steel J-Bend

Front Hub

Formula OV-31FQR

Rear Hub

Formula OV-31R

Tires

Vee Tire Co. Rubber Rail Escape, 27.5x2.25 or 29x2.25"
