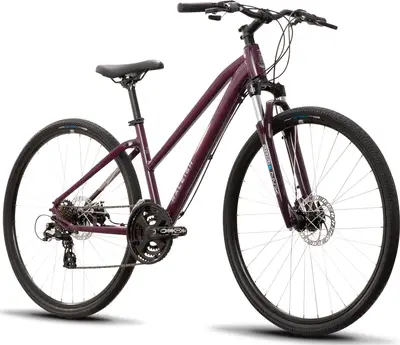

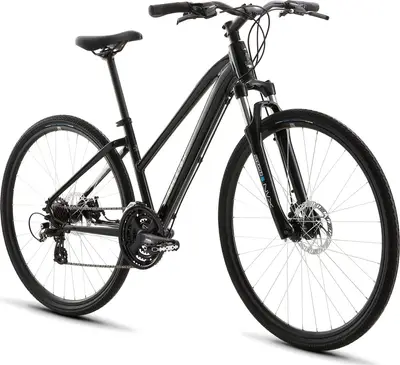

2019 Raleigh
Route 1 Step Thru
A 700c aluminum frame hybrid bike with modest components and mechanical disc brakes.
Compare the full range
Manufacturer Price
$499| Frame | Aluminum |
|---|---|
| Suspension | Hardtail, 75mm |
| Fork | Suntour NVX |
| Wheels | 700c Aluminum |
| Drivetrain | 3 × 7 |
| Groupset | Altus, Tourney |
| Brakes | Mechanical Disc |
For This Bike
| Frame | Raleigh Custom Formed Aluminum Alloy Tubing |
|---|---|

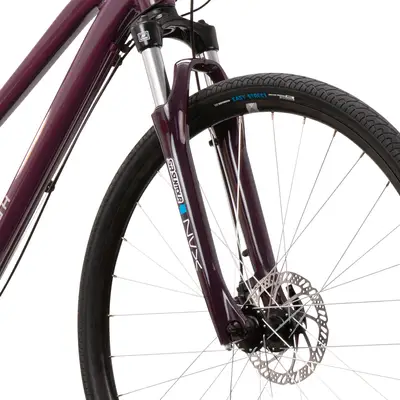

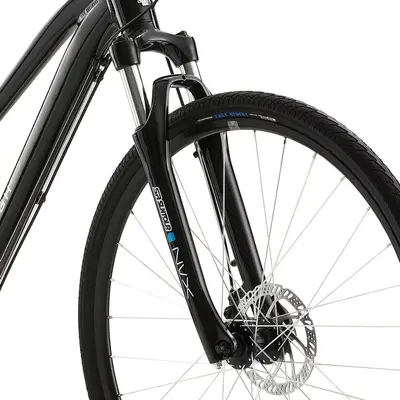

| Fork | SR Suntour NVX-DS, 75mm Travel w/Preload Adjuster Travel: 75mm Spring Type: Coil |
| Bottom Bracket | Sealed Cartridge Bearing |
| Headset | Semi Integrated 1-1/8" |
| Stem | Alloy, 15-deg Rise, 25.4 Bore |

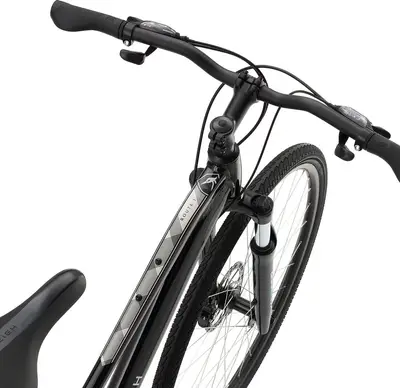

| Handlebar | Alloy, 30mm Rise, 9 deg Back, 680mm (660mm on step over models) |
| Saddle | Raleigh City Series, Steel Rails |
| Seatpost | Alloy Micro Adjust 27.2x350mm Type: Rigid |
| Pedals | Wellgo LU-C29G, Alloy Body and Cage, Chromoly Spindle |
| Grips | Raleigh Comfort |

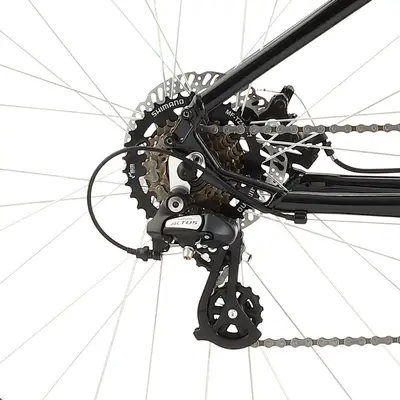

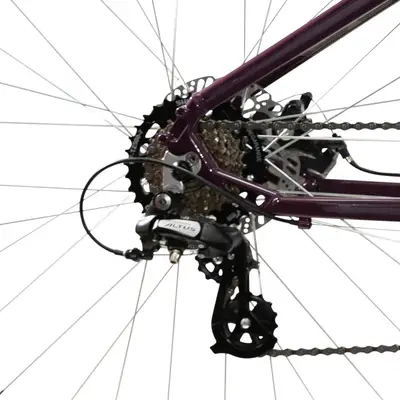

| Rear Derailleur | Shimano Altus M310 |
|---|---|
| Front Derailleur | Shimano Tourney TY510 |

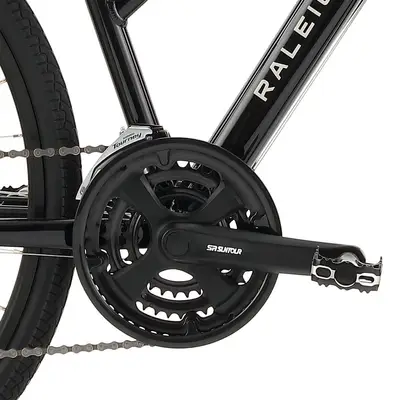

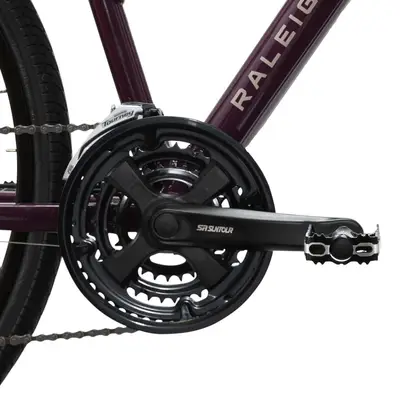

| Crank | SR Suntour XCC-T208, 28/38/48t w/Chainguard |
| Shifters | Shimano EF500 3x7 Speed Trigger Shifter |
| Cassette | Shimano 7spd (14-34t) |
| Chain | KMC Z7 |
| Brakes | Tektro MD-M280 Mechanical Disc w/160mm Rotors Type: Mechanical Disc |
| Brake Levers | Shimano ST-EF500 |
| Rims | Alloy, DDM-1 Double Wall Disc |
|---|---|
| Spokes | 14g Stainless Steel |
| Front Hub | Formula Alloy Disc QR 32h |
| Rear Hub | Formula Alloy Disc QR 32h |
| Tires | Vee Tire Co. Easy Street, 700x42c |
