2019 Raleigh

Redux 1

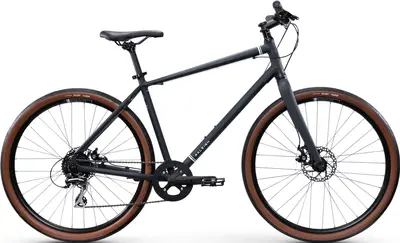

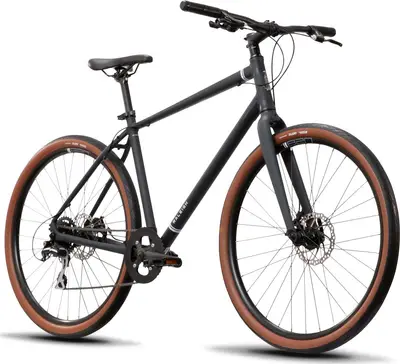

A 650b aluminum frame general urban bike with modest components and mechanical disc brakes.
Compare the full range

MSRP$549
FrameAluminum
SuspensionRigid
ForkAluminum
Wheels650b Aluminum
Drivetrain1 × 8
GroupsetAcera, Altus
BrakesMechanical Disc
Where to Buy
Similar Bikes

For This Bike

Accessories
Top Comparison
Insights
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

30 mph

Redux 1

30 mph

Similar Bikes

Highest gear

(descending)

Sizing
SM

5'2" – 5'8"

MD

5'6" – 5'11"

LG

5'10" – 6'3"

XL

6'1" – 6'7"

🐐 Estimated

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Reviews
Bicycling
Shred City Streets on the Cheap and Sturdy Raleigh Redux 1

Mar 2019

The best $550, grab-and-go-anywhere commuter you can get your hands on right now.

Highs
  • Super affordable

  • Able to handle even the roughest detours

Lows
  • Racks, fenders, and kickstand are up to you

Read Review

Geometry
99 Spokes on YouTube99 Spokes on YouTube
Specs
Build
Frame

Raleigh Custom AL-6061 Custom Formed Tubing

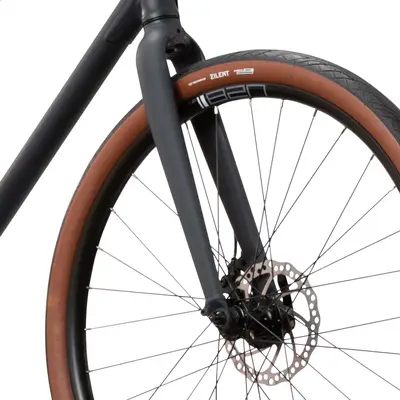

Fork

Alloy Blades, w/Post Mount Disc, Internal Cable Routing

Bottom Bracket

Sealed Cartridge Bearing

Headset

1 1/8"Internal Cartridge Bearing

Stem

Forged Aluminum Alloy, 31.8mm Bar Clamp

Handlebar

Alloy, 31.8, 15mm Rise, 680mm Wide

Saddle

Redux Saddle

Seatpost

Alloy Micro Adjust, 27.2 x 350/400mm

TypeRigid

Pedals

Alloy Body, Cromo Spindle

Grips

MTB Lock-On with End Plugs

Groupset

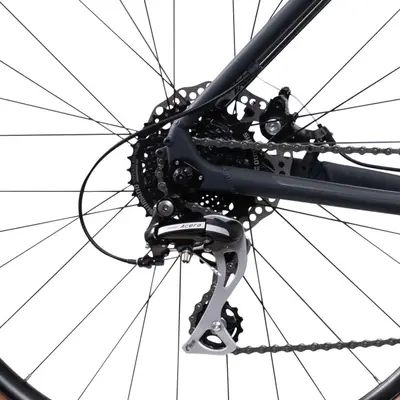

Rear Derailleur

Shimano Acera M360

Crank

Alloy Forged 3PC 104BCD, 40t

Shifters

Shimano M310 8-speed Trigger Shifter, Right Only

Cassette

Shimano 8 Speed, 11-34 Cassette

Chain

KMC 8sp

Brakes

Tektro MD-M280 Mechanical Disc

TypeMechanical Disc

Brake Levers

Tektro ML330

Wheels
Rims

Alloy DDM-5, 32h, 27.5", 28mm Wide Double Wall

Spokes

14g Stainless Steel w/Brass Nipples

Front Hub

Alloy Quick Release Disc, 32 Hole

Rear Hub

Alloy Quick Release Disc, 32 Hole

Tires

Vee Tire Co. Zilent 27.5x47c, Wire Bead, 30 TPI

Rider Notes
