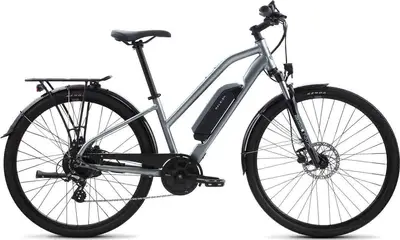

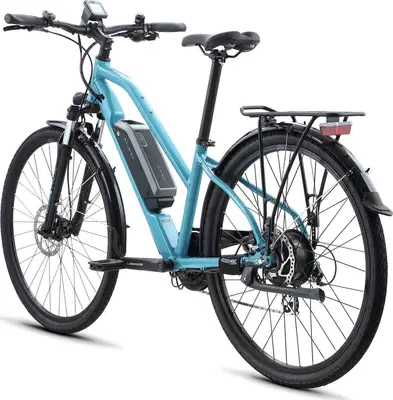

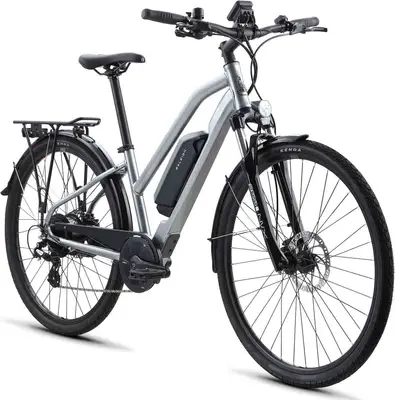

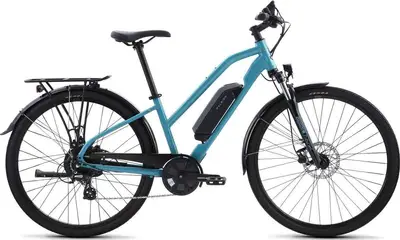

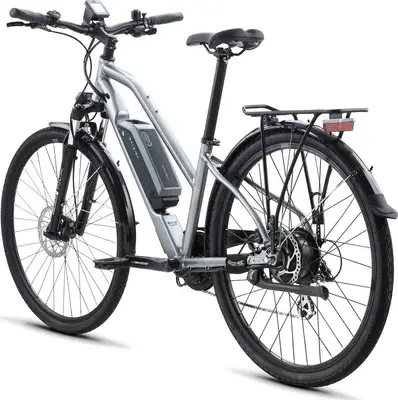

2019 Raleigh

Misceo iE Step Thru

A 700c aluminum frame hybrid e-bike with modest components and hydraulic disc brakes.
Compare the full range

MSRP$1,799
FrameAluminum
SuspensionHardtail, 75mm
ForkSuntour
Wheels700c Aluminum
GroupsetAltus, Suntour
Motor250W 60Nm hub-drive
Battery410Wh
BrakesHydraulic Disc
Where to Buy
Similar Bikes

For This Bike

Accessories
Top Comparison
Reviews
Electric Bike Review
Raleigh Misceo iE Review

Nov 2019

Price: $1799.00 | Model Year: 2019 | Upgraded for 2019, the Raleigh Misceo IE is an affordable and lightweight commuter with a lot of included goodies, an SR Suntour rear hub-motor, two frame styles and three color options, and an entry level price point

Observations
  • Upgraded for 2019, the Raleigh Misceo IE is an affordable and lightweight commuter with a lot of included goodies, an SR Suntour rear hub-motor, two frame styles and three color options, and an entry level price point

  • 8 speed Shimano Altus, hydraulic disc brakes, integrated fenders, battery integrated lights, adjustable rear rack, adjustable kickstand, front suspension fork, bottle cage bosses, and a clean minimalist look

  • The SR Suntour hub motor is light and efficient while offering multiple modes of assist, the display is removable and shows battery percentage left, the battery can be charged on or off the bike, and everything is impressively lightweight at 55.1lbs

  • No throttle and torque only pedal assist means you may have to press a little harder to get the pedals activated, a hinderance especially if you are stopped and facing a hill, there are a lot of entry level components which may not catch your eye if you're looking for high refinement, this does keep the cost down though at a very affordable $1,799

Read Review

Geometry
99 Spokes on YouTube99 Spokes on YouTube
Specs
Build
Frame

Lightweight Hyrdoformed 7005 Alloy, Internal Cable Routing

Fork

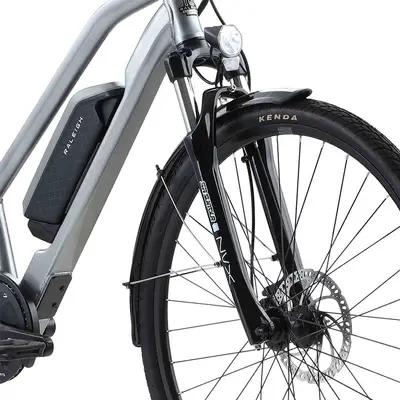

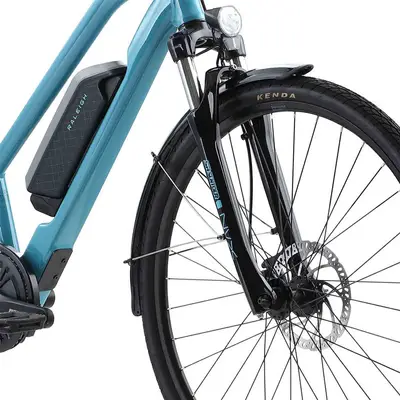

SR Suntour NVS-DS Suspension Fork, 75mm Travel

Travel75mm

Headset

Semi-Integrated, Sealed Mechanism

Stem

Raleigh Aluminum Alloy, 7 Degree Rise

Handlebar

Raleigh Alloy Bars, 15mm Rise, 9 Degree Bend

Saddle

Raleigh Custom Ergo Performance

Seatpost

Raleigh Aluminum Alloy, Forged Head, 350mm

TypeRigid

Pedals

Resin Body Urban, Black

Grips

Raleigh Comfort Control

Groupset
Rear Derailleur

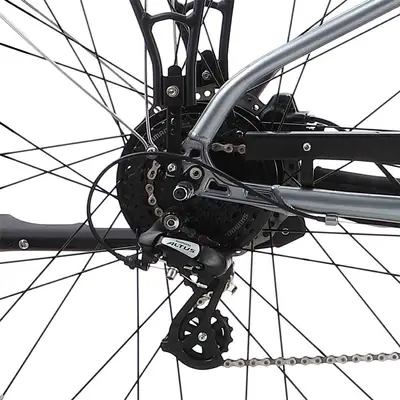

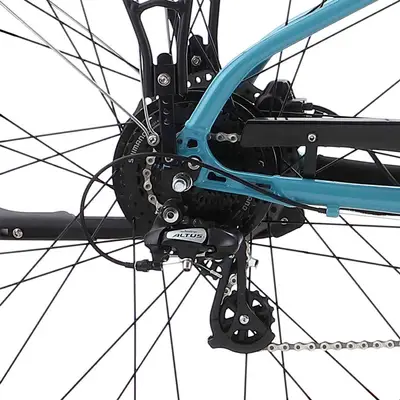

Shimano Altus RD-M310, 8 Speed

Crank

SR Suntour Alloy Black, 170mm, with Torque, Cadence and Speed Sensor

Shifters

Shimano Altus SL-M315, 8 Speed

Cassette

42 Tooth w/Double Chainguard

Chain

KMC X8

Brakes

Tektro Hydraulic Disc, 180mm Rotors

TypeHydraulic Disc

Brake Levers

Tektro 2 Finger Lever

Wheels
Rims

700c Alloy Double Wall, Anodized Black, 36 Hole

Spokes

Black w/Silver Nipples

Front Hub

Formula, 36 Hole, W/QR

Rear Hub

SR Suntour E25 Performance Rear Hub, 36 Hole, Bolt-on

Tires

Kenda K-1172, Blackwall, 700x45c

Electric Components
Motor

SR Suntour E25 Performance Rear Hub Brushless DC Motor, 250W (400W max), 60Nm Torque

Battery

SR Suntour Li-Ion 410Wh Downtube Mounted, w/Lockset

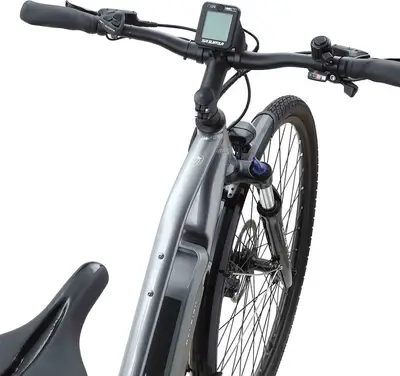

Display

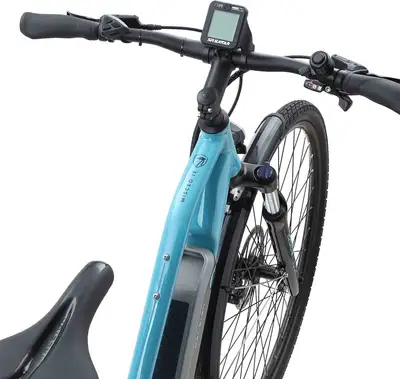

SR Suntour Multi-Function LED Display

Rider Notes
