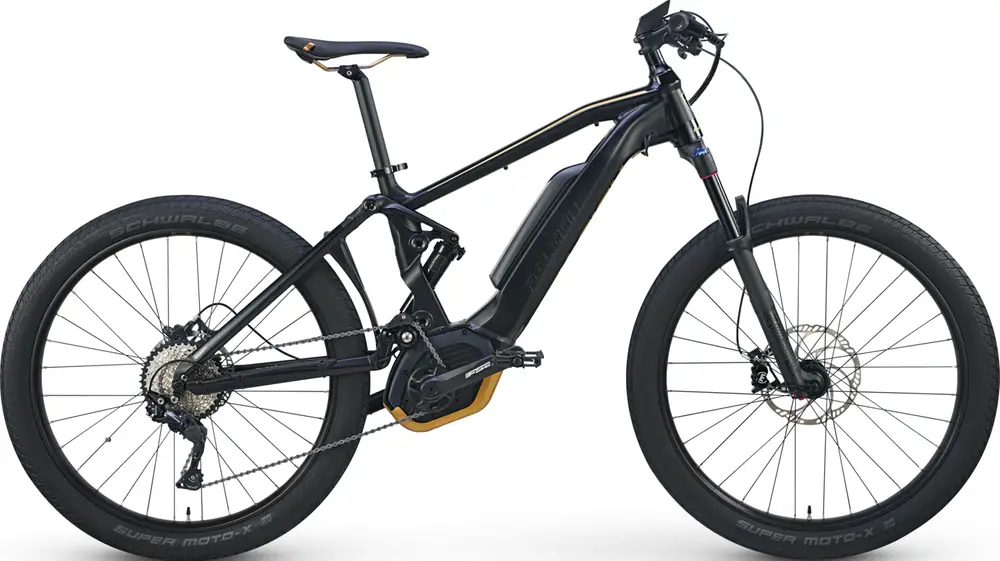

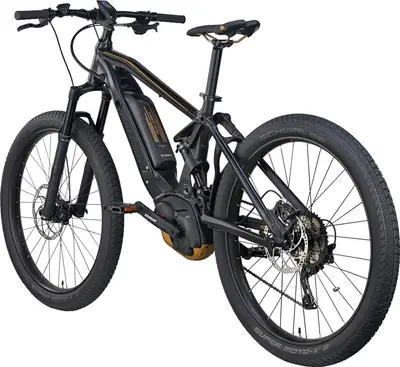

Lore DS iE Step Over
A 650b aluminum frame hybrid e-bike with upper mid-range components and hydraulic disc brakes.
Compare the full range
Manufacturer Price
$4,599Frame | Aluminum |
---|---|
Suspension | Full, 130 / 130mm |
Fork | RockShox Reba |
Wheels | 650b Aluminum |
Drivetrain | 1 × 10 |
Groupset | Deore, FSA |
Motor | Bosch 350W 63Nm mid-drive |
Battery | Bosch 500Wh |
Brakes | Hydraulic Disc |
For This Bike
Jan 2019

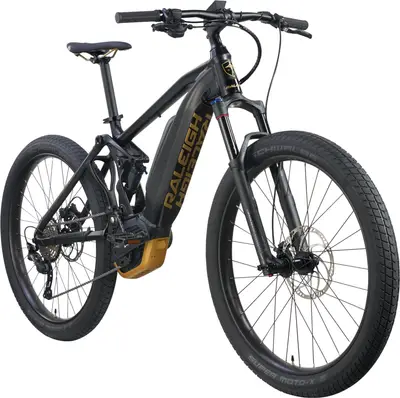

Price: $4599.00 | Model Year: 2019 A stealthy full suspension 28mph urban electric bike with comfortable plus sized tires, sturdy thru-axles with wider Boost hub spacing, lightweight 130mm air suspension from RockShox. Available in three frame sizes and designed with a lower top tube for approachability, you could swap the slick tires out for knobby and use this as a cross country electric mountain bike. A stealthy full suspension 28mph urban electric bike with comfortable plus sized tires, sturdy thru-axles with wider Boost hub spacing, lightweight 130mm air suspension from RockShox.
A stealthy full suspension 28mph urban electric bike with comfortable plus sized tires, sturdy thru-axles with wider Boost hub spacing, lightweight 130mm air suspension from RockShox
Available in three frame sizes and designed with a lower top tube for approachability, you could swap the slick tires out for knobby and use this as a cross country electric mountain bike

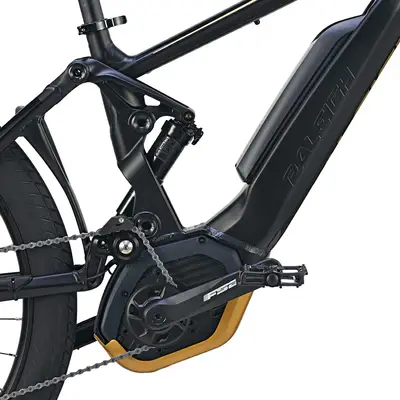

High performance Bosch Speed motor with shift detection, larger PowerPack 500 battery provides excellent range while remaining lightweight, great 10-speed Shimano Deore drivetrain with one-way clutch to reduce chain bounce, upgraded Bosch Kiox display panel

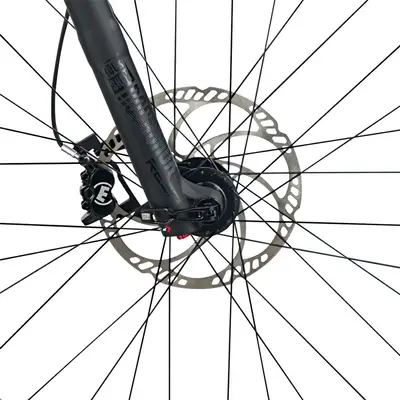

Powerful and consistent Magura hydraulic disc brakes with larger 203mm front rotor and quad-piston calipers for consistency and cooling at high speed, great locking ergonomic grips, solid Wellgo platform pedals, wider 31.6mm seat post for easy dropper post upgrade, matching black accents all around (including rims, spokes, and hubs)
Frame | Multi Formed Aluminum Alloy 6061 T6 Dual Suspension, 4 Link All Mountain Design. 130mm of Rear Wheel Travel. Semi Integrated Battery Mount BB Standard: Bosch, Press Fit |
---|---|
Fork | Rock Shox Reba RL Solo Air w/Boost, 130mm Travel Travel: 130mm Spring Type: Air |
Shock | Rock Shox Monarch RT3 130mm Travel Travel: 130mm Spring Type: Air |
Bottom Bracket | Bosch, press-fit |
Headset | Integrated, Sealed Bearing |
Stem | Raleigh Aluminum Alloy, 3d Forged |
Handlebar | Raleigh T-6061 Aluminum Alloy |
Saddle | Raleigh Custom Ergo Performance |
Seatpost | Raleigh Aluminum Alloy, Forged Head 350mm Type: Rigid |
Pedals | Alloy, Sealed Bearing |
Grips | Raleigh Ergo Comfort Control |

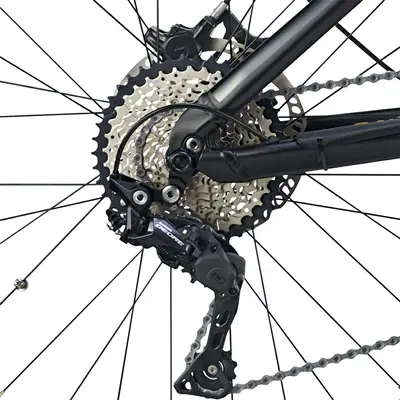

Rear Derailleur | Shimano Deore M610, SGS |
---|---|
Crank | FSA Forged Alloy for Bosch System |
Shifters | Shimano Deore SL-M6000, 10 Speed |
Cassette | FSA Forged Spider, 20 tooth w/chainguard, steel |
Chain | KMC x10e EPT, Ebike Specific |
Brakes | Magura MT Trail Sport Fifty4, 4 Piston Front 203mm Rotor, 4 Piston Rear 180mm Rotor Type: Hydraulic Disc |
Brake Levers | Magura Fifty4, HC 2 Finger |
Rims | Aluminium 27.5", Thru axle, Disc Specific, 32 Hole |
---|---|
Spokes | Black w/Silver Nipples |
Front Hub | Formula, Sealed Bearing, Thru Axle, Boost 110, 32 Hole |
Rear Hub | Formula, Sealed Bearing, Thru Axle, Boost 148, 32 Hole |

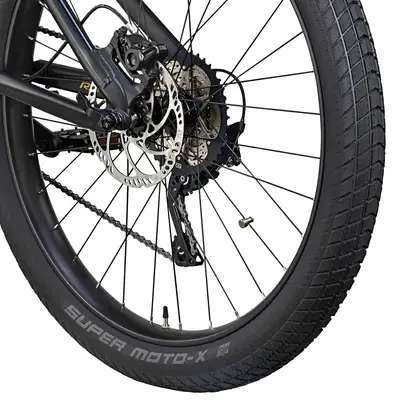

Tires | 27.5" x 2.8" Schwalbe Super Moto-X |

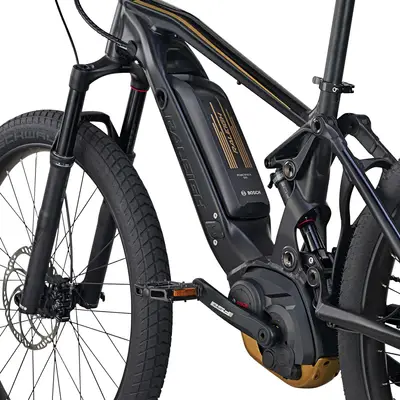

Motor | Bosch Performance Speed, 350W, 28MPH, Made in EU |
---|---|
Battery | Bosch Powerpack 500Wh, DT Mount |

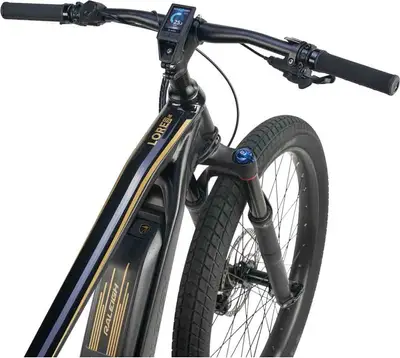

Display | Bosch Kiox On-Board Computer |
