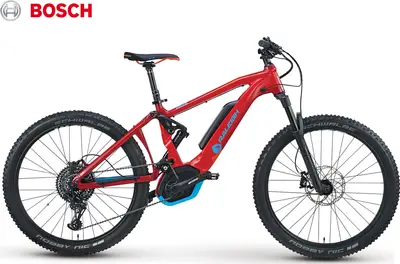

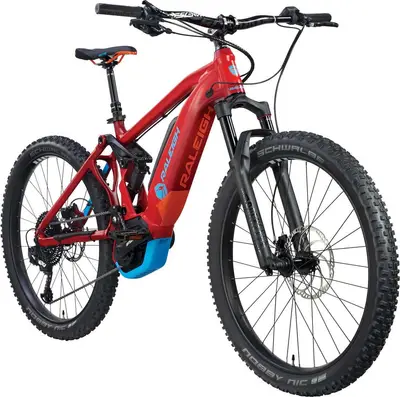

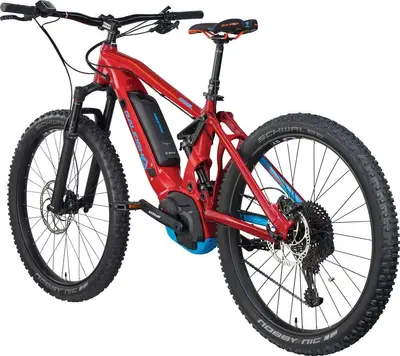

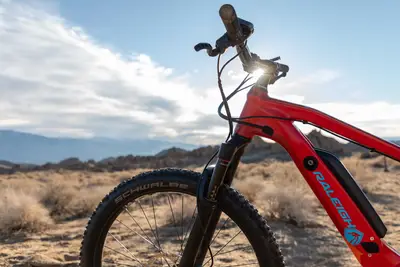

2019 Raleigh

Kodiak Pro iE

A 27.5″ aluminum frame full suspension trail e-bike with high-end components.
Compare the full range

Manufacturer Price

$5,499
FrameAluminum
SuspensionFull, 130 / 130mm
ForkRockShox Pike RC
ShockRockShox Monarch RT3
Wheels27.5″ Aluminum
Drivetrain1 × 8
GroupsetEX1
MotorBosch 250W 75Nm mid-drive
BatteryBosch 500Wh
BrakesMagura MT5 Hydraulic Disc
SeatpostDropper
View on raleighusa.comLearn about Raleigh
Add to Comparison
Shop with an Expert at Upway
Where to Buy
Similar Bikes
Top Comparison

View more similar bikes →

Insights
Ride Feel

Based on frame geometry and build specs.

Terrain
easyextreme
Handling
nimblestable
Kodiak Pro iE
Other Trail bikes
Reviews
Bicycling
The 2019 Raleigh Kodiak Pro IE Takes the Ache Out of Mountain Biking

Sep 2018 · Riley Missel

This e-mountain bike will get you to the top of the mountain quickly and down the descent smoothly.

Read Review

Geometry
Specs
Build
Frame

Multi Formed Aluminum Alloy 6061 T6 Dual Suspension, 4 Link All Mountain Design. 130mm of Rear Wheel Travel.

Fork

Rock Shox Pike RC 130mm Solo Air

Travel: 130mm

Spring Type: Air

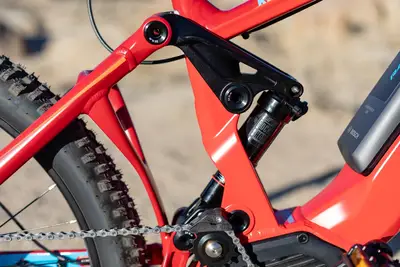

Shock

Rock Shox Monarch RT3

Travel: 130mm

Headset

FSA Orbit w/Integrated, Sealed Bearing and Carbon Fiber Top Cap

Stem

SRAM Descendant, 50mm, Annodized Black

Handlebar

SRAM Trivativ Descendant, Alloy, 760mm Wide, 20mm Rise, Annodized Black

Saddle

WTB Volt Pro w/Cromoly Rails

Seatpost

RockShox Reverb Dropper - w/Remote

Type: Dropper

Pedals

Alloy Cage w/Sealed Bearings and Crmo Axles

Grips

WTB w/PadLoc Wedge Technology

Groupset
Rear Derailleur

SRAM EX1, Wide Range, Roller Clutch

Crank

FSA Forged Alloy, 170mm Annodized Black

Shifters

SRAM EX1 eMTB specific 8 Speed

Cassette

FSA Forged Spider, 18 Tooth w/Chainguard, Steel

Chain

KMC X11e, Ebike Specific

Brakes

Magura MT5N, 4 Piston Calipers w/203mm Front Rotor & 180mm Rear Rotor

Type: Magura MT5 Hydraulic Disc

Brake Levers

Magura, HC One Finger

Wheels
Rims

WTB Scraper 27.5", 40mm ID, Disc Specific, 32 Hole, Tubeless Ready

Spokes

Black w/Silver Brass Nipples

Front Hub

Formula, Sealed Bearing, Thru Axle, Boost 110, 32 Hole

Rear Hub

Formula, Sealed Bearing, Thru Axle, Boost 148, eMTB Specific, 32 Hole

Electric Components
Motor

Bosch Performance CX, 250W (600 max), 75Nm Torque, 20 mph

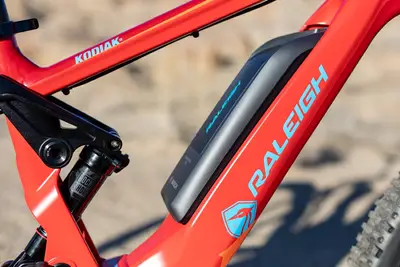

Battery

Bosch Powerpack 500Wh, DT Mount

Display

Bosch Purion Performance Line
