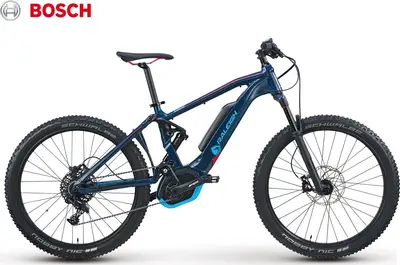

2019 Raleigh

Kodiak iE

A 27.5″ aluminum frame full suspension trail e-bike with upper mid-range components.
Compare the full range

Manufacturer Price

$4,299
FrameAluminum
SuspensionFull, 130 / 130mm
ForkRockShox Reba
ShockRockShox Monarch RT3
Wheels27.5″ Aluminum
Drivetrain1 × 11
GroupsetNX, FSA
MotorBosch 250W 75Nm mid-drive
BatteryBosch 500Wh
BrakesHydraulic Disc
View on raleighusa.comLearn about Raleigh
Add to Comparison
Shop with an Expert at Upway
Where to Buy
Similar Bikes

For This Bike

Accessories
Top Comparison

View more similar bikes →

Insights
Ride Feel

Based on frame geometry and build specs.

Terrain
easyextreme
Handling
nimblestable
Kodiak iE
Other Trail bikes
Reviews
Bicycling
The 2019 Raleigh Kodiak Pro IE Takes the Ache Out of Mountain Biking

Sep 2018

This e-mountain bike will get you to the top of the mountain quickly and down the descent smoothly.

Read Review

Geometry
99 Spokes on YouTube99 Spokes on YouTube
Specs
Build
Frame

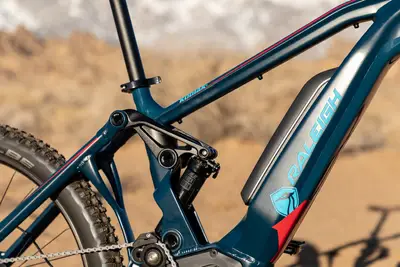

Multi Formed Aluminum Alloy 6061 T6 Dual Suspension, 4 link All Mountain Design. 130mm of Rear Wheel Travel.

Fork

Rock Shox REBA 130mm Solo Air

Travel: 130mm

Spring Type: Air

Shock

Rock Shox Monarch RT3

Travel: 130mm

Spring Type: Air

Headset

Integrated, Sealed Bearing

Stem

Raleigh Aluminum Alloy, 3D Forged, +/-7 Degree

Handlebar

Raleigh Flat Bar, 6061 Aluminum Alloy

Saddle

Raleigh Custom Ergo Performance

Seatpost

Raleigh Aluminum Alloy, Forged Head, 350mm

Type: Rigid

Pedals

Alloy Cage w/Sealed Bearings and Crmo Axles

Grips

Raleigh Ergo Comfort Control

Groupset
Rear Derailleur

SRAM NX, Long Cage, Roller Clutch

Crank

FSA Forged Alloy, 170mm Annodized Black

Shifters

SRAM NX 11 Speed

Cassette

FSA Forged Spider, 18 Tooth w/Chainguard, Steel

Chain

KMC x11ePT, Ebike Specific

Brakes

Magura Fifty4, 4 Piston Front 203mm Rotor, 2 Piston Rear 180mm Rotor

Type: Hydraulic Disc

Brake Levers

Magura, HC Carbon Levers

Wheels
Rims

27.5", 45mm ID, Disc Specific, Tubeless Ready

Spokes

Black w/Silver Brass Nipples

Front Hub

Formula, Sealed Bearing, Thru Axle, Boost 110, 32 Hole

Rear Hub

Formula, Sealed Bearing, Thru Axle, Boost 148, 32 Hole

Electric Components
Motor

Bosch Performance CX, 250W (600 max), 75Nm Torque, 20 mph

Battery

Bosch Powerpack 500Wh, DT Mount

Display

Bosch Purion Performance Line
