2018 Raleigh
Tokul 3

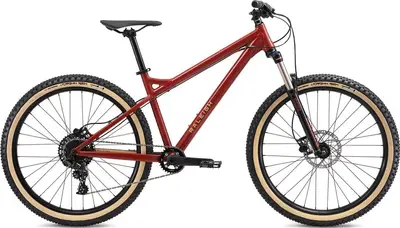

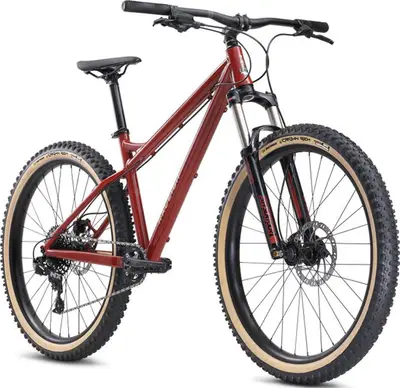

A 27.5″ aluminum frame hardtail trail bike with upper mid-range components.
| MSRP | $1,499 |
|---|---|
| Frame | Aluminum |
| Suspension | Hardtail, 120mm |
| Fork | Suntour XCR Air |
| Wheels | 27.5″ Aluminum |
| Drivetrain | 1 × 11 |
| Groupset | NX |
| Brakes | Hydraulic Disc |
For This Bike
5'2" – 5'8"
5'6" – 5'11"
5'10" – 6'3"
6'1" – 6'7"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
| Frame | AL-6061 SL Custom Butted Aluminum, Tapered HT, 148x12 Thru, IS Disc Mount |
|---|---|

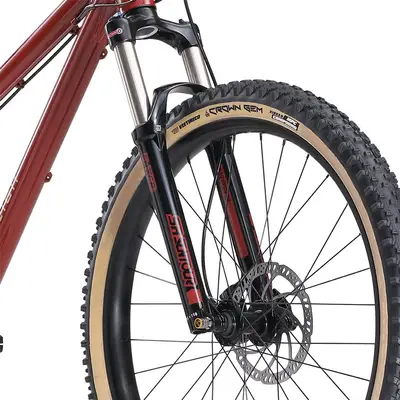

| Fork | SR Suntour XCR-32 Air, 27.5+, 120mm, Lock Out/Rebound, 15mm thru Travel: 120mm Spring Type: Air |
| Bottom Bracket | External Bearings |
| Headset | FSA IS-3 45deg upper, NO.11N Zerostack Lower, 1-1/8" |
| Stem | Raleigh 3D Forged Alloy, 60mm |

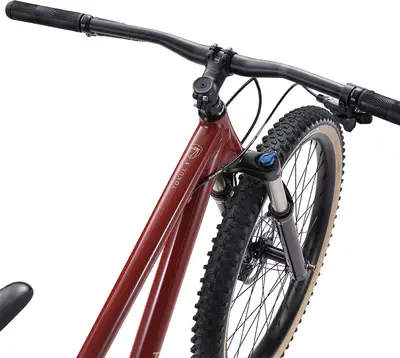

| Handlebar | Raleigh 200 Series 31.8, 15mm Rise, Width:720/720/740/740mm |
| Saddle | Raleigh Mountain Saddle, 140mm wide |
| Seatpost | Raleigh 100 Series, Dual Bolt, 30.9x350mm Type: Rigid |
| Pedals | Wellgo Alloy Pedals |
| Grips | Raleigh Closed-end Single Lock Ring |

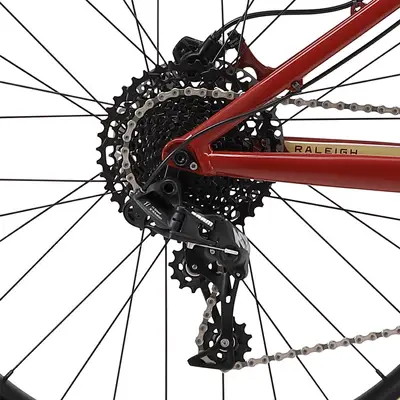

| Rear Derailleur | SRAM NX 11spd |
|---|---|

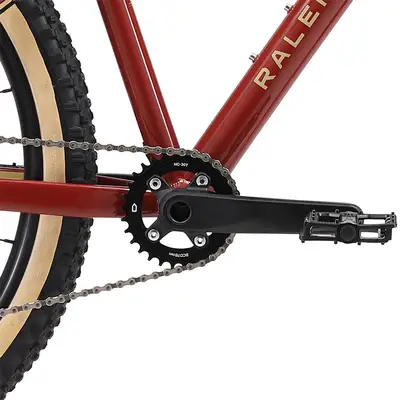

| Crank | Forged 2pc 24mm spindle, w/ Narrow Wide 30t ring |
| Shifters | SRAM NX trigger |
| Cassette | SRAM PG1130 (11-42t) 11spd |
| Chain | SRMA PC1130 |
| Brakes | Hydraulic Disc Type: Hydraulic Disc |
| Brake Levers | Tektro Auriga, 2-Finger Hydraulic |
| Rims | Weinmann U50 TL, 27.5", 32h, 50mm wide |
|---|---|
| Spokes | 14g Stainless Steel, w/ Brass Nipples |
| Front Hub | Joytech Alloy Disc QR 32h, 110x15mm Thru |
| Rear Hub | Joytech Alloy Disc,148x12 QR, 32h |
| Tires | Kenda Havoc 27.5x2.8 |
