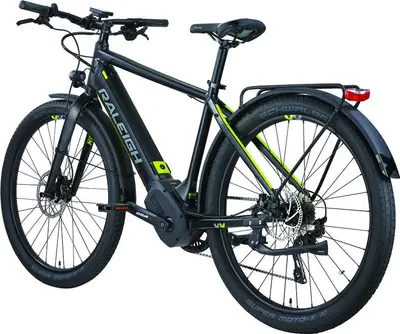

2018 Raleigh
Redux iE Step Over

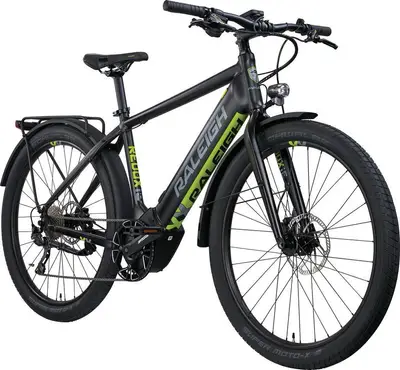

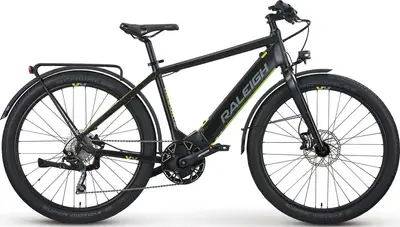

A 650b aluminum frame commuter e-bike with upper mid-range components and hydraulic disc brakes.
Compare the full range
Manufacturer Price
$3,749| Frame | Aluminum |
|---|---|
| Suspension | Rigid |
| Fork | Aluminum |
| Wheels | 650b Aluminum |
| Drivetrain | 1 × 10 |
| Groupset | Deore |
| Motor | Brose 250W mid-drive |
| Battery | 497Wh |
| Brakes | Hydraulic Disc |
For This Bike
5'2" – 5'7"
5'6" – 5'11"
5'9" – 6'2"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Apr 2017
Price: $3199.00 | Model Year: 2017 A sleek, quiet, all-black, speed-pedelec with excellent weight distribution and smooth quiet power transfer, 10-speed drivetrain and powerful hydraulic disc brakes to match. Stiff thru-axles and a rigid Aluminum alloy fork are balanced out by fatter 2.0
A sleek, quiet, all-black, speed-pedelec with excellent weight distribution and smooth quiet power transfer, 10-speed drivetrain and powerful hydraulic disc brakes to match
Stiff thru-axles and a rigid Aluminum alloy fork are balanced out by fatter 2.0" Schwalbe tires and TranzX Antishock stem and seat post for comfort
Available in three frame sizes for improved fit, durable chain-guide doubles as a bash guard, oversized pedals, locking grips and upgraded kickstand, quality charger with magnetic plug
Limited reflective surfaces and no integrated lights (though I believe dealers can add them), solid mid-level drivetrain from Shimano with 10 speeds, extensive dealer network and good warranty
| Frame | Formed 6061 T6 Oversize Aluminum Alloy, Thru Axle Dropout, Disc Brake Specific, Integrated Headtube |
|---|---|
| Fork | Formed 6061 T6 w/ Integrated Crown, Disc Brake, Thru axle |
| Headset | Integrated, Sealed Bearing |
| Stem | Raleigh Aluminum Alloy, 3d forged |
| Handlebar | Raleigh Aluminum Alloy |
| Saddle | Raleigh Custom Ergo Performance |
| Seatpost | Raleigh Aluminum Alloy, forged head Type: Rigid |
| Pedals | Shoe Friendly Urban Design, Resin Body, Boron Axle |
| Grips | Raleigh Ergo Comfort Control |
| Rear Derailleur | Shimano Deore M610, SGS |
|---|---|
| Crank | Forged Alloy for Brose System |
| Shifters | Shimano Deore M610, 10- speed |
| Cassette | Forged Spider, 48tooth, alloy chainguard |
| Chain | KMC x10ePT Ebike Specific |
| Brakes | Hydraulic Disc Type: Hydraulic Disc |
| Brake Levers | Tektro M735 |
| Rims | 27.5", 25mm ID, Disc Specific |
|---|---|
| Spokes | Stainless |
| Front Hub | Formula, Sealed Bearing, Thru Axle |
| Rear Hub | Formula, Sealed Bearing, Thru Axle |
| Tires | 27.5"X2.4" Schwalbe Super Moto |
| Motor | Brose Speed, 28mph, 250w, Made in Germany. |
|---|---|
| Battery | Fully Integrated & Removable, HTE, 497Wh |
| Display | Brose Info Screen |
