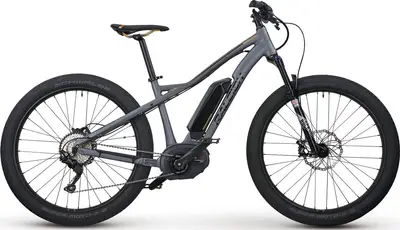

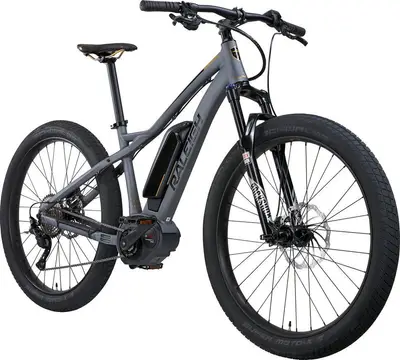

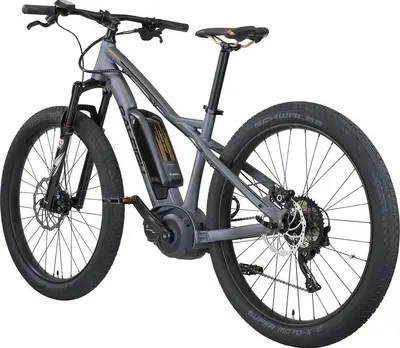

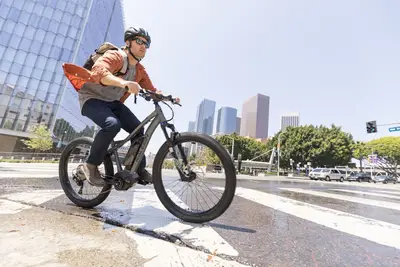

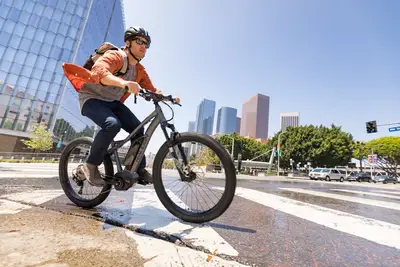

2018 Raleigh
Lore iE Step Over
A 650b aluminum frame hybrid e-bike with upper mid-range components and hydraulic disc brakes.
| MSRP | $4,374 |
|---|---|
| Frame | Aluminum |
| Suspension | Hardtail, 120mm |
| Fork | RockShox Judy |
| Wheels | 650b Aluminum |
| Drivetrain | 1 × 10 |
| Groupset | Deore |
| Motor | Bosch 350W 63Nm mid-drive |
| Battery | Bosch 500Wh |
| Brakes | Hydraulic Disc |
For This Bike
5'2" – 5'7"
5'6" – 5'11"
5'9" – 6'2"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Jul 2018
Price: $3499.00 | Model Year: 2018 A mean looking high speed urban electric bike with comfortable plus sized tires, sturdy thru-axles with wider Boost hub spacing, and lightweight 120 mm suspension fork from RockShox. Available in three frame sizes and designed with a lower top tube for approachability, you could swap the slick tires out for knobby and use this as a cross country electric mountain bike. A mean looking high speed urban electric bike with comfortable plus sized tires, sturdy thru-axles with wider Boost hub spacing, and lightweight 120 mm suspension fork from RockShox.
A mean looking high speed urban electric bike with comfortable plus sized tires, sturdy thru-axles with wider Boost hub spacing, and lightweight 120 mm suspension fork from RockShox
Available in three frame sizes and designed with a lower top tube for approachability, you could swap the slick tires out for knobby and use this as a cross country electric mountain bike
High performance Bosch Speed motor with shift detection, larger PowerPack 500 battery provides excellent range, great 10-speed Shimano Deore drivetrain with one-way clutch to reduce chain bounce
Powerful and consistent Magura hydraulic disc brakes with larger 203 mm front rotor and quad-piston caliper for consistency and cooling at high speed, great locking ergonomic grips, solid Wellgo platform pedals, wider 31.6 mm seat post, comfortable saddle, matching black accents all around (including rims, spokes, and hubs)
| Frame | Hydroformed Aluminum Alloy 6061 T6, Trail Speed Geometry BB Standard: Bosch, Press Fit |
|---|---|
| Fork | Rock Shox Judy Gold 120mm 27.5+ Travel: 120mm Spring Type: Coil |
| Bottom Bracket | Bosch, press-fit |
| Headset | Integrated, Sealed Bearing |
| Stem | Raleigh Aluminum Alloy, 3d forged |
| Handlebar | Raleigh Aluminum Alloy |
| Saddle | Raleigh Custom Ergo Performance |
| Seatpost | Raleigh Aluminum Alloy, forged head Type: Rigid |
| Pedals | Alloy, sealed bearing |
| Grips | Raleigh Ergo Comfort Control |
| Rear Derailleur | Shimano Deore M6000, SGS, Shadow Plus |
|---|---|
| Crank | Forged Alloy for Bosch System |
| Shifters | Shimano Deore M610, 10 Speed |
| Cassette | Forged Spider, 18tooth w/ chainguard, steel |
| Chain | KMC x10ePT Ebike Specific |
| Brakes | Hydraulic Disc Type: Hydraulic Disc |
| Brake Levers | Magura Fifty4, HC 2 finger |
| Rims | 27.5", Thru axle, 45mm ID, Disc Specific |
|---|---|
| Spokes | Stainless |
| Front Hub | Formula, Sealed Bearing, Thru Axle, Boost 110 |
| Rear Hub | Formula, Sealed Bearing, Thru Axle, Boost 148 |
| Tires | 27.5"X2.8" Schwalbe Super Moto |
| Motor | Bosch Performance Speed, 350W, 28MPH, Made in EU. |
|---|---|
| Battery | Bosch Powerpack 500Wh, DT Mount. |
| Display | Bosch Purion, Compact Type |
