Alloy 6061 Comfort Width: 640mm Rise: 50mm

Alloy Micro Adjust Bootless Suspension 27.2x350mm

Alloy Quill 25.4, EXT:90mm, Adjustable Rise

First in class when it comes to comfort on the bike, the Raleigh Venture 4 Step Thru women’s bike is your ticket for cruising the boardwalk, bike path, or city streets in comfort and style. Made with Raleigh women’s specific true comfort geometry, the Venture 4 Step Thru puts you in an upright, yet laid back position for maximum comfort on the bike. But the cush factor doesn’t stop there. Add a clean, stylish, lightweight aluminum frame, riser bars, suspension fork and suspension seat post, plush comfort seat and comfort grips, and big, wide tires to roll over the bumps with ease, and you’ve got the luxury land cruiser of bikes. Custom Raleigh bars and pedals add to the all day comfort. And the Step Thru design makes for easy on and off. Offering Shimano ef-51 EZ fire super responsive trigger Shifters, you have 24 speeds to choose from for riding up and down Moderate hills in the right gear. Venture into a new level of comfort on the bike with the Raleigh Venture 4 Step Thru.

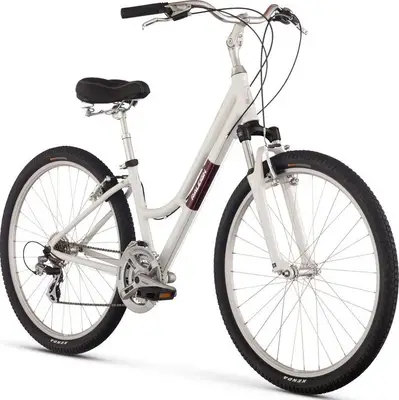

Raleigh Venture 4.0 Step Thru

A 650b aluminum frame women’s comfort bike with modest components and promax rim brakes.

Frame	Aluminum
Suspension	Hardtail
Fork	Suntour
Wheels	650b Aluminum
Drivetrain	3 × 8
Groupset	Tourney, Altus
Brakes	Promax Rim

Frame	AL-6061, Raleigh "True Comfort" Geometry
Fork	SR Suntour M3030, 27.5"
Bottom Bracket	Sealed Cartridge 68/122
Headset	Threaded 1-1/8"
Stem	Alloy Quill 25.4, EXT:90mm, Adjustable Rise
Handlebar	Alloy 6061 Comfort Width: 640mm Rise: 50mm
Saddle	Raleigh Comfort Plush
Seatpost	Alloy Micro Adjust Bootless Suspension 27.2x350mm Type: Suspension
Pedals	Raleigh Comfort Platform
Grips	Raleigh Comfort Grip

Rear Derailleur	Shimano Altus
Front Derailleur	Shimano TX51
Crank	Shimano FC-M171 48/38/28t
Shifters	Shimano EF-51 EZ Fire 8spd
Cassette	SRAM PG830 8spd (11-32t)
Chain	KMC HG40
Brakes	Promax Alloy V-Brake Type: Promax Rim
Brake Levers	Shimano EF-51

Rims	Weinmann XTB, 32h, 27.5"
Spokes	14g Stainless Steel, w/ Brass Nipples
Front Hub	Joytech Alloy QR 32h
Rear Hub	Shimano32h Cassette
Tires	Kenda K841A 27.5x1.95

2017 RaleighVenture 4.0 Step Thru

2017 Raleigh
Venture 4.0 Step Thru
