Tektro Auriga Hydraulic Disc, 180/160mm rotors

Forged 2pc 24mm spindle, w/ Narrow Wide 30t ring

SR Suntour XCR-32 Air, 27.5+, 120mm, Lock Out/Rebound, 15mm thru

AL-6061 SL Custom Butted Aluminum, Tapered HT, 148x12 Thru, IS Disc Mount

Raleigh 200 Series 31.8, 15mm Rise, Width:720/720/740/740mm

FSA IS-3 45deg upper, NO.11N Zerostack Lower, 1-1/8"

Raleigh 100 Series, Dual Bolt, 30.9x350mm

And now for something a little different. Raleigh’s taken trail aggressive geometry and threw in a hardtail, plus! what came out is a fun, playful, hardtail plus bike made for looser conditions and year-round riding with a cool factor that you can only explain by riding it. Introducing the tokul 3. The Tokul 3 offers a SRAM 1×11 drivetrain, front and rear thru axles, and a SR Suntour xcr-32 air 27.5+ fork with 120mm of travel, and lock out/rebound. An aggressive trail bike, the Tokul 3 loves to play in rooty, rocky trails and takes you through lines you never thought possible. The Tokul 3 is designed with an al-6061 SL custom butted aluminum frame with tapered head tube and a squishy SR Suntour XCR 32 air fork. The Weinmann U50 TL, 27.5 rims and Kenda havoc 27.5×2.8 tires are more forgiving, leveling out even the toughest terrain. And the Tektro Auriga hydraulic disc brakes ensure consistent stopping power when flying into the turns.

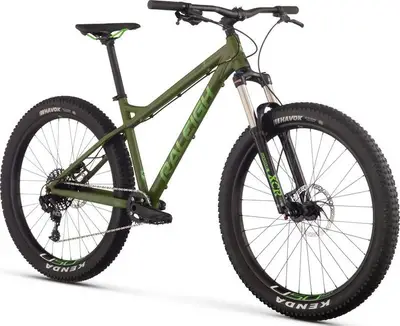

Raleigh Tokul 3

A 27.5″ aluminum frame hardtail trail bike with upper mid-range components.

Frame	Aluminum
Suspension	Hardtail, 120mm
Fork	Suntour XCR Air
Wheels	27.5″ Aluminum
Drivetrain	1 × 11
Groupset	NX
Brakes	Tektro Hydraulic Disc

Frame	AL-6061 SL Custom Butted Aluminum, Tapered HT, 148x12 Thru, IS Disc Mount
Fork	SR Suntour XCR-32 Air, 27.5+, 120mm, Lock Out/Rebound, 15mm thru Travel: 120mm Spring Type: Air
Bottom Bracket	External Bearings
Headset	FSA IS-3 45deg upper, NO.11N Zerostack Lower, 1-1/8"
Stem	Raleigh 3D Forged Alloy, 60mm
Handlebar	Raleigh 200 Series 31.8, 15mm Rise, Width:720/720/740/740mm
Saddle	Raleigh Mountain Saddle, 140mm wide
Seatpost	Raleigh 100 Series, Dual Bolt, 30.9x350mm Type: Rigid
Pedals	Wellgo Alloy Pedals
Grips	Raleigh Closed-end Single Lock Ring

Rear Derailleur	SRAM NX 11spd
Crank	Forged 2pc 24mm spindle, w/ Narrow Wide 30t ring
Shifters	SRAM NX trigger
Cassette	SRAM PG1130 (11-42t) 11spd
Chain	SRMA PC1130
Brakes	Tektro Auriga Hydraulic Disc, 180/160mm rotors Type: Tektro Hydraulic Disc
Brake Levers	Tektro Auriga, 2-Finger Hydraulic

Rims	Weinmann U50 TL, 27.5", 32h, 50mm wide
Spokes	14g Stainless Steel, w/ Brass Nipples
Front Hub	Joytech Alloy Disc QR 32h, 110x15mm Thru
Rear Hub	Joytech Alloy Disc,148x12 QR, 32h
Tires	Kenda Havoc 27.5x2.8

2017 RaleighTokul 3

2017 Raleigh
Tokul 3
