TRP Spyre dual actuated mechanical disc brakes, w/160mm rotors

Carbon/Alloy Tapered Steer, Cross Disc Post Mount, 15mm Thru Axles

Superlight Butted 6061 Alloy, Women-Specific Geometry, w/PF30, Tapered Headtube, canti Specific

Novatec 15mm Thru Axle, Disc Alloy, Sealed Bearing, 32h

Raleigh 200 Series 31.8 Women's Short Drop, Widths:38/38/38/40/40/42cm

Novatec 142X12 Thru Axle, Disc Alloy, Sealed Bearing, 32h

Weinmann Impulse TL, Double Wall 32h, 23mm wide

Prologo Kappa Evo Dea Women-Specific, 147mm wide

Raleigh 200 Series Alloy Dual Bolt 27.2x300mm

14/15g Stainless Butted MAC w/Brass Nipples

Raleigh 3D Forged, 31.8, Lengths:80/80/90/90/100/100mm

Ready to get more serious when it comes to racing cross? The mid-high-end RXW women’s cross bike has everything you need, and nothing you don’t. Starting with the superlight, women’s specific alloy cross frame, the RXW also incorporates women’s specific sizing, reach and narrower handlebars for a superb fit and ride quality. And alas, the ladies have disc brakes for great stopping power in all conditions, thank you very much!
The RXW offers a threaded BB for easy maintenance, thru-axles front and rear for stiffness, and perfect alignment with the TRP Spyre dual actuated mechanical disc brakes. A proven and reliable SRAM Rival 1X11 drivetrain helps you power this snappy ride. Tubeless-ready Impulse wheels with Clement MXP tires make this race-proven, course-conquering cyclocross machine a top pick. Of course, the RXW can also be used for more than just racing, so take her around town or to the office to fully appreciate her.

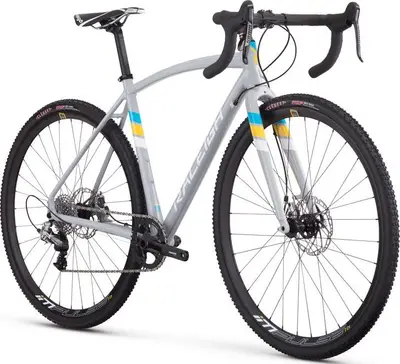

Raleigh RXW

48cm

50cm

52cm

54cm

56cm

An aluminum frame women’s cyclocross bike with upper mid-range components and trp mechanical disc brakes.

Weight	20.9 lbs
Frame	Aluminum
Fork	Carbon
Wheels	700c Aluminum
Drivetrain	1 × 11
Groupset	Rival
Brakes	TRP Mechanical Disc

Frame	Superlight Butted 6061 Alloy, Women-Specific Geometry, w/PF30, Tapered Headtube, canti Specific BB Standard: PF30, Press Fit
Fork	Carbon/Alloy Tapered Steer, Cross Disc Post Mount, 15mm Thru Axles
Bottom Bracket	SRAM GXP
Headset	FSA Integrated Cartridge Bearings
Stem	Raleigh 3D Forged, 31.8, Lengths:80/80/90/90/100/100mm
Handlebar	Raleigh 200 Series 31.8 Women's Short Drop, Widths:38/38/38/40/40/42cm
Saddle	Prologo Kappa Evo Dea Women-Specific, 147mm wide
Seatpost	Raleigh 200 Series Alloy Dual Bolt 27.2x300mm Type: Rigid
Pedals	Test Ride Pedals

Rear Derailleur	SRAM Rival Medium cage
Crank	SRAM FC-S350 GXP, XSYNC 38t Ring
Shifters	SRAM Rival 22
Cassette	SRAM PG1130 11spd (11-32t)
Chain	SRAM PC1130 11spd
Brakes	TRP Spyre dual actuated mechanical disc brakes, w/160mm rotors Type: TRP Mechanical Disc
Brake Levers	SRAM Rival

Rims	Weinmann Impulse TL, Double Wall 32h, 23mm wide
Spokes	14/15g Stainless Butted MAC w/Brass Nipples
Front Hub	Novatec 15mm Thru Axle, Disc Alloy, Sealed Bearing, 32h
Rear Hub	Novatec 142X12 Thru Axle, Disc Alloy, Sealed Bearing, 32h
Tires	Clement MXP, 700x33, Folding
