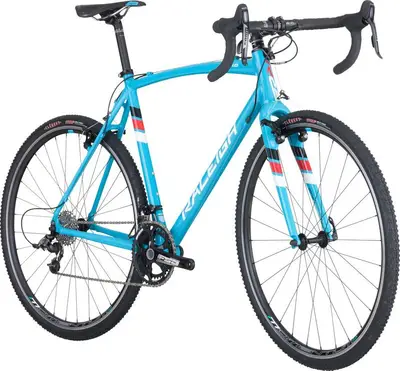

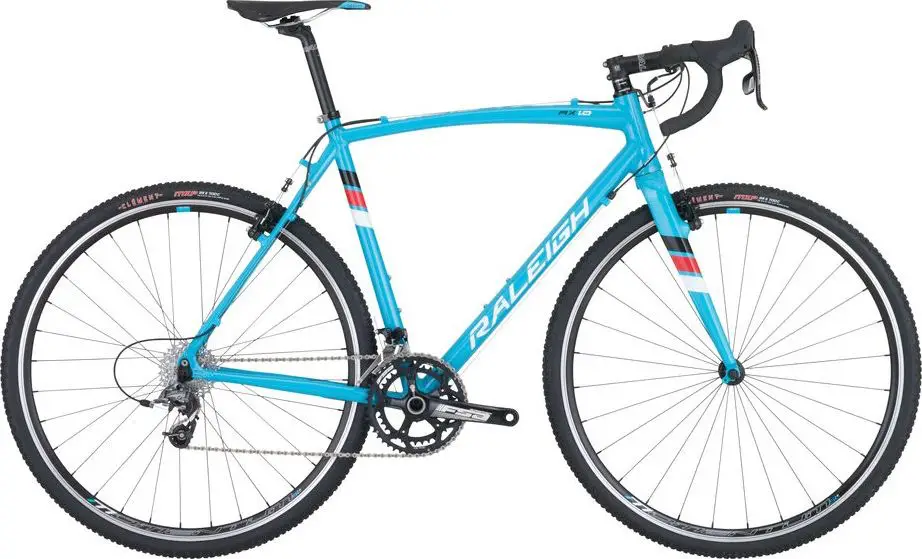

Name: 2017 Raleigh RX 1.0
Brand: Raleigh
Rating: 4.496 (2 reviews)

Carbon/Alloy Tapered Steer, Cross Disc Post Mount

Superlight Butted 6061 Alloy w/PF30, Tapered Headtube, Canti Specific

Raleigh 200 Series 31.8 Short Drop, Widths:40/42/42/44/44/44cm

FSA Integrated Cartridge Bearings w/Cable Guide

Weinmann Momentum SL Double Wall, 23mm wide

Prologo Kappa Evo custom Raleigh Racing colors, 147mm wide

14/15g Stainless Butted MAC w/Brass Nipples

Raleigh 200 Series, 3D Forged, 31.8, Lengths:90/90/100/100/110/110mm

If you’re thinking about getting into ‘cross or you’re ready to retire the bike you started on, the RX1.0 is a race ready steed. Not a one trick pony, the RX1.0 is designed with fender and rack mounts it doubles easily as a winter training rig and commuter.

Raleigh RX 1.0

52cm

54cm

56cm

58cm

60cm

62cm

An aluminum frame cyclocross bike with upper mid-range components and tektro rim brakes.

We’ve got this top-of-the-range carbon cyclocross bike from Raleigh in for test – it looks so nice it seems a shame to get it dirty

Cycling Weekly

Raleigh RX Team (video)

For Canada, Raleigh offers six cyclocross models. In this range, you’ll find two built for women in either aluminum or carbon, both with rim brakes.

Frame	Aluminum
Fork	Carbon
Wheels	700c Aluminum
Drivetrain	2 × 11
Groupset	Force, Rival
Brakes	Tektro Rim

Frame	Superlight Butted 6061 Alloy w/PF30, Tapered Headtube, Canti Specific BB Standard: PF30, Press Fit
Fork	Carbon/Alloy Tapered Steer, Cross Disc Post Mount
Bottom Bracket	FSA PF30
Headset	FSA Integrated Cartridge Bearings w/Cable Guide
Stem	Raleigh 200 Series, 3D Forged, 31.8, Lengths:90/90/100/100/110/110mm
Handlebar	Raleigh 200 Series 31.8 Short Drop, Widths:40/42/42/44/44/44cm
Saddle	Prologo Kappa Evo custom Raleigh Racing colors, 147mm wide
Seatpost	Raleigh 2014 Alloy Dual Bolt 27.2x300mm Type: Rigid
Pedals	Test Ride Pedals
Grips	CX Specific Bar Tape

Rear Derailleur	SRAM Force 22
Front Derailleur	SRAM Rival 22
Crank	FSA Gossamer Cross BB30 46/36t
Shifters	SRAM Rival 22
Cassette	SRAM PG1130 11spd (11-28t)
Chain	SRAM PC1130
Brakes	Tektro CR710 Canti, w/Cartridge Pads Type: Tektro Rim
Brake Levers	SRAM Rival Double Tap

Rims	Weinmann Momentum SL Double Wall, 23mm wide
Spokes	14/15g Stainless Butted MAC w/Brass Nipples
Front Hub	Novatec A521SB Sealed Bearing, 28h
Rear Hub	Novatec F162SB Sealed Bearing 11spd, 32h
Tires	Clement MXP, 700x33, 60 TPI
