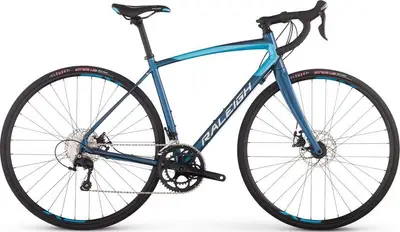

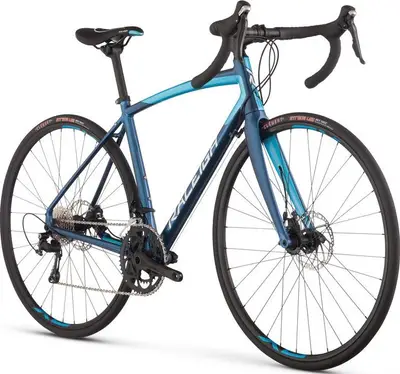

2017 Raleigh
Revere 3
An aluminum frame women’s endurance bike with upper mid-range components and mechanical disc brakes.
Compare the full range
Manufacturer Price
$1,299| Weight | 21.5 lbs |
|---|---|
| Frame | Aluminum |
| Suspension | Rigid |
| Fork | Carbon |
| Wheels | 700c Aluminum |
| Drivetrain | 2 × 11 |
| Groupset | 105 |
| Brakes | Mechanical Disc |
For This Bike
| Frame | Women's Specific AL-6061 Double Butted Alloy Disc Frame with Thru-Axles |
|---|---|
| Fork | Custom Carbon to Alloy 1-1/8" to 1.5 taper, Thru-Axle with Post Disc Mounts |
| Bottom Bracket | External Bearing |
| Headset | Integrated Cartridge Bearings |
| Stem | 3D Forged Anti-Shock, 31.8, 80/90/100mm |
| Handlebar | Raleigh 200 Series Aero Ergo Flat Top Road, 31.8 with 6 Degree Flare, 38/40/42cm |
| Saddle | Raleigh 200 series Saddle |
| Seatpost | Anti-Shock 27.2x300mm Type: Rigid |
| Pedals | Test Ride Pedals |
| Rear Derailleur | Shimano 105 |
|---|---|
| Front Derailleur | Shimano 105 |
| Crank | Forged 2PC Compact 34/50t |
| Shifters | Shimano 105 11spd STI, Shimano SP41 Shift Housing |
| Cassette | Shimano 11spd (11-32t) |
| Chain | KMC X11 |
| Brakes | TRP Spyre C dual actuated mechanical disc brakes, w/160mm rotors Type: Mechanical Disc |
| Brake Levers | Shimano 105 STI |
| Rims | Weinmann XC180 Double Wall 23mm Wide |
|---|---|
| Spokes | 14g Stainless MAC |
| Front Hub | Formula Alloy Disc 15mm Thru-Axle |
| Rear Hub | Formula Alloy Disc 142x12mm Thru-Axle Cassette |
| Tires | Clement Strada LGG 60TPI, 700x28c |
