Tektro Auriga Hydraulic Disc, 180/160mm rotors

AL-6061 Frame w/ 120mm Travel, Raleigh E-Thru and Tapered HT

Raleigh 200 Series 31.8, 15mm Rise, Width:700/700/720/720mm

Want to try a full suspension bike without spending your life savings the Kodiak 2 is a solid mid-level mountain bike with the latest 27.5 plus tires for more traction on the trail, better handling, and the ability to roll over just about anything in cushy comfort. It’s simple, good quality, reliable, looks good and rides great! built with a tried and true alloy plus frame design with tapered head tube, an air shock, and both front and rear thru axles, the Kodiak 2 is super responsive on the trails. The new SRAM NX 1×11 drivetrain with 11-42 wide range cassette and narrow-wide CNC offers a great gear ratio to get up and down in a lighter weight package. Hydraulic disc brakes provide the ultimate stopping power in all weather conditions. The dual suspension makes it cushier and more forgiving than a hardtail and the extra big Weinmann U50, 27.5" plus rims and Kenda havoc 27.5×2.8″ tires add even more volume for a great overall suspension feel.

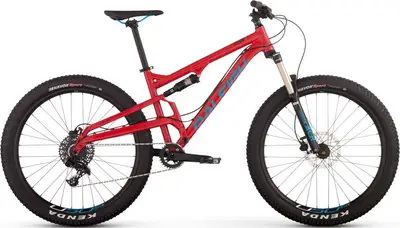

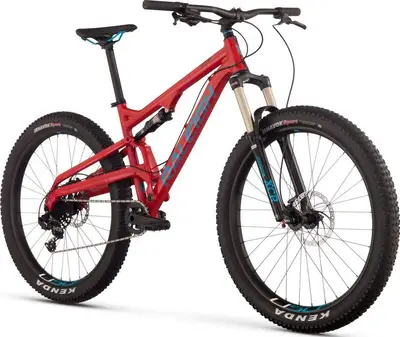

Raleigh Kodiak 2

A 27.5″ aluminum frame full suspension trail bike with upper mid-range components.

Frame	Aluminum
Suspension	Full, 120 / 120mm
Fork	Suntour RAIDON
Wheels	27.5″ Aluminum
Drivetrain	1 × 11
Groupset	NX
Brakes	Tektro Hydraulic Disc

Frame	AL-6061 Frame w/ 120mm Travel, Raleigh E-Thru and Tapered HT
Fork	SR Suntour Raidon 32 Air, 27.5+, 120mm Travel: 120mm Spring Type: Air
Bottom Bracket	External Bearings
Headset	FSA NO.42 / ACB
Stem	Raleigh 3D Forged Alloy, 60/60/70/70mm
Handlebar	Raleigh 200 Series 31.8, 15mm Rise, Width:700/700/720/720mm
Saddle	Raleigh Mountain Saddle
Seatpost	Alloy Dual Bolt 30.9x350mm Type: Rigid
Pedals	Test Ride Pedals
Grips	Raleigh Closed-end Single Lock Ring

Rear Derailleur	SRAM NX 11spd
Crank	Forged 2pc 24mm spindle, 30T Narrow/Wide
Shifters	SRAM NX trigger
Cassette	SRAM PG1130 11-42t
Chain	SRAM PC1130
Brakes	Tektro Auriga Hydraulic Disc, 180/160mm rotors Type: Tektro Hydraulic Disc
Brake Levers	Tektro 2-Finger levers

Rims	Weinmann U50, 27.5", 32h
Spokes	14g Stainless Steel, Brass Nipples
Front Hub	Joytech Alloy 15x110mm thru, 32h
Rear Hub	Joytech Alloy 148x12mm thru, 32h
Tires	Kenda Havoc, 27.5x2.8"

2017 RaleighKodiak 2

2017 Raleigh
Kodiak 2
