Hi-Ten Steel, Removable Cable Guides, Track Geometry

Alloy, 620mm Wide, 25mm Rise, 5 Deg Backsweep

Alloy, 31.8, 7 Deg Rise, 105mm Extension (90mm for Small)

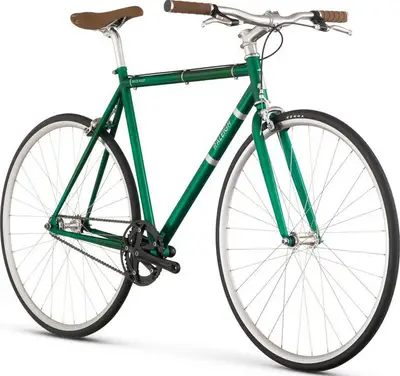

A throw back to some of the first Raleigh bikes made over a century ago, the Back Alley is built to bomb alleyways, burn down hills, beat traffic and stop for a lock-up and reload at the local pub. Yep, this bike is all street. Nothing feels as connected to the pavement and rider like a track bike.
Designed with a Hi-Ten steel frame and track geometry, the Back Alley absorbs bumps and reacts fast. This fixie/single speed bike features flat bars and fixed/free (flip-flop) rear hub. It also offers a Raleigh Classic Road Saddle and removable cable guides.

Frame	Steel
Suspension	Rigid
Fork	Steel
Wheels	700c Aluminum
Brakes	Rim

Frame	Hi-Ten Steel, Removable Cable Guides, Track Geometry
Fork	Hi-Ten Steel
Bottom Bracket	Sealed Cartridge
Headset	FSA Sealed 1 1/8"
Stem	Alloy, 31.8, 7 Deg Rise, 105mm Extension (90mm for Small)
Handlebar	Alloy, 620mm Wide, 25mm Rise, 5 Deg Backsweep
Saddle	Raleigh Classic Road
Seatpost	Alloy Micro Ajust, 27.2 x 350mm Type: Rigid
Grips	Micro Suede Lock-on

Crank	170mm Alloy Track (L & XL = 175mm)
Cassette	42t
Chain	KMC Z410
Brakes	Alloy Dual Pivot Caliper Type: Rim
Brake Levers	Alloy

Rims	Alloy Double wall
Spokes	14g Stainless w/Brass Nipples
Front Hub	Formula track, 32h
Rear Hub	Formula Fixed / Free (Flip-Flop), 32h
Tires	Kenda 10818 700x25c

2017 RaleighBack Alley

2017 Raleigh
Back Alley
