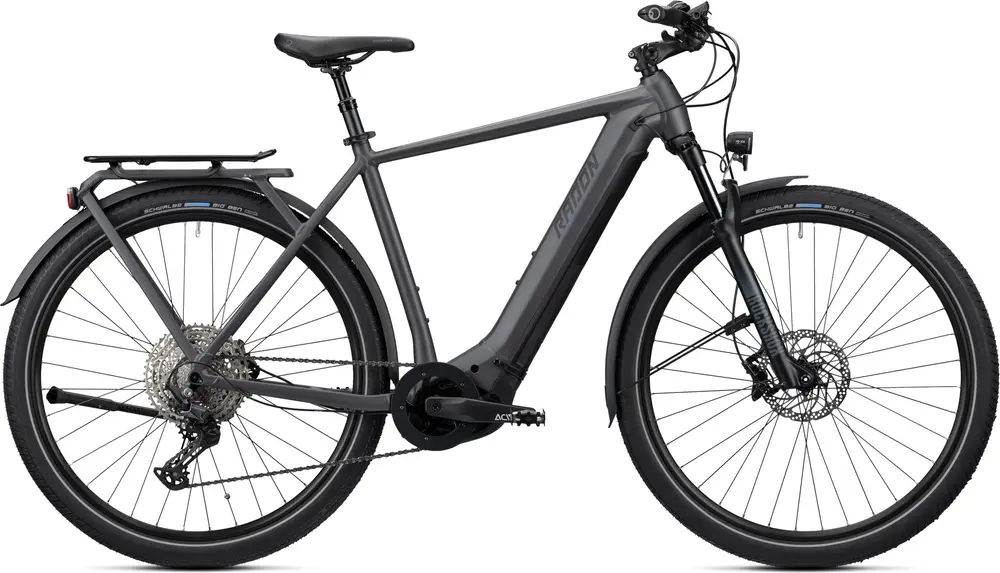

2022 Radon
RELATE 8.0 625

A 700c commuter e-bike with upper mid-range components and shimano deore hydraulic disc brakes.
Compare the full range

Manufacturer Price

€3,299($3,821)

Weight	55.3 lbs
Suspension	Hardtail, 100mm
Wheels	700c Aluminum
Drivetrain	1 × 12
Groupset	Deore
Motor	Bosch 600W 85Nm mid-drive
Battery	Bosch 625Wh
Brakes	Shimano Deore Hydraulic Disc

Where to Buy

Similar Bikes

Top Comparison

Insights

Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

33 mph

RELATE 8.0 625

31 mph

Similar Bikes

Highest gear

(descending)

Specs

Build

Frame	RELATE Color: Stealthgrey / Black
Fork	RockShox Recon Silver RL, Air, Boost Travel: 100mm Spring Type: Air
Headset	Acros Block-Lock, ZS56/ZS56
Stem	Humpert Swell-R Eco adjust, Ø31.8mm; 50cm/100mm, 54cm/100mm, 58cm/100mm, 62cm/120mm
Handlebar	RADON Comfort Trail Bar, 31.8 x 680mm
Saddle	Natural Fit Sequence; Caution, image differs from the original! The bike comes with Natural Fit Sequence saddle!
Seatpost	RADON suspension seatpost, Ø30.9 x 350mm Type: Suspension
Pedals	not included
Grips	ACID React Pro

Groupset

Rear Derailleur	Shimano DEORE RD-M6100-SGS, 12-speed
Crank	Acid E-Crank, KMC chainring, 38T, 175mm
Shifters	Shimano DEORE SL-M6100-R
Cassette	Shimano DEORE CS-M6100, 10-51
Chain	Shimano DEORE CN-M6100
Brakes	Shimano BR-MT420/BR-MT410 Type: Shimano Deore Hydraulic Disc

Wheels

Rims	Alexrims MD23
Spokes	DT Swiss Factory
Front Hub	Shimano HB-MT400-B, 110mm
Rear Hub	Shimano FH-MT410-B, 148mm
Tires	Schwalbe Big Ben, PerfL, wired, Reflex, 28" x 55mm

Electric Components

Motor	Bosch Performance Line CX Gen4
Battery	Bosch Powertube 625Wh
Display	Bosch Intuvia

Accessories

Lights	Front: Busch & Müller Lumotec IQ-XS Light E, Rear: Herrmans H-Trace E-Bike
Racks	Racktime IC 2.0
Bell	RADON Mini Bell
