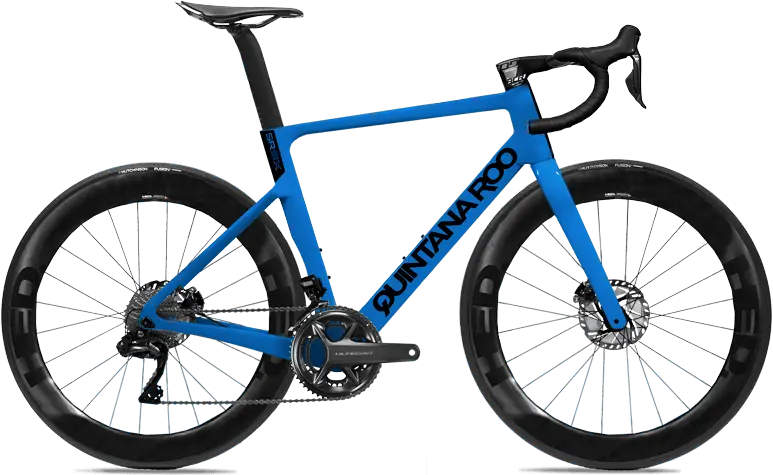

Name: 2023 Quintana Roo SRsix - SRAM RED E1
Brand: Quintana Roo
Rating: 4.288 (1 reviews)

Stealth

Matte Green

Electric Blue

Rosso Corsa

Cool Mint

White

Matte Red

Matte Blue

Dynamo

Kinetic

Pink Diamond

Night Sky

Argent

Mica Diamond

Prism

Key Features
Component Specification
Shipping & FAQ
Reviews
We built a fast, practical and clean aero road platform for the masses with the SRfive. But we knew with more time, analysis and study, we could make it even better. We could make it significantly lighter. Jump Quicker. Ride smoother. Employing our Trickle-up Technology philosophy, we’ve taken what we learned to further hone the SR aero road platform into the ultimate superbike.
The result is the SRsix.
The SRsix represents the pinnacle of Quintana Roo aero road performance. The triumvirate of class-leading aerodynamics, practical simplicity and a handling acumen anyone from the ProTour champ to the beginner can appreciate are now joined by world-beating weight savings. It’s now possible to finally have it all… in one bike.
Our premium bike requires premium performance. That meant using the lightest, stiffest carbon available. Along with strategically engineered layup to minimize materials used, we employ the industry’s lightest laminates to construct the SRsix frameset with precision resin transfer, resulting in a frameset with minimal excess resin for greater weight savings. We carved 175 grams from our SRfive frame (and 70 grams from our fork using a new, slightly slimmer fork), with a stock SRsix frame weighing 995 grams in a size medium frame — including all factory specified items: water bottle bolts, derailleur hanger and inserts. The frame, electronic or mechanical shifting-ready, comes with a threaded T47 bottom bracket ensuring no squeaks, creaks or rattles while capable of our multiple power meter upgrade options.
With the savings comes a bike that not only climbs well, but also corners and accelerates with a greater snap—without sacrificing aerodynamics.
Those weight savings aren’t simply for the scales. Aero road bikes are often maligned by vertical stiffness that makes for a rough, uncomfortable ride. But it’s our composites experience and careful, tailored layup orientation of premium materials that have allowed us to create tube shapes capable of better absorbing and deflecting the high-frequency road vibrations that can easily fatigue a rider. The result is a level enhanced ride comfort that rivals every other aero road bike on the market. Hour after hour, on even the roughest roads, when others are ready to be done, you’ll be ready for more. We’ve redefined what aero road bike ride quality can be.
In developing the SRsix aerodynamically, we hit our marks—and then exceeded them. With wind tunnel drag numbers 20 to 40 watts faster than a standard non-aero road bike on a fully-compliant UCI platform, we achieved a bike deep enough to cheat the wind, shallow enough to carve weight, designed with practicality in mind being faster with water bottles than without, and shaped to optimize stiffness where needed.
We also took on several of our biggest industry competitors in the wind tunnel to see how we fared. It turns out, we were not only close to them in many instances, we were faster as well, especially when outfitted in a manner that reflects how the bike is ridden in the real world: with water bottles on the bike. You can pay more for a fast aero bike, but we’ve proven: you don’t have to. Read all about our wind tunnel test against our competitors here
Wind Tunnel Testing Results SR Series Data Download
The less the wind sees, the better. So we’ve designed to completely encase all brake and shift cable within the confines of the cockpit and frame, all the while maintaining fit adjustability as well as mechanical ease of use. With the use of Vision’s Metron full carbon cockpit, all cables are contained within the cockpit, frame and fork, making for a clean, cable-free aero presentation.
Our finest platform deserves the best components to make it truly shine. We’re presenting the SRsix with Shimano Dura-Ace and Ultegra build options, as well as Vison’s Metron fully integrated one-piece carbon cockpit. And as always, if there’s another build option you’d like us to customize for you, just call us; we can make your dream build happen.
A fast bike is meaningless if it doesn't fit you properly. Our system allows you to select from a range of cockpit bar width and stem length combinations. No other brand offers this level of customization. We also offer zero offset and 20mm offset post options.
Order your SRsix online and have it shipped direct to your home or office. Like every Quintana Roo, your SRsix can be out of the box, built with just a few included tools and out on the roads in no time.
Premium carbon overlay system and design
Wind tunnel tested, aero engineered frame design
Light weight frame -- 995 grams in size medium
UCI Approved
New lighter and increasingly bladed SRsix-exclusive fork
Vision Metron fully integrated one-piece carbon cockpit
Ultegra/ Ultegra Di2 feature lighter weight FSA SL-K carbon crank
T47 bottom bracket
Flat-mount hydraulic brakes, with 12 mm thru-axles
Wide tire ready: Up to 700 x 32c tire clearance
Invisible cable routing
Fit capability
Over 40 paint and graphic combinations
QR Lifetime Warranty
Your Build, Your Way
Order online direct with with full-assembly shipping options or visit a QR retailer
Read SRsix Stories
We pair each Quintana Roo frame with some of the best components and drivetrains in the world. We take component specifications seriously, as the quality and performance of the components are just as important as the frames we design and produce.
*COVID availability advisory: Due to high demand during COVID-19, our industry is working hard to keep up with all parts, components and accessories. Your purchase may include unavailable parts. At that point, we will replace them with equal or better parts. Please reach out via LiveChat or email if you have any questions.
Looking for a specific crank length, saddle or gearing on your new QR bike? Chat with us or contact us now! Additional charges may apply.
Fork
QR Carbon Aero
Headset
FSA
Stem
Vision Metron 5D Integrated Carbon ACR
Handlebar
Vision Metron 5D Integrated Carbon ACR
Seatpost
QR Carbon Aero, 20mm Offset**
Saddle
Fizik Vento Argo R5 S-Alloy 140 Black
Shifters
Shimano 105 R7120
Front Derailleur
Shimano 105 R7100
Rear Derailleur
Shimano 105 R7100
Brakes
Shimano 105 R7170
Disc Rotors
Shimano RT54 160mm
Crankset
105 R7100 52/36
Cassette
105 R7101 11-34 12Spd
Chain
Shimano M7100
Bottom Bracket
Praxis T47
Tires
Continental Ultra Sport III 28c Folding
Wheelset
Select Wheels Above
-
-
-
-
-
-
Fork
QR Carbon Aero
Headset
FSA
Stem
Vision Metron 5D Integrated Carbon ACR
Handlebar
Vision Metron 5D Integrated Carbon ACR
Seatpost
QR Carbon Aero, 20mm offset**
Saddle
Fizik Vento Argo R5 S-Alloy 140 Black
Shifters
Ultegra Di2 8170 12 spd
Front Derailleur
Ultegra Di2 8150 12 spd
Rear Derailleur
Ultegra Di2 8150 12 spd
Brakes
Ultegra 8170
Disc Rotors
Shimano MT8100 CL 160mm
Crankset
Ultegra R8100 52/36 12 spd
Cassette
Ultegra R8100 11-30 12 spd
Chain
Shimano M8100 12 spd
Bottom Bracket
Praxis T47
Tires
Continental Ultra Sport III 28c Folding
Wheelset
Select Wheels Above
-
-
-
-
-
-
Fork
QR Carbon Aero
Headset
FSA
Stem
Vision Metron 5D Integrated Carbon ACR
Handlebars
Vision Metron 5D Integrated Carbon ACR
Seatpost
QR Carbon Aero, 20mm offset**
Saddle
Fizik Vento Argo R5 S-Alloy 140 Black
Shifters
SRAM Force eTap AXS D2 12 spd
Front Derailleur
SRAM Force AXS 12 spd
Rear Derailleur
SRAM Force AXS 12 spd
Brakes
SRAM Force
Disc Rotors
SRAM Centerline CL 160mm
Crankset
SRAM Force AXS 48/35 12 spd
Cassette
SRAM Force XG1270 10-33 12 spd
Chain
SRAM Force Flattop
Bottom Bracket
T47
Tires
Continental Ultra Sport III 28c Folding
Wheelset
Select Wheels Above
-
-
-
-
-
-
Fork
QR Carbon Aero
Headset
FSA
Stem
Vision Metron 5D Integrated Carbon ACR
Handlebar
Vision Metron 5D Integrated Carbon ACR
Seatpost
QR Carbon Aero, 20mm Offset**
Saddle
Fizik Vento Argo R5 S-Alloy 140 Black
Shifters
Dura-Ace Di2 R9270 Di2 spd
Front Derailleur
Dura-Ace Di2 R9250 12 spd
Rear Derailleur
Dura-Ace Di2 R9250 12 spd
Brakes
Dura-Ace 9270
Disc Rotors
Shimano MT900 CL 160mm
Crankset
Dura-Ace R9200 52/36 12 spd
Cassette
Dura-Ace R9200 11-30 12 spd
Chain
Shimano M9100 12 spd
Bottom Bracket
Praxis T47
Tires
Continental GP5000 700x28c Blk
Wheelset
Select Wheels Above
-
-
-
-
-
-
Fork
QR Carbon Aero
Headset
FSA
Stem
Vision Metron 5D Integrated Carbon ACR
Handlebar
Vision Metron 5D Integrated Carbon ACR
Seatpost
QR Carbon Aero, 20mm Offset**
Saddle
Fizik Vento Argo R5 S-Alloy 140 Black
Shifters
SRAM Red E1 AXS HRD
Front Derailleur
SRAM Red E1 AXS 12spd
Rear Derailleur
SRAM Red E1 AXS 12spd
Brakes
SRAM Red E1 AXS HRD
Disc Rotors
SRAM Paceline X 160mm
Crankset
SRAM Red E1 2X 48-35 12spd Power Meter
Cassette
SRAM Red E1 XG1290 10-36 12spd
Chain
SRAM Red E1 Flattop 12spd
Bottom Bracket
Praxis T47
Tires
Continental GP5000 700x28c Blk
Wheelset
Select Wheels Above
-
-
-
-
-
-
*Size XS comes with a Vision Carbon Metron Aero ACR handlebar and FSA ACR Stem on all build options
**Zero offset seatpost available upon request.
Stem Length
Size XS — 80mm
Size S — 100mm
Size M — 100mm
Size L — 110mm
Size XL — 120mm
Crank Length
Size XS — 165mm
Size S — 170mm
Size M — 172.5mm
Size L — 172.5mm
Size XL — 175mm
Bar Width
Size XS — 40cm
Size S — 40cm
Size M — 40cm
Size L — 42cm
Size XL — 42cm
Find answers to common questions about bike builds, custom component selections, and shipping below. If you have any questions feel free to live-chat with us or contact us.
Shipping & Delivery Options Shipping FAQs
Can I make changes to the build kit?Absolutely. Our bikes are built to order so you can customize however you'd like. If there are components you'd really like on your bike but don't see them offered live-chat or contact us for availability and a custom quote!
Can I have a different length stem, crankarms, or different gearing?We spec different length components on our bikes based on common lengths per each size of bike. If you are looking to specify what length components or the gearing you'd like on your new Quintana Roo just live-chat or contact us and we'll get you started on a custom order.
I received my Di2 bike, but the system isn't charging?Triple check the seatpost battery/Di2 wire connection. Many times even though you think you have the wire firmly connected, give it another push and 9 times out of 10 the system comes to life.
What kind of thru-axle do I need for my stationary trainer?For use in a stationary trainer, a specific thru-axle will need to be ordered. The rear thru-axle is an E-thru standard M12x1.5, 142mm long.
Does my bike arrive assembled?The amount of assembly required depends on shipping option you select. Typically our bike assembly runs between 30 to 45 minutes. Check out our shipping and delivery options to find the best option for you and your budget.
Need help assembling, adjusting, or maintaining your SRsix? Check out our guide with self-help instructions.
Owner Guide
Other Helpful Videos
"...for those looking for the most performance, it’s a simple yes."- Road Bike Action
Read the Road Bike Action Review

Quintana Roo SRsix - SRAM RED E1

A carbon frame aero bike with ultra high-end components and sram red hydraulic disc brakes.

Quintana Roo evolves their aero-road SRsix

Road Bike Action

QUINTANA ROO SRSIX ROAD BIKE REVIEW - Road Bike Action

Frame	Carbon
Fork	Carbon
Wheels	700c Aluminum
Drivetrain	2 × 12 Electronic
Groupset	RED AXS
Power Meter	Red AXS
Brakes	SRAM RED Hydraulic Disc

Frame	carbon BB Standard: T47, Threaded Tire Clearance: 32c Colors: Stealth; Matte Green; Electric Blue; Rosso Corsa; Cool Mint; White; Jet; Matte Red; Matte Blue; Dynamo; Kinetic; Pink Diamond; Night Sky; Argent; Mica Diamond; Prism
Fork	QR Carbon Aero
Bottom Bracket	Praxis T47
Headset	FSA
Stem	Vision Metron 5D Integrated Carbon ACR
Handlebar	Vision Metron 5D Integrated Carbon ACR
Saddle	Fizik Vento Argo R5 S-Alloy 140 Black
Seatpost	QR Carbon Aero, 20mm Offset** Type: Rigid

Rear Derailleur	SRAM Red E1 AXS 12spd
Front Derailleur	SRAM Red E1 AXS 12spd
Crank	SRAM Red E1 2X 48-35 12spd Power Meter
Power Meter	SRAM Red E1 2X 48-35 12spd Power Meter
Shifters	SRAM Red E1 AXS HRD
Cassette	SRAM Red E1 XG1290 10-36 12spd
Chain	SRAM Red E1 Flattop 12spd
Brakes	SRAM Red E1 AXS HRD Type: SRAM RED Hydraulic Disc

Rims	DT Swiss E 1800 Spline Disc
Tires	Continental GP5000 700x28c Blk
Disc Rotors	SRAM Paceline X 160mm
