Name: 2023 Quintana Roo SRfive Frameset
Brand: Quintana Roo
Rating: 4.6240000000000006 (3 reviews)

Stealth

Matte Green

Electric Blue

Rosso Corsa

Cool Mint

White

Matte Red

Matte Blue

Dynamo

Kinetic

Pink Diamond

Night Sky

Argent

Mica Diamond

Prism

Key Features
Shipping & FAQ
Reviews

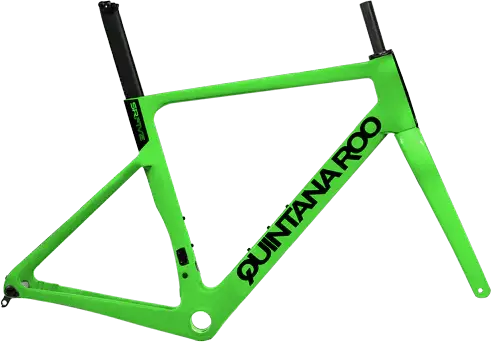

SRfive Frameset Includes: Frame, Fork, Seatpost, Headset, Thru-Axles
A new definition of performance designed for those ready to attack – the Quintana Roo SRfive aero road bike was borne from a desire to achieve perfection on every ride, regardless of the type of ride. Whether it’s flatland speed, climbing or darting descents, the SRfive is a performer that won’t break the bank.
Engineering a new race bike for the road is something with which we’re familiar. With decades of development of air-cheating bikes within our award-winning PRseries triathlon bike range, the SRfive delivers class-leading aerodynamics and simplicity our competition doesn’t provide. Further defining QR’s performance heritage is the SRfive’s amazing power transfer and acceleration, while delivering a smooth ride quality and stable handling second-to-none.
The SRfive’s elegant, clean lines are kept thanks to a fully adjustable, integrated cockpit. The SRfive also boasts modern features including massive tire clearance capacity for optimized rolling resistance, comfort and speed. It is a beautiful balance of aerodynamics, stiffness and ride quality, with style and performance to take you further, faster.
The SRfive employs every design feature seen in our premium SRsix model, but delivers them within a range of build price options that make speed attainable for all. You simply can't find a better value in aero road bikes than the SRfive.
The SRfive utilizes premium composite material that is meticulously tested for quality, precisely overlaid into panels and molded into our size-specific frames. By using the industry’s most precise chemistry control and resin transfer, the carbon lay-up in the SRfive is optimized for quality and performance. While yielding top notch performance and quality, we also focused on weight. The stock SRfive frame weighs in at just 1,175 grams - including all factory spec items (bottle bolts, derailleur hangers and inserts). The frame, mechanical and electronic shifting-ready, comes with a threaded T47 bottom bracket ensuring no squeaks, creaks or rattles while capable of our multiple power meter upgrade options.
In developing the SRfive aerodynamically, we hit our marks—and then exceeded them. With wind tunnel drag numbers 20 to 40 grams faster than a standard non-aero road bike on a fully-compliant UCI platform. We achieved a bike deep enough to cheat the wind, shallow enough to carve weight, designed with practicality in mind being faster with water bottles than without, and shaped to optimize stiffness where needed.
We also took on several of our biggest industry competitors in the wind tunnel to see how we fared. It turns out, we were not only close to them in many instances, we were faster as well, especially when outfitted in a manner that reflects how the bike is ridden in the real world: with water bottles on the bike. You can pay more for a fast aero bike, but we’ve proven: you don’t have to. Read all about our wind tunnel test against our competitors here.
Ride comfort was a key priority for the SRfive as well. Aero road bikes are often maligned by vertical stiffness that makes for a rough, uncomfortable ride. But it’s our composites experience and careful, tailored layup orientation of premium materials that have allowed us to create tube shapes capable of better absorbing and deflecting the high-frequency road vibrations that can easily fatigue a rider. The result is a level enhanced ride comfort that rivals every other aero road bike on the market. Hour after hour, on even the roughest roads, when others are ready to be done, you’ll be ready for more. We’ve redefined what aero road bike ride quality can be. Don’t just hear it from us, read about what Road Bike Action thought about the ride.
Wind Tunnel Testing Results SR Series Data Download
Recent trends to minimize cable exposure have created tremendous mechanical and rider position complications for athletes. With the use of FSA's fully adjustable ACR cockpit, all cables are contained completely inside of the cockpit, frame and fork making for a clean aero presentation, free of cables.
That fastest bike available is meaningless if it doesn't fit you properly Our system allows you to select from a range of cockpit bar width and stem length combinations. No other brand offers this level of customization. We also offer zero offset and 20mm offset post options.
The options are endless – customize your bike with over 40 different paint and graphic combinations, as well as selecting component options to fit your budget.
Order your SRfive online and have it shipped direct to your home or office. Like every Quintana Roo, your SRfive can be out of the box, built with just a few included tools and out on the roads in no time. We’ve also introduced our new Home.Delivery.Right shipping option, which will take your fully-built, ready-to-ride SRfive to your door.
Premium carbon overlay system and design
Wind tunnel-tested, aero engineerd
T47 bottom bracket
Light weight frame
UCI Approved
Flat-mount hydraulic brakes, with 12mm thru-axles
Wide tire ready: Up to 700 x 32c tire clearance. Capacity to run tire sizes up to 32mm.
Invisible cable routing
Fit capability
Over 40 paint and graphic combinations
Trickle-up technology
QR Lifetime Warranty
Your build. Your way.
Order online direct with full-assembly ProBox, through your local retailer or choose Home.Delivery.Right at checkout
Read SRfive Stories
We pair each Quintana Roo frame with some of the best components and drivetrains in the world. We take component specifications seriously, as the quality and performance of the components are just as important as the frames we design and produce.
Looking for a specific crank length, saddle or gearing on your new QR bike? Chat with us or contact us now! Additional charges may apply.
Fork
QR Carbon Aero
Headset
FSA
Stem
Easton EA50
Handlebars
Easton EA50
Seatpost
QR Carbon Aero, 20mm Offset*
Saddle
ISM PR2.0
Shifters
Shimano 105 R7020
Front Derailleur
Shimano 105 R7000
Rear Derailleur
Shimano 105 R7000 GS
Brakes
Shimano 105
Crankset
Shimano 105 R7000 52/36
Cassette
Shimano 105 R7000 11-30
Chain
Shimano HG601
Bottom Bracket
Praxis T47
Tires
Continental
Wheelset
Select Wheels Above
-
-
-
-
-
-
-
-
Fork
QR Carbon Aero
Headset
FSA
Stem
FSA ACR
Handlebars
Energy Compact SCR
Seatpost
QR Carbon Aero, 20mm Offset*
Saddle
ISM PN 3.0
Shifters
Ultegra R8020
Front Derailleur
Ultegra R8000
Rear Derailleur
Ultegra R8000 GS
Brakes
Ultegra
Crankset
Ultegra R8000 52/36
Cassette
Ultegra R8000 11-30
Chain
Shimano HG701
Bottom Bracket
Praxis T47
Tires
Continental 25c Folding
Wheelset
Select Wheels Above
-
-
-
-
-
-
-
-
Fork
QR Carbon Aero
Headset
FSA
Stem
FSA ACR
Handlebars
Energy Compact SCR
Seatpost
QR Carbon Aero, 20mm offset*
Saddle
ISM PN 3.0
Shifters
Ultegra R8070 Di2
Front Derailleur
Ultegra R8050 Di2
Rear Derailleur
Ultegra R8050 Di2 GS
Brakes
Ultegra
Crankset
Ultegra R8000 52/36
Cassette
Ultegra R8000 11-30
Chain
Shimano HG701
Bottom Bracket
Praxis T47
Tires
Continental 25c Folding
Wheelset
Select Wheels Above
-
-
-
-
-
-
-
-
Fork
QR Carbon Aero
Headset
FSA
Stem
FSA ACR
Handlebars
SL-K Carbon Compact
Seatpost
QR Carbon Aero, 20mm Offset*
Saddle
ISM PN 3.0
Shifters
Dura-Ace R9170 Di2
Front Derailleur
Dura-Ace Di2 R9070
Rear Derailleur
Dura-Ace R91070 Di2
Brakes
Dura-Ace
Crankset
Dura-Ace R9100 52/36
Cassette
Dura-Ace R9100 11-30
Chain
Shimano HG901
Bottom Bracket
Praxis T47
Tires
Continental GP5000 700x25c Blk
Wheelset
Select Wheels Above
-
-
-
-
-
-
-
-
*Zero offset seatpost available upon request.
Stem Length
Size XS & S — 70mm
Size M & L — 100mm
Size XL — 110mm
Crank Length
Size XS & S — 165mm
Size M & L — 172.5mm
Size XL — 175mm
Bar Width
Size XS & S — 40cm
Size M & L — 42cm
Size XL — 44cm
Find answers to common questions about bike builds, custom component selections, and shipping below. If you have any questions feel free to live-chat with us or contact us.
Shipping & Delivery Options Shipping FAQs
Can I make changes to the build kit? Absolutely. Our bikes are built to order so you can customize however you'd like. If there are components you'd really like on your bike but don't see them offered live-chat or contact us for availability and a custom quote!
Can I have a different length stem, crankarms, or different gearing? We spec different length components on our bikes based on common lengths per each size of bike. If you are looking to specify what length components or the gearing you'd like on your new Quintana Roo just live-chat or contact us and we'll get you started on a custom order.
I received my Di2 bike, but the system isn't charging?Triple check the seatpost battery/Di2 wire connection. Many times even though you think you have the wire firmly connected, give it another push and 9 times out of 10 the system comes to life.
What kind of thru-axle do I need for my stationary trainer? For use in a stationary trainer, a specific thru-axle will need to be ordered. The rear thru-axle is an E-thru standard M12x1.5, 142mm long.
Does my bike arrive assembled? The amount of assembly required depends on shipping option you select. Typically our bike assembly runs between 30 to 45 minutes. Check out our shipping and delivery options to find the best option for you and your budget.
Need help assembling, adjusting, or maintaining your SRfive? Check out our guide with self-help instructions.
Owner Guide Helpful Videos
Read the Triathlete Magazine Review

Quintana Roo SRfive Frameset

Quintana Roo adds their name to the wind-cheating road game

Road Bike Action

QUINTANA ROO SRFIVE ROAD BIKE TEST - Road Bike Action

Smooth-riding aero bike that delivers on speed and stiffness, while the handling will benefit the non-racers

road.cc

Quintana Roo SRfive 2021

From an aerodynamic history in triathlon bikes, Quintana Roo sticks to the tarmac for their new aero road bike family, led by the affordable carbon SRfive!

Bikerumor

Quintana Roo SRfive aero road bike transitions from triathlon to road racing
