Profile Design Wing 10A with 35A Extensions

We designed a disc bike for real triathletes—it's aero, stable, lightweight and adjustable with only two wrenches. Starting at $4,499, the new PRfive Disc competes at the highest level, with elevated safety and braking capabilities in any condition. With increased lateral stiffness and a more aerodynamic design, you'll be able to output more power while conserving energy for the run. The PRfive Disc gives athletes the confidence they need to perform their best. Previous winner of an Interbike Award for Triathlon Innovations of the Year, the PRfive represents all the best aero benefits of our PRsix superbike - with its design moved to a standard front end - making it not only easier for the average triathlete to mechanically work on and travel with, but also making it more affordable. For use in a stationary trainer, a specific thru-axle adapter will need to be ordered. The rear thru-axle is an E-thru standard M12x1.5, 142mm long. The adapter will be specific to the trainer you own, so please check with the trainer manufacturer if you have any questions. SHIFT+ technology Boat tail cross sections 12mm thru-axle design 30T carbon-fiber frameset Powerful disc brakes QR six-position seatpost QR aero storage containers Leading edge absent chainstay Simple wrenching and maintenance QR Lifetime Warranty Order online direct with full-assembly ProBox, through your local retailer or choose Home.Delivery.Right at checkout
Component Specs Drivetrain Upgrades Wheelset Upgrades Shipping & FAQ We pair each Quintana Roo frame with some of the best components and drivetrains in the world. We take component specifications seriously, as the quality and performance of the components are just as important as the frames we design and produce. Looking for a specific crank length, saddle or gearing on your new QR bike? Chat with us or contact us now! Additional charges may apply. *COVID availability advisory: Due to high demand during COVID-19, our industry is working hard to keep up with all parts, components and accessories. Your purchase may include unavailable parts. At that point, we will replace them with equal or better parts. Please reach out via LiveChat or email if you have any questions. Fork QR Aero Disc Carbon Headset Cane Creek IS41 Stem Profile 1/Seventeen Handlebars Profile Design Wing 10A with 35A Extensions Seatpost QR Aero Carbon Saddle ISM PS 1.0 Shifters Ultegra Di2 Front Derailleur Ultegra Di2 Rear Derailleur Ultegra Di2 Brakes TRP Spyre Disc Disc Rotors TRP-25 Center Lock 160mm Crankset Praxis Zayante Carbon-S 52-36 Cassette Ultegra 11-30 Chain Ultegra Bottom Bracket Praxis Tires Continental Kevlar Wheelset Select Wheels Above Top Tube Storage QR Top Tube Storage System QBox QR QBox Riser Kit 15mm Profile Design Riser Kit Included Fork QR Aero Disc Carbon Headset Cane Creek IS41 Stem Profile 1/Seventeen Handlebars Profile Design Wing 10A with 35A Extensions Seatpost QR Aero Carbon Saddle ISM PS 1.0 Shifters Ultegra Front Derailleur Ultegra Rear Derailleur Ultegra Brakes TRP Spyre Disc Disc Rotors TRP-25 Center Lock 160mm Crankset Praxis Zayante Carbon-S 52-36 Cassette Ultegra 11-30 Chain Ultegra Bottom Bracket Praxis Tires Continental Kevlar Wheelset Select Wheels Above Top Tube Storage QR Top Tube Storage System QBox QR QBox Riser Kit 15mm Profile Design Riser Kit Included Stem Length Size 48-50 — 70mm Size 52-54 — 90mm Size 56-58.5 — 110mm Crank Length Size 48-52 — 165mm Size 54-56 — 170mm Size 58.5 — 172.5mm Bar Width Size 48-52 — 42cm Size 54-56 — 42cm Size 58.5 — 42cm
Market-leading electronic gear shifting thanks to the Di2 system and trickle-down technology from professional-level Dura-Ace groupsets. This system ensures shifting accuracy, which provides crisp and precise shifts with every push of a button. No adjustment is required once setup. Instead of mechanical cables, high-end Di2 electronic wires relay your gear selection instantly with a push of a button. Upgrading to Di2 based system places gear shift buttons on both your aero bar extensions and base bars.
New ULTEGRA R8000 series is "pro-proven" as it is a direct trickle down from DURA-ACE mechanical groupset. As a triathlon bike component, the stress-free operation is one of the most important feature to lead all day riding comfort with braking and shifting. Mechanical groupsets do not feature gear selection changes to be made from the bars as the shifters are placed on the ends of the aero bar extensions. Upgrading to Di2 groupsets allows for electronic shifting buttons to be placed on base bars and aero extensions.
The NSW Tubeless Disc-brake wheels are aerodynamically optimized for wide tires to meet the performance needs of modern riders in search of low rolling resistance and high comfort. Throughout the development process our engineers carefully considered the rim-to-tire interface and how specific tire and rim widths affect aerodynamic performance. NSW technology adds to this legacy enhanced aero performance and tubeless compatibility, all with the benefits of disc brakes. Learn more at zipp.com.
Disc brakes are beginning to appear on the most aerodynamic bikes in the world and the SES 7.8 is ready. While most wheel manufacturers simply repurpose their rim brake optimized wheel models into disc brake wheels by covering brake tracks with decals and adding disc hubs and more spokes, this leaves substantial amounts of performance on the table. A revolutionary new disc brake specific, aerodynamic, carbon fiber triathlon and time trial wheelset. The SES 7.8 Disc is both aerodynamically and structurally optimized for use with disc brakes. Visit enve.com/products/ses-7-8/disc for more information.
The co-developed Vanquish 6 GP wheelset takes QR’s disc-brake triathlon bikes to the next level of performance. Made in HED’s Minnesota factory, the Vanquish 6 GP undergoes an in-depth quality control process. The proprietary wheels use the same patented rim shape that HED uses for all of its disc-specific wheelsets. The 6 GP shape is all-new, with a 30mm external width (21mm internal width). This results in a superior aerodynamic performance with 23-28mm tires.
The Reynolds AR58/62 disc brake carbon road bike wheelset provides the ultimate aerodynamic advantage for time trials and triathlons. The rims are individually optimized for front and rear. The front is narrower to reduce frontal area and shaped to deliver stable crosswind handling. The rear is built with a 21mm rim channel to fit wider tires for reduced rolling resistance and the 61mm heights provides maximum lift to sail through the wind.
The Shimano WH-RS370-TL Road/Cyclocross wheelset for tubeless with disc Center-Lock and 12mm E-thru version - Offering all the technology of Shimano wheels at an economical price. Find answers to common questions about bike builds, custom component selections, and shipping below. If you have any questions feel free to live-chat with us or contact us. Shipping & Delivery Options Shipping FAQs Can I make changes to the build kit? Absolutely. Our bikes are built to order so you can customize however you'd like. If there are components you'd really like on your bike but don't see them offered live-chat or contact us for availability and a custom quote! Can I have a different length stem, crankarms, or different gearing? We spec different length components on our bikes based on common lengths per each size of bike. If you are looking to specify what length components or the gearing you'd like on your new Quintana Roo just live-chat or contact us and we'll get you started on a custom order. I received my Di2 bike, but the system isn't charging?Triple check the seatpost battery/Di2 wire connection. Many times even though you think you have the wire firmly connected, give it another push and 9 times out of 10 the system comes to life. What kind of thru-axle do I need for my stationary trainer? For use in a stationary trainer, a specific thru-axle will need to be ordered. The rear thru-axle is an E-thru standard M12x1.5, 142mm long. Does my bike arrive assembled? The amount of assembly required depends on shipping option you select. Typically our bike assembly runs between 30 to 45 minutes. Check out our shipping and delivery options to find the best option for you and your budget. Other Helpful Videos

Quintana Roo PRfive Disc - Ultegra Mechanical

48cm

50cm

52cm

54cm

56cm

58.5cm

A carbon frame triathlon bike with high-end components and trp mechanical disc brakes.

Frame	Carbon
Fork	Carbon
Wheels	700c Aluminum
Drivetrain	2 × 11
Groupset	Ultegra
Brakes	TRP Mechanical Disc

Frame	30T carbon-fiber frameset
Fork	QR Aero Disc Carbon
Bottom Bracket	Praxis
Headset	Cane Creek IS41
Stem	Profile 1/Seventeen
Handlebar	Profile Design Wing 10A with 35A Extensions
Saddle	ISM PS 1.0
Seatpost	QR Aero Carbon Type: Rigid

Rear Derailleur	Ultegra
Front Derailleur	Ultegra
Crank	Praxis Zayante Carbon-S 52-36
Shifters	Ultegra
Cassette	Ultegra 11-30 11spd
Chain	Ultegra
Brakes	TRP Spyre Disc Type: TRP Mechanical Disc

Rims	Select Wheels Above
Tires	Continental Kevlar
Disc Rotors	TRP-25 Center Lock 160mm

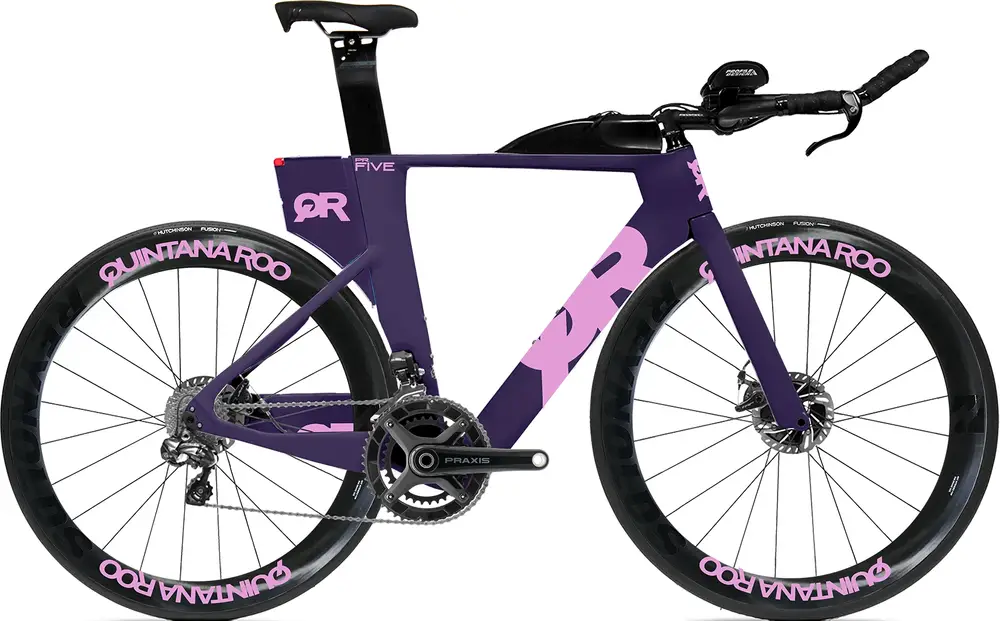

2021 Quintana RooPRfive Disc - Ultegra Mechanical

2021 Quintana Roo
PRfive Disc - Ultegra Mechanical
