Today’s Deals2025 Polygon

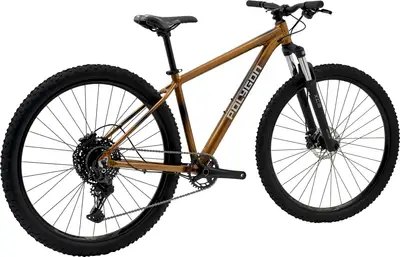

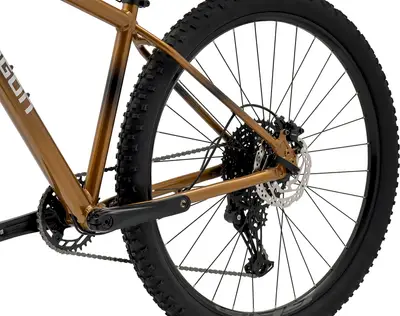

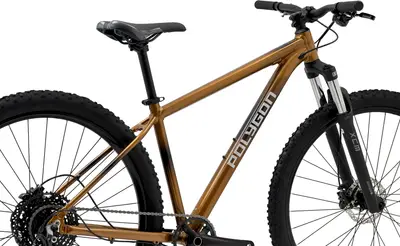

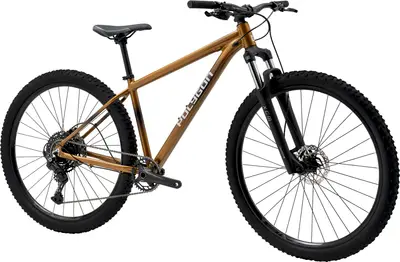

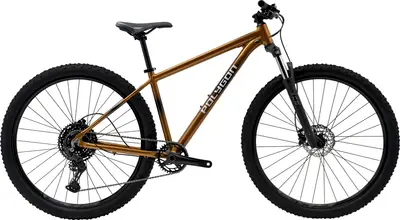

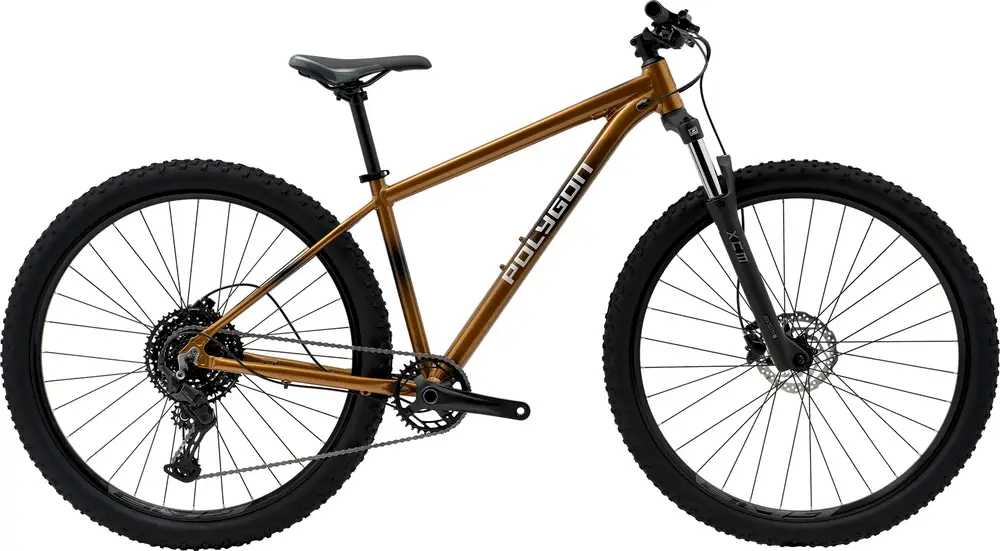

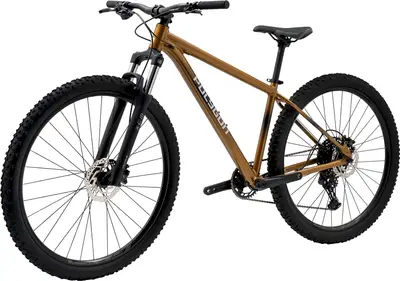

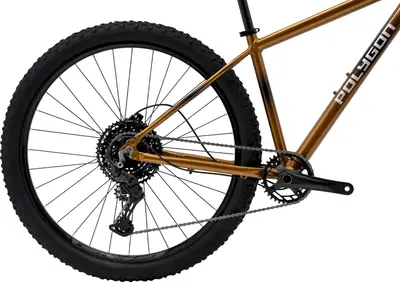

Cascade 5
A 27.5″ / 29″ aluminum frame hardtail crosscountry bike with mid-range components.
Compare the full range
Manufacturer Price
$649| Frame | Aluminum |
|---|---|
| Suspension | Hardtail, 100mm |
| Fork | Suntour XCM |
| Wheels | 27.5″ / 29″ Aluminum |
| Drivetrain | 1 × 10 |
| Groupset | CUES |
| Brakes | Shimano Hydraulic Disc |
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full CASCADE model range
View Comparison4'9" – 5'2"
5'0" – 5'6"
5'4" – 5'10"
5'8" – 6'2"
6'0" – 6'6"
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
| Frame | ALX XC, Threaded BSA 68 mm, Internal Brake & Shifter Routing, 44/44 mm Head Tube ID, M10x135 mm Rear Hub Spacing BB Standard: BSA, 68mm, Threaded Tire Clearance: 2.25" |
|---|---|
| Fork | Suntour XCM32, Coil Spring, 100 mm Travel, Preload Adjust, Alloy Straight Steerer, 9x100 mm QR, Disc Brake Post Mount 160mm Travel: 100mm Spring Type: Coil |
| Bottom Bracket | BSA, 68mm, threaded |
| Headset | Zero Stack w/ Sealed Bearing, ZS44/28.6 | ZS44/30 |
| Stem | Polygon Alloy, 45 mm Extension, 31.8 mm Clamp Bore, 3° Rise |
| Handlebar | Polygon Steel, 680 mm Width, 31.8 mm Clamp Bore, 40 mm Rise, 8° Bend |
| Saddle | Polygon Black, Steel Rail ø7 mm |
| Seatpost | Polygon Alloy, 27.2 x 350 mm, 0 mm Offset Type: Rigid |
| Pedals | One-Piece PP Body |
| Rear Derailleur | Shimano CUES RD-U6000-GS, 10-Speed |
|---|---|
| Crank | 36T |
| Shifters | Shimano CUES SL-U6000, 10-Speed, Trigger |
| Cassette | Shimano CUES CS-LG300, 10-Speed, 11-48T |
| Chain | KMC X-Glide |
| Brakes | Front: Shimano MT201 Hydraulic Disc Brake, 160 mm Rotor, 6-Bolt, 2-Piston, Rear: Shimano MT201 Hydraulic Disc Brake, 160 mm Rotor, 6-Bolt, 2-Piston Type: Shimano Hydraulic Disc |
| Rims | Polygon Alloy Double Wall, 27.5"/29" , 20 mm Height, 21 mm Internal Width, 32H |
|---|---|
| Front Hub | Solon DH-802 F, 9x100 mm, 32H, Quick Release, 6-Bolt Disc |
| Rear Hub | Solon DH-802 R, 10x135 mm, 32H, Quick Release, 6-Bolt Disc |
| Tires | Deli SA-281, 27.5x2.25" / 29x2.25" |
| Disc Rotors | Shimano SM-RT26, 160 mm, 6-Bolt |
