2024 Polygon
GILI VELO

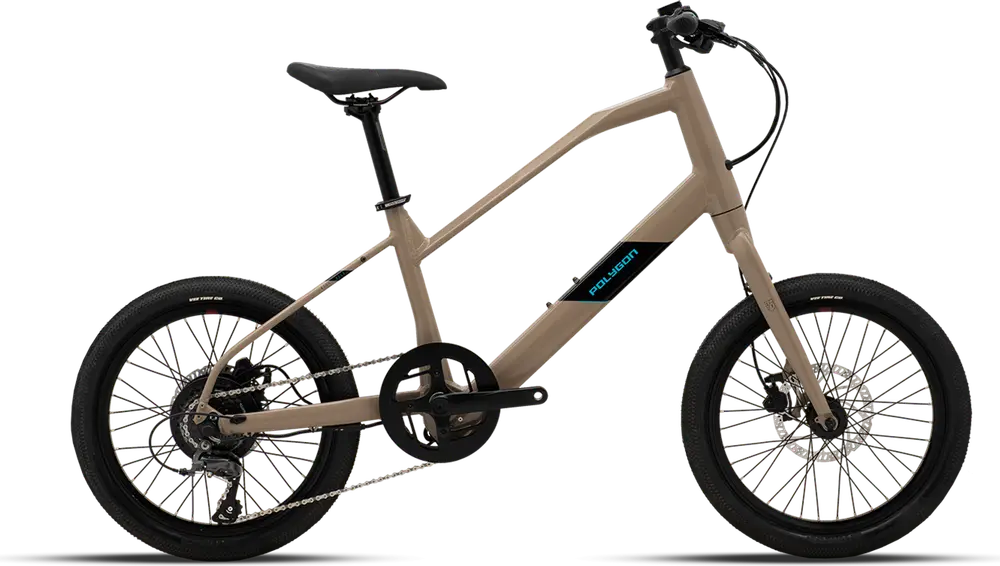

A 20″ aluminum frame commuter e-bike with mid-range components and tektro hydraulic disc brakes.
Compare the full range

Manufacturer Price

$1,279

Where to Buy

Similar Bikes

Top Comparison

Insights

Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

24 mph

GILI VELO

31 mph

Similar Bikes

Highest gear

(descending)

Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

Sizing

All Size

4'11" – 5'9"

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Geometry

Specs

Build

Frame	aluminum Colors: White; Brown
Fork	ALLOY RIGID
Headset	FEIMIN FP-H868, ZS 44/28.6 \| ZS 56/40
Stem	POLYGON SPORT, EXT: 45mm, BB: 31.8mm, R/D: 3mm
Handlebar	POLYGON SPORT, W: 640mm, BB: 31.8mm, R/D: 0mm, B: 6degree
Saddle	SELLE ROYAL, STEEL ø7mm
Seatpost	POLYGON SPORT, DxL: 30.9X400mm Type: Rigid
Pedals	ONE PIECE PP FLAT

Groupset

Rear Derailleur	SHIMANO CLARIS RD-R2000
Crank	PROWHEEL NWA48A 48T
Shifters	SHIMANO ALTUS SL-M315-R, 1X8-SPEED TRIGGER
Cassette	SHIMANO TOURNEY CS-HG200 8-SPEED 12-32T
Chain	KMC X9
Brakes	TEKTRO HYDRAULIC DISC Type: Tektro Hydraulic Disc
Brake Levers	TEKTRO HD-M275

Wheels

Rims	ALLOY DOUBLE WALL H:21mm W: 17.9mm 406-17.5 36H AV VALVE
Spokes	F: STAINLESS 14G NDS:180mm DS:182mm W/ 12mm BRASS NIPPLE / R: STAINLESS 13G NDS:127mm DS:126mm W/ 12mm BRASS NIPPLE
Front Hub	F: ALLOY 9x100mm 36H 6B
Rear Hub	F: ALLOY 9x100mm 36H 6B
Tires	VEE SPEEDSTER 20"x2.0" 406-50
Disc Rotors	TEKTRO TR180-24 180MM 6B

Electric Components

Motor	BAFANG REAR MOTOR DC MOTOR 36V 250W
Battery	SPARD YT30240-X-CAN01 36V 7AH SAMSUNG CELL SMART BMS
Display	Bafang DP C11.CAN

Rider Notes

Riders Also Viewed

First added September 18

Last updated June 21

Not listed for 345 days
