Jet Black

SHIMANO ULTEGRA FC-R8100 52/36T, CRANK ARM: 170mm (XS, S, M) / 172.5mm (L, XL)

ACX PERFORMANCE UCI APPROVED, TAPER 1-1/8" TO 1-1/2"

ALLOY THRU AXLE 12x100mm 24H SEALED BEARINGS CENTER LOCK

VISION METRON 5D ACR INTEGRATED, W: 400mm (XS, S) / 420mm (M, L) / 420mm (XL), BB: INTEGRATED, R/D: 125mm, B/R: 80mm

INTEGRATED (IS) SEALED BEARING FOR OS HEAD TUBE, IS 52/28.6 | IS 52/40

SHIMANO ULTEGRA Di2 RD-R8150 DIRECT ATTACH

ALLOY THRU AXLE 12x142mm 24H SEALED BEARINGS CENTER LOCK

CARBON 622-19 24H FOR TYRE 622-28/62 DISC TUBELESS READY

CARBON, AERO 35 x 337mm (XS) / 357mm (S, M, L, XL)

SHIMANO ULTEGRA Di2 ST-R8170, 2x12-SPEED DCL

VISION METRON 5D ACR INTEGRATED, EXT: 100mm (XS, S) / 110mm (M, L) / 120mm (XL), BB: INTEGRATED, R/D: 6degree

In our pursuit of speed, we cyclists have always seen nature as an adversary. From daunting air drag to coarse road surfaces, we sought to minimize interaction with our surroundings in hopes of achieving optimal efficiency. Helios is here to transform that paradigm because by embracing nature, we can be even faster.

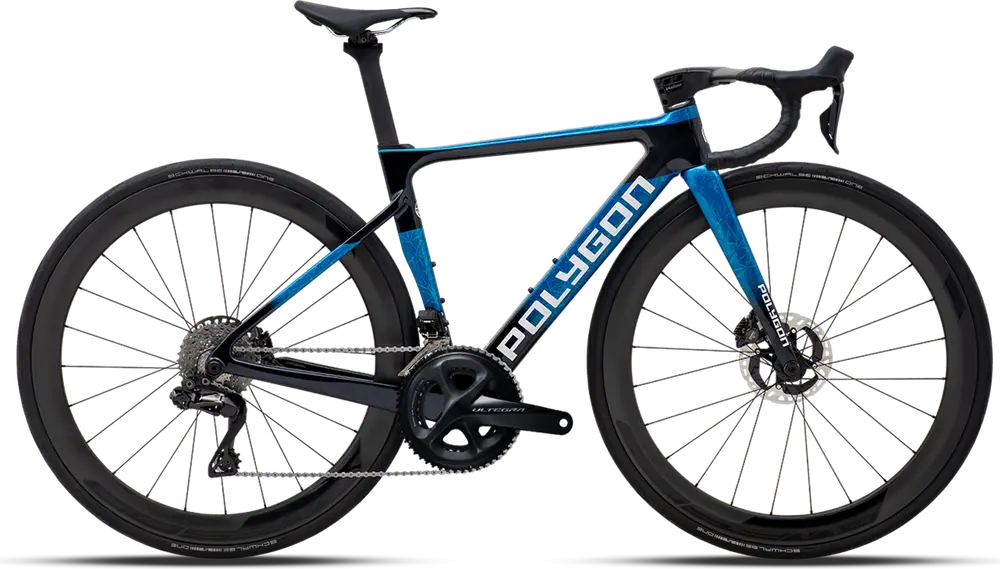

Polygon HELIOS A8X

A carbon frame race bike with high-end components and shimano ultegra hydraulic disc brakes.

Weight	1.9 lbs (frame)
Frame	Carbon
Fork	Carbon
Wheels	700c Carbon
Drivetrain	2 × 12 Electronic
Groupset	Ultegra, Ultegra Di2
Brakes	Shimano Ultegra Hydraulic Disc

Frame	carbon BB Standard: BB86/BB92, Press Fit Color: Jet Black
Fork	ACX PERFORMANCE UCI APPROVED, TAPER 1-1/8" TO 1-1/2"
Shock	-
Bottom Bracket	SHIMANO SM-BB92-41B, PRESSFIT BB86
Headset	INTEGRATED (IS) SEALED BEARING FOR OS HEAD TUBE, IS 52/28.6 \| IS 52/40
Stem	VISION METRON 5D ACR INTEGRATED, EXT: 100mm (XS, S) / 110mm (M, L) / 120mm (XL), BB: INTEGRATED, R/D: 6degree
Handlebar	VISION METRON 5D ACR INTEGRATED, W: 400mm (XS, S) / 420mm (M, L) / 420mm (XL), BB: INTEGRATED, R/D: 125mm, B/R: 80mm
Saddle	ENTITY FLUX2, CR-MO ø 7mm
Seatpost	CARBON, AERO 35 x 337mm (XS) / 357mm (S, M, L, XL) Type: Rigid
Pedals	-

Rear Derailleur	SHIMANO ULTEGRA Di2 RD-R8150 DIRECT ATTACH
Crank	SHIMANO ULTEGRA FC-R8100 52/36T, CRANK ARM: 170mm (XS, S, M) / 172.5mm (L, XL)
Shifters	SHIMANO ULTEGRA Di2 ST-R8170, 2x12-SPEED DCL
Cassette	SHIMANO ULTEGRA CS-R8100-12 11-34T
Chain	12-SPEED CHAIN
Brakes	SHIMANO ULTEGRA HYDRAULIC DISC Type: Shimano Ultegra Hydraulic Disc
Brake Levers	SHIMANO ULTEGRA HYDRAULIC DISC

Rims	CARBON 622-19 24H FOR TYRE 622-28/62 DISC TUBELESS READY
Spokes	STAINLESS STRAIGHT PULL BUTTE
Front Hub	ALLOY THRU AXLE 12x100mm 24H SEALED BEARINGS CENTER LOCK
Rear Hub	ALLOY THRU AXLE 12x142mm 24H SEALED BEARINGS CENTER LOCK
Tires	SCHWALBE ONE ADDIX TLE 700x28C
Disc Rotors	SHIMANO ULTEGRA HYDRAULIC DISC

2022 PolygonHELIOS A8X

2022 Polygon
HELIOS A8X
