Deep Black

CARTRIDGE BEARING W/ CAGED BEARING & 122.5mm SQUARE AXLE

SHIMANO CS-HG200 8-SPEED 12-32T CASSETTE SPROCKET

ZERO STACK (ZS) THREADLESS, ZS 44/28.6 | 44/30

SHIMANO RD-TX800 8-SPEED SGS DIRECT ATTACH

ALLOY DISC BRAKE QR9x135mm 32H 6B FOR CASSETE SPROCKET

ALLOY DOUBLE WALL AV H: 20 584x20 32H FOR TIRE 584-28/62 DISC

SHIMANO SL-M315 ALTUS 3x8 SPEED RAPID FIRE

ENTITY OE, ALLOY, E: 45MM, B: 31.8MM, R/D: 0

The Cascade 4 was created to be versatile bikes for riders who are looking for a bike to commute to work during the weekdays, and planning to go for recreational riding on the weekends. The Cascade is built with a lightweight and durable AL6 frame with modern geometry for a more comfortable ride. The component spec includes: 27.5” wheels for less rolling resistance, a 100mm travel suspension fork to smooth out the bumps while riding down fire roads, and disc brakes to keep riders in control. The new Cascade 4 is a reliable companion for day-to-day use and sport.

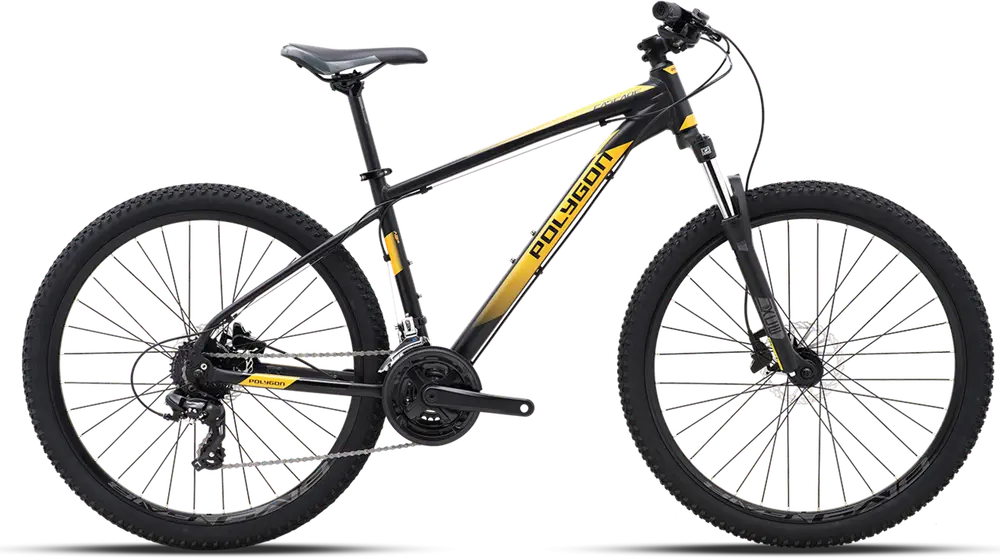

Polygon CASCADE 4

A 27.5″ aluminum frame hardtail crosscountry bike with mid-range components.

Weight	33.3 lbs
Frame	Aluminum
Suspension	Hardtail, 100mm
Fork	Suntour XCE
Wheels	27.5″ Aluminum
Drivetrain	3 × 8
Groupset	Tourney, Altus
Brakes	Hydraulic Disc

Frame	aluminum Color: Deep Black
Fork	SUNTOUR XCE28 100mm TRAVEL Travel: 100mm Spring Type: Coil
Shock	-
Bottom Bracket	CARTRIDGE BEARING W/ CAGED BEARING & 122.5mm SQUARE AXLE
Headset	ZERO STACK (ZS) THREADLESS, ZS 44/28.6 \| 44/30
Stem	ENTITY OE, ALLOY, E: 45MM, B: 31.8MM, R/D: 0
Handlebar	STEEL, W: 680MM, B: 31.8MM, R/D: 40MM
Saddle	MTB SADDLE, STEEL ø7mm
Seatpost	ENTITY, 27.2x350mm Type: Rigid
Pedals	PP CAGE W/ REFLECTOR

Rear Derailleur	SHIMANO RD-TX800 8-SPEED SGS DIRECT ATTACH
Front Derailleur	Shimano Altus FD-M313
Crank	PROWHEEL STEEL CRANK 42x34x24T
Shifters	SHIMANO SL-M315 ALTUS 3x8 SPEED RAPID FIRE
Cassette	SHIMANO CS-HG200 8-SPEED 12-32T CASSETTE SPROCKET
Chain	KMC Z-8.3
Brakes	CLARKS CLOUT, HYDRAULIC DISC BRAKE Type: Hydraulic Disc
Brake Levers	INCLUDE WITH BRAKE SET

Rims	ALLOY DOUBLE WALL AV H: 20 584x20 32H FOR TIRE 584-28/62 DISC
Spokes	STEEL 14G NDS:270 & DS:272 W/ UCP BRASS
Front Hub	ALLOY DISC BRAKE QR9x100mm 32H 6B
Rear Hub	ALLOY DISC BRAKE QR9x135mm 32H 6B FOR CASSETE SPROCKET
Tires	DELI 27.5"x2.1"
Disc Rotors	160mm 6-BOLTS

2022 PolygonCASCADE 4

2022 Polygon
CASCADE 4
