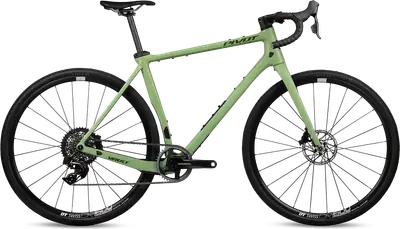

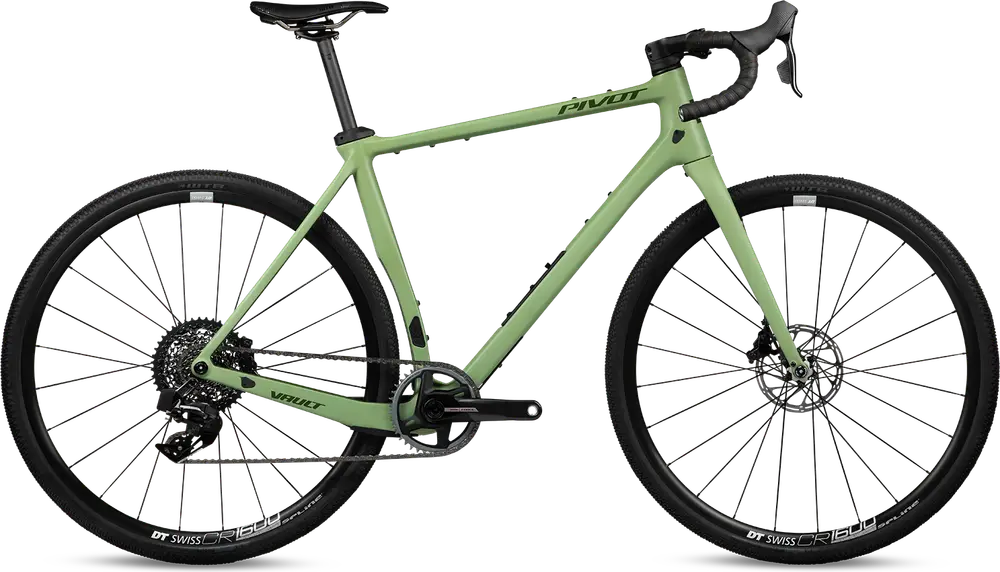

Today’s Deals2025 Pivot
VAULT XPLR
A carbon frame gravel bike with high-end components and sram force hydraulic disc brakes.
Compare the full range
Manufacturer Price
$5,499| Frame | Carbon |
|---|---|
| Suspension | Rigid |
| Fork | Carbon |
| Wheels | 700c Aluminum |
| Drivetrain | 1 × 12 Electronic |
| Groupset | Force, Force XPLR eTap |
| Brakes | SRAM Force Hydraulic Disc |
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full VAULT model range
View Comparison4'9" – 5'5"
5'4" – 5'8"
5'7" – 5'11"
5'10" – 6'3"
6'2" – 6'8"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
May 2025 · Zach Overholt
The newest Pivot Vault is the best looking one yet, but what is it like to live with? Zach reviews the gravel bike to find out.
Nov 2024 · Josh Ross
At first glance the newest Pivot Vault seems like it’s a pricepoint bike that lacks excitement. Instead it’s stable, comfortable, and an absolute blast.
May 2023 · Warren Rossiter
Versatile gravel racer with added comfort
Stunning comfort
Snappy handling
Smooth and stable at speed
Build doesn t represent great value for money

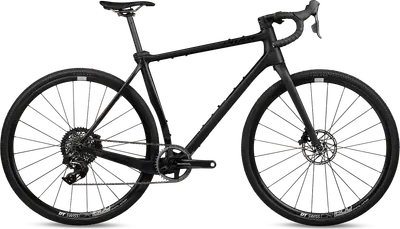

| Frame | Vault Colors: Mossy Forest; Stealth |
|---|---|
| Fork | Pivot Vault Carbon |
| Headset | Token C-Box Semi-integrated Headset |
| Stem | Phoenix Gravel Stem 31.8mm- 60mm(XXS-XS), 70mm(SM-XL) |
| Handlebar | Zipp XPLR 70 SL Carbon - 40cm (XXS-XS), 42cm (SM), 44cm (MD-LG), 46cm (XL) |
| Saddle | WTB Gravelier - Stainless Rail |
| Seatpost | Phoenix Pro ISO Flex Carbon Type: Rigid |
| Rear Derailleur | SRAM Force XPLR ETAP AXS 12-Speed |
|---|---|
| Crank | SRAM Force 1 DUB 40t |
| Shifters | SRAM Force AXS HRD 12-Speed |
| Cassette | SRAM XG-1271 10-44t |
| Chain | SRAM Force Flattop 12-Speed |
| Brakes | SRAM Force AXS HRD 2-piston Type: SRAM Force Hydraulic Disc |
| Rims | DT Swiss ER 1600 Spline 23mm - 700C, 12x100 F/12x142 R |
|---|---|
| Tires | WTB Vulpine 700c x 40mm TCS Light/Fast Rolling 120TPI Dual DNA SG2, WTB Vulpine 700c x 40mm TCS Light/Fast Rolling 120TPI Dual DNA GS2 |
| Disc Rotors | SRAM Centerline CenterLock - 160mm, SRAM Centerline CenterLock - 160mm |
First added September 19
Last updated June 21
Not listed for 345 days
