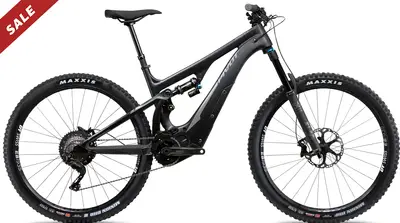

2020 Pivot Shuttle Team XTR

Ultra high-end component level carbon frame enduro e-bike

View on pivotcycles.com

2020 Pivot Shuttle Team XTR
  • MSRP $10,499
  • Suspension Full
  • Front Travel 160mm
  • Frame Carbon
  • Fork 
    Fox Factory Float 36
  • Wheels 29″
  • Drivetrain 1 × 12
  • Groupset 
    Shimano XTR
  • Motor Shimano 250W 70Nm
  • Brakes Hydraulic Disc
  • Seatpost Dropper post
Gearing

1 × 12 — 12 speed

2020 Pivot Shuttle Team XTR
29 mph
Similar Bikes
26 mph

The 2020 Shuttle Team XTR is geared about the same as similar bikes for riding up hills.

Similar bikes won‘t keep up with the 2020 Shuttle Team XTR while riding downhill or sprinting.

Estimated Spec Level
est. spec level →$0$2,000$4,000$6,000$8,000$10,000
This bike
Other enduro bikes

Estimated spec level of the Shuttle Team XTR compared to other enduro bikes. 99 Spokes analyzes the build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more to estimate the overall spec level of each bike.  Learn more »

Geometry
Build
FrameShuttle
ForkFox Factory E-MTB 36 29", 44mm offset, FIT4 - 160mm
Rear ShockFox Factory Float DPX2
HeadsetPivot Precision Sealed Cartridge
StemPhoenix Team Enduro/Trail
HandlebarPhoenix Team Low Rise Carbon - 760mm
SaddlePhoenix WTB Pro Hightail Trail (SM), Phoenix WTB Pro Vigo (MD-XL)
SeatpostFox Transfer 125mm (SM), Fox Transfer 150mm (MD-XL)
GripsPhoenix Team Padloc
Components
Rear DerailleurShimano XTR SGS 12-Speed
ShiftersShimano XTR M9100 ISPEC 12-Speed
CrankShimano XT M8050 w/ Shimano E-MTB 34t
CassetteShimano XTR M9100 10-51t
ChainShimano CN-M9100 12-Speed
BrakesShimano XT M8020 4-piston
Disk RotorsShimano XT RT81 CenterLock - 203mm Shimano RT-EM810 CenterLock - 180mm
Wheels
RimsDT Swiss EB 1535, 30mm - 29"
TiresMaxxis Minion DHF 29" x 2.5" TR, EXO+, 3CT Maxxis Minion DHR II 29" x 2.4" TR, EXO+, 3CT
Electric Components
MotorShimano Steps DU-E8000
