2020 Pivot Shuttle Race XT

High-end component level carbon frame enduro e-bike

View on pivotcycles.com

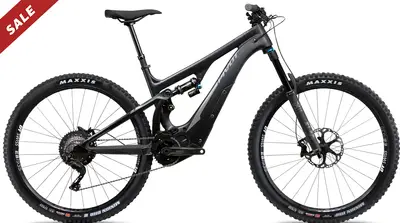

2020 Pivot Shuttle Race XT
  • MSRP $7,899
  • Suspension Full
  • Front Travel 160mm
  • Frame Carbon
  • Fork 
    Fox Performance Float 36
  • Wheels 29″
  • Drivetrain 1 × 11
  • Groupset 
    Shimano XT
  • Motor Shimano 250W 60Nm
  • Brakes Hydraulic Disc
  • Seatpost Dropper post
Gearing

1 × 11 — 11 speed

2020 Pivot Shuttle Race XT
27 mph
Similar Bikes
26 mph

Similar bikes are easier to ride up hills than the 2020 Shuttle Race XT.

Similar bikes won‘t keep up with the 2020 Shuttle Race XT while riding downhill or sprinting.

Estimated Spec Level
est. spec level →$0$1,000$2,000$3,000$4,000$5,000$6,000$7,000$8,000
This bike
Other enduro bikes

Estimated spec level of the Shuttle Race XT compared to other enduro bikes. 99 Spokes analyzes the build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more to estimate the overall spec level of each bike.  Learn more »

Geometry
Build
FrameShuttle
ForkFox Performance E-MTB 36 29", 44mm offset, GRIP - 160mm
Rear ShockFox Performance Float DPX2
HeadsetPivot Precision Sealed Cartridge
StemPhoenix Team Enduro/Trail
HandlebarPhoenix Race Low Rise Aluminum - 750mm
SaddlePhoenix WTB Race Hightail Trail (SM), Phoenix WTB Race Vigo (MD-XL)
SeatpostKS Rage I 125mm (SM), KS Rage I 150mm (MD-XL)
GripsPhoenix Team Padloc
Components
Rear DerailleurShimano XT GS 11-Speed
ShiftersShimano SLX M7000 11-Speed
CrankShimano E8000 w/ Samox SB+ 34t
CassetteShimano M-7000 11-46t
ChainShimano E8000 11-Speed
BrakesShimano MT520 4-piston
Disk RotorsShimano RT64 CenterLock - 203mm Shimano RT-EM600 CenterLock 180mm
Wheels
RimsDT Swiss EB 1935, 30mm - 29"
TiresMaxxis Minion DHF 29" x 2.5" TR, EXO+, 3CT Maxxis Minion DHR II 29" x 2.4" TR, EXO+, 3CT
Electric Components
MotorShimano Steps DU-E7000
