2018 Pivot

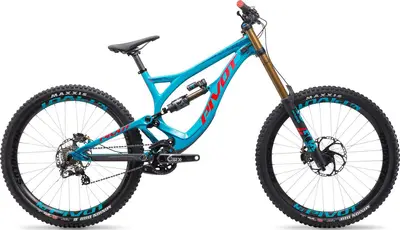

Phoenix DH Carbon Zee
A 27.5″ carbon frame full suspension downhill bike with high-end components.
Compare the full range
Manufacturer Price
$5,399| Frame | Carbon |
|---|---|
| Suspension | Full, 204 / 200mm |
| Fork | RockShox BoXXer |
| Shock | Fox Float X2 Performance |
| Wheels | 27.5″ Aluminum |
| Drivetrain | 1 × 10 |
| Groupset | Zee |
| Brakes | Hydraulic Disc |
For This Bike
5'4" – 5'9"
5'7" – 6'0"
5'10" – 6'3"
6'1" – 6'8"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Jan 2019 · Bturman
You'll be grinning ear to ear the first time you smash a corner on the 'Best Park Bike' in Vital MTB's DH Test Sessions.
Feb 2016
Pivot's Phoenix Carbon DH rig has received a handful of updates.
Feb 2016
A lighter frame, increased tire clearance, and improved sizing sets newly refreshed 2016 Pivot Phoenix DH Carbon apart from its predecessor. - Mtbr.com
| Frame | Carbon Fiber BB Standard: BB86/BB92, Press Fit |
|---|---|
| Fork | RockShox BoXXer RC Travel: 200mm Spring Type: Air |
| Shock | FOX Performance Float X2 Travel: 204mm Spring Type: Air |
| Bottom Bracket | Shimano pressfit |
| Headset | Pivot precision DH sealed bearings |
| Stem | Phoenix DH Direct Mount, aluminum, 46mm - 49mm adjustable length, 35mm width |
| Handlebar | Phoenix Race, aluminum, 35mm diameter, 800mm width |
| Saddle | Pivot WTB Hightail Sport |
| Seatpost | Phoenix Sport Alloy Type: Rigid |
| Pedals | N/A |
| Grips | Phoenix Team Padloc |
| Rear Derailleur | Shimano Zee, 10-speed |
|---|---|
| Front Derailleur | N/A |
| Crank | Shimano Zee, 165mm length |
| Shifters | Shimano Zee |
| Cassette | Shimano CS-5700 11-28 tooth, 10-speed |
| Chain | Shimano 10-speed |
| Chain Guide | e*thirteen LG1+ |
| Brakes | Shimano Zee, 203mm front / 180mm rear rotors Type: Hydraulic Disc |
| Brake Levers | Shimano Zee |
| Rims | ADD Comp |
|---|---|
| Front Hub | Hayes 275 |
| Rear Hub | Hayes 275 |
| Tires | Front: Maxxis Minion DHF 2.5" 3C DH casing, Maxx Grip, tubeless ready, Rear: Maxxis Minion DHR II 2.4" 3C DH casing, Maxx Grip, tubeless ready |
