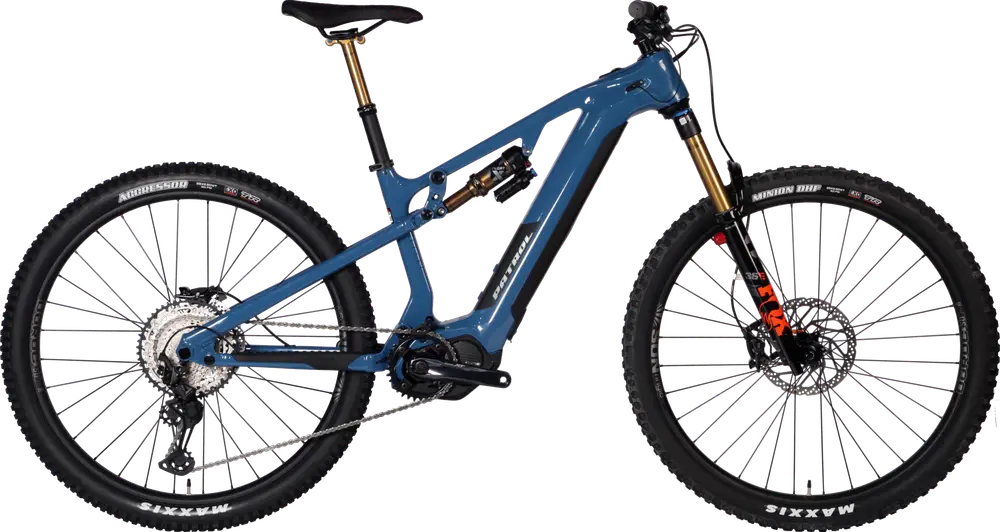

2026 Patrol

E-five

A 29″ carbon frame full suspension trail e-bike with high-end components.

FrameCarbon
SuspensionFull, 130 / 150mm
ForkFox Factory Float 36
ShockFox Float X Factory
Wheels29″ Aluminum
Drivetrain1 × 12
GroupsetXT
MotorShimano 500W 85Nm mid-drive
BatteryShimano 630Wh
BrakesHydraulic Disc
SeatpostDropper
View on patrolmountain.comLearn about Patrol
Add to Comparison
Shop with an Expert at Upway
Where to Buy
Similar Bikes
Top Comparison

View more similar bikes →

Insights
Ride Feel

Based on frame geometry and build specs.

Terrain
easyextreme
Handling
nimblestable
E-five
Other Trail bikes
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

24 mph

E-five

26 mph

Similar Bikes

Highest gear

(descending)

Sizing
SM

5'2" – 5'8"

MD

5'6" – 5'11"

LG

5'10" – 6'3"

XL

6'1" – 6'7"

🐐 Estimated

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Geometry
Specs
Build
Frame

PATROL carbon front, alloy rear. Electric trail, 12×148 mm, 130mm travel. Oversize 1.8in headtube.

Fork

FOX 36 E Factory, 150mm travel

Travel: 150mm

Spring Type: Air

Shock

FOX Float X Factory

Travel: 130mm

Seatpost

FOX Transfer Factory, 31.6mm, 125mm

Type: Dropper

Groupset
Rear Derailleur

SHIMANO Deore XT M8100, 12s

Crank

SHIMANO FC-M8150, SM-CRE80-12-SB, 34t

Shifters

SHIMANO Deore XT M8100-R

Cassette

SHIMANO SLX M7100, 12s, 12-51t

Brakes

Hydraulic Disc

Type: Hydraulic Disc

Wheels
Rims

SUNringlé Düroc SD37 rims with SHIMANO SLX hubs, Superboost rear, Boost front.

Tires

VEE Tire Co. Attack HPL, 29×2.50

Electric Components
Motor

SHIMANO Steps DU-EP800

Battery

SHIMANO BT-E8036, 630Wh

Rider Notes
Riders Also Viewed

First added February 7

Last updated May 30
