2020 Patrol
E-Six S

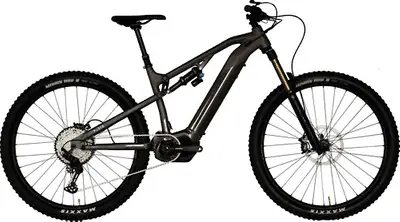

A 29″ aluminum frame full suspension enduro e-bike with high-end components.
Compare the full range
| Frame | Aluminum |
|---|---|
| Suspension | Full, 150 / 160mm |
| Fork | Fox Factory Float 36 |
| Shock | Fox Float DPX2 Factory |
| Wheels | 29″ Aluminum |
| Drivetrain | 1 × 12 |
| Groupset | XT, Shimano |
| Motor | Shimano 250W 70Nm mid-drive |
| Brakes | Hydraulic Disc |
| Seatpost | Dropper |
For This Bike
5'2" – 5'8"
5'6" – 5'11"
5'10" – 6'3"
6'1" – 6'7"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
| Frame | Aluminum |
|---|---|
| Fork | FOX 36 Factory E-Bike, Kashima Travel: 160mm Spring Type: Air |
| Shock | FOX DPX2 Factory E-Bike, 3-position lever, Kashima, 7.875" x 2.25" Travel: 150mm Spring Type: Air |
| Seatpost | FOX Transfer Factory, Travel: 125mm on S/M, 150mm on L/XL Type: Dropper |
| Pedals | None |
| Rear Derailleur | Shimano XT M8100, 12-speed |
|---|---|
| Front Derailleur | None |
| Crank | Shimano E8050 |
| Shifters | Shimano XT M8100, 12-speed |
| Cassette | Shimano SLX M7100, 12-speed, 10-51 tooth |
| Chain Guide | None |
| Brakes | Magura MT5N, 4-piston Type: Hydraulic Disc |
| Brake Levers | Magura MT5N |
| Rims | SUNringlé Düroc 40 |
|---|---|
| Front Hub | Shimano |
| Rear Hub | Shimano |
| Tires | Maxxis Minion DHR II 29" x 2.6" WT, 3C, EXO+, TR |
| Motor | Shimano STEPS E8000 |
|---|---|
| Battery | SMP, 36V |
Last updated May 14
Not listed for 1,429 days
