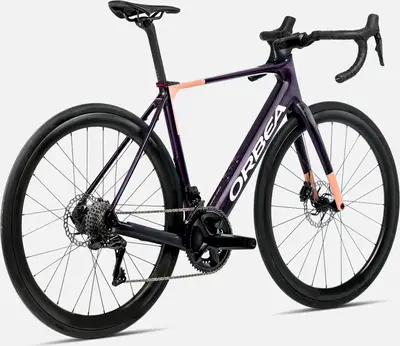

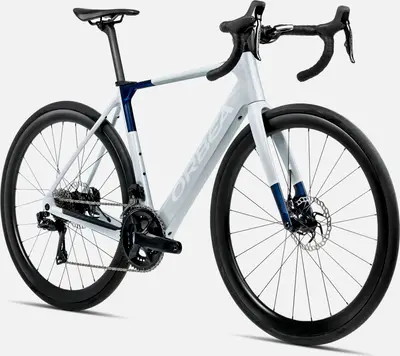

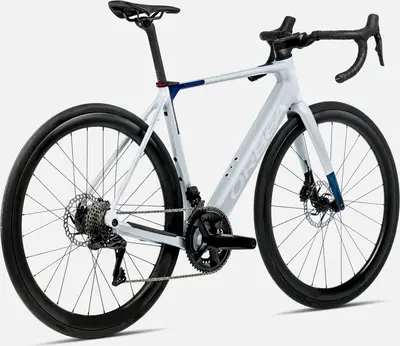

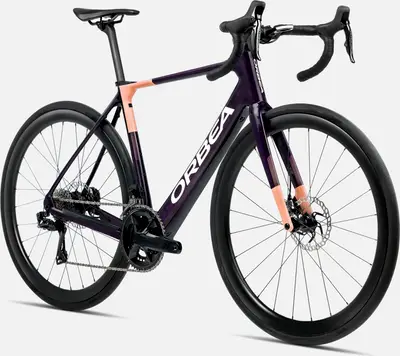

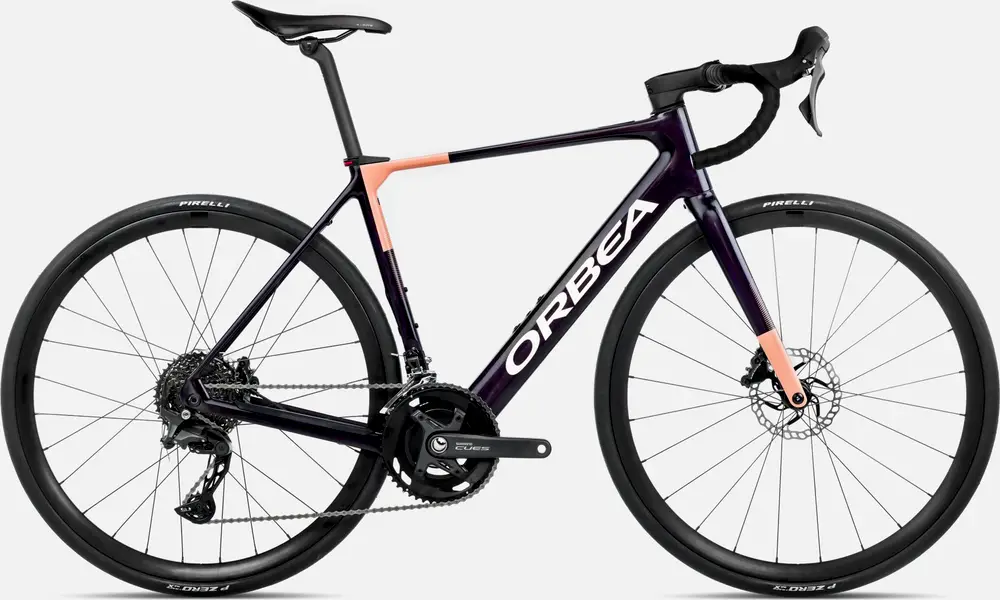

Today’s Deals2025 Orbea
GAIN M40
A carbon frame endurance e-bike with upper mid-range components and shimano hydraulic disc brakes.
Compare the full range
Manufacturer Price
£4,999($6,726)| Frame | Carbon |
|---|---|
| Fork | Carbon |
| Wheels | 700c Aluminum |
| Drivetrain | 2 × 10 |
| Groupset | CUES |
| Motor | MAHLE 55Nm hub-drive |
| Battery | MAHLE 353Wh |
| Brakes | Shimano Hydraulic Disc |
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full GAIN model range
View Comparison5'2" – 5'6"
5'4" – 5'9"
5'6" – 5'11"
5'9" – 6'2"
6'0" – 6'4"
6'1" – 6'5"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Summary
The Orbea Gain is a lightweight endurance e-road bike featuring the Mahle X20 hub drive motor for smooth, natural power delivery that enhances rather than dominates the riding experience. Its geometry is optimized for balanced handling and comfort, with clearance for wider tires and integrated lights for practicality. Reviewers praise its ability to provide substantial assistance while maintaining a natural ride feel, making it ideal for extended rides and varied terrain.
Lightweight Mahle X20 hub drive motor
Natural and smooth power delivery
Balanced geometry for excellent handling
Integrated front and rear lights
Customizable through Orbea's MyO program
Heavier than some high-end e-road bikes
Limited to 35 mm tire clearance
Firmer rear due to rear hub motor weight
Orbea gives their versatile Gain road & gravel ebike a lighter and stealthy power boost with an upgrade to the Mahle X20 – the 'lightest e-bike drive system on the market'
BikerumorThe Gain’s ride feel outclasses every e-road bike I’ve tested in the past
BikeRadarThe new Gain sure doesn’t look like an e-bike.
Cycling TipsIt’s intended to allow you to get out and still have a decent intensity cardio workout, but without going into the red – more like you’re just having a really good day on the bike, as opposed to feeling superhuman.
VeloFeedback?
View all reviews
Aug 2023 · Warren Rossiter
Orbea’s latest premium lightweight e-road bike
Clever system
Light weight
Impressive range
Superbike build
Dura ace di2 build might be overkill
Jan 2023 · Cory Benson
2023 Orbea Gain carbon ebikes get lighter, more powerful Mahle X20 upgrade, along with other refinements for better road & gravel riding...
Jan 2023 · Dave Everett
It's 2023, and Shoddy Dave's temporarily traded in his old road racing ways for Orbea's new e-road bike.
Jan 2023 · Dave Everett
It's 2023, and Shoddy Dave's temporarily traded in his old road racing ways for Orbea's new e-road bike.
| Frame | Orbea Gain Carbon OMR monocoque structure, Integrated Seat clamp with STVZO light, ICR cable routing, Thru Axle 12x142mm rear, thread M12x2 P1, Flat Mount disc, 700x35 max tyre, BB386 EVO, Mahle X20 AMC plug. BB Standard: BB86/BB92, Press Fit Colors: Fantasy Purple Carbon View (Gloss) - Orange Cloud (Matt); Halo Silver (Matt) - Blue Carbon View (Gloss); Customizable |
|---|---|
| Fork | Gain OMR carbon fork, 700x35 maximun tyre, Flat Mount disc, Thru Axle 12x100mm, thread M12x2 P1 |
| Bottom Bracket | BB86/BB92, press-fit |
| Stem | OC Road Performance RP10, -8º |
| Handlebar | OC Road Performance RP21 Alu SL, Reach 80, Drop 125 |
| Saddle | Fizik Aliante R5 |
| Seatpost | OC Performance XP10-S Carbon, 27.2mm, Setback 20 Type: Rigid |
| Rear Derailleur | Shimano Cues U6020 SGS Shadow |
|---|---|
| Front Derailleur | Shimano Cues U6030 |
| Crank | Shimano Cues U6040 34x50t |
| Shifters | Shimano U6030 |
| Cassette | Shimano CS-LG400 11-39t 10-Speed |
| Chain | Shimano LG500 |
| Brakes | Shimano U6030 Hydraulic Disc Type: Shimano Hydraulic Disc |
| Rims | Alloy, Tubeless, 700c, 21c |
|---|---|
| Tires | Pirelli P ZERO™ Race X SmartEVO TLR 700x30c |
| Motor | Mahle motor hub X20, ALC |
|---|---|
| Battery | Mahle iX350 36V 353Wh |
| Remote | Mahle ONE Head Unit (BT/ANT+) |
| Display | Mahle Pulsar One monochrome ANT+ LEV |
| Charger | Mahle Active Charger up to 4A |
| Lights | Front: Front position light, on display holder, COB Led, On/Off, 60 Lumen, ECE50., Rear: Rear position light, on saddle clamp, COB Led, On/Off, 12 Lumen. STVZO |
|---|
