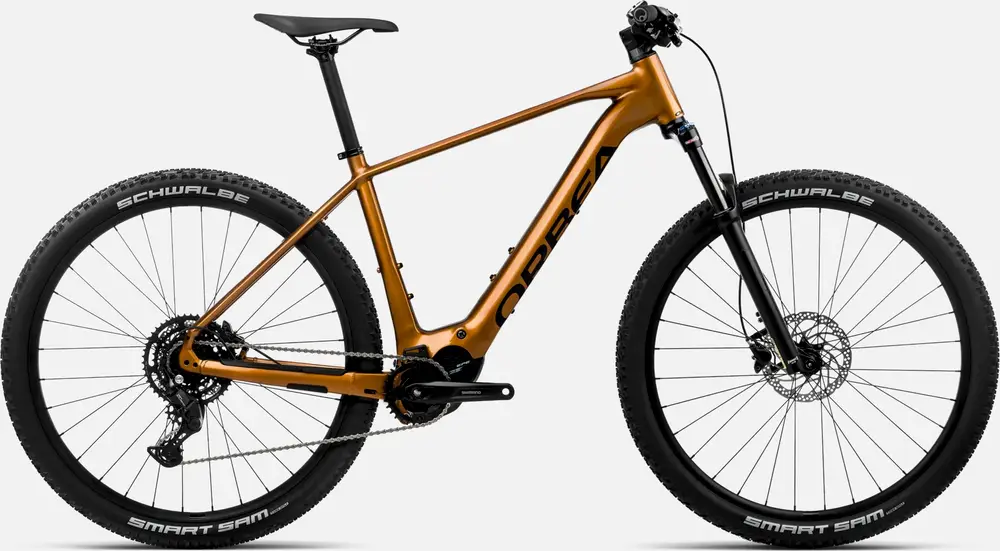

2024 Orbea

URRUN 40

A 29″ aluminum frame hardtail trail e-bike with mid-range components.
Compare the full range

Manufacturer Price

£2,999($4,022)
FrameAluminum
SuspensionHardtail, 120mm
ForkSuntour XCR
Wheels29″ Aluminum
Drivetrain1 × 9
GroupsetCUES
MotorShimano 600W 85Nm mid-drive
Battery540Wh
BrakesShimano Hydraulic Disc
View on orbea.comLearn about Orbea
Add to Comparison
Shop with an Expert at Upway
Where to Buy
Similar Bikes
Top Comparison

View more similar bikes →

Insights
Ride Feel

Based on frame geometry and build specs.

Terrain
easyextreme
Handling
nimblestable
URRUN 40
Other Trail bikes
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

25 mph

URRUN 40

26 mph

Similar Bikes

Highest gear

(descending)

Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

Compare the full URRUN model range

View Comparison
Sizing
SM

5'2" – 5'8"

MD

5'6" – 5'11"

LG

5'10" – 6'3"

XL

6'1" – 6'7"

🐐 Estimated

Rider Fit Notes
  • 6'2", size LG, Just right
  • 5'6", size SM, Too large
View details
Reviews
BikeRadar
Orbea Urrun 10 review | BikeRadar

Sep 2022 · Mick Kirkman

Spanish brand’s top-tier electric hardtail with lightweight motor and battery

Highs

  • Smooth welded monocoque chassis looks the business

  • Proprietary shimano ep8 rs system delivers smooth power and massive range

Lows

  • Steering and handling feels twitchy and unstable

  • Frame is rock solid and beats you up a bit on rough trails

Read Review

Geometry
Specs
Build
Frame

Orbea Urrun, Shimano Steps, Integrated battery, Hydroformed Alloy 6061 series Internal Cable Routing, Boost 148x12, carrier and kickstand compatible

BB Standard: STEPS, Press Fit

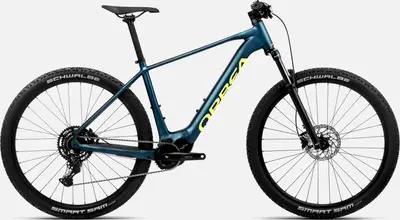

Colors: Borealis Blue (Matt) - Luminous Yellow (Gloss); Glitter Anthracite (Gloss) - Black (Matt); Leo Orange (Gloss) - Black (Matt)

Fork

SR Suntour XCR32 LO Coil 120mm Q15x110 Boost

Travel: 120mm

Spring Type: Coil

Bottom Bracket

STEPS, press-fit

Headset

FSA 1-1/2" Integrated Aluminium Cup

Stem

Alloy forged, 35mm interface, -6º, ICR

Handlebar

OC Mountain Control MC31, Rise20, Width 800

Saddle

Fortune QF-3091

Seatpost

Alloy 31.6x300mm Offset 0

Type: Rigid

Pedals

VP-537 Black

Groupset
Rear Derailleur

Shimano Cues U4000 GS Shadow

Crank

Alloy EP8 32t

Shifters

Shimano Cues SL-U4000

Cassette

Shimano CS-LG300 11-46t 9-Speed

Chain

Shimano LG500

Chain Guide

Orbea Rise chainguide

Brakes

Shimano MT201 Hydraulic Disc

Type: Shimano Hydraulic Disc

Wheels
Rims

Alloy, Tubeless, 29", 29c, 32H

Tires

Schwalbe Smart Sam Performance, 29x2.35, Addix, Black

Electric Components
Motor

Shimano EP600-RS

Battery

Orbea Internal 540Wh (Optional 250 Wh Range Extender)

Display

Shimano EN500

Charger

Orbea 2.Generation eBike Smart charger 42V/2-4A
