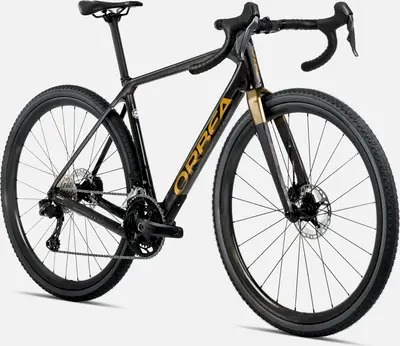

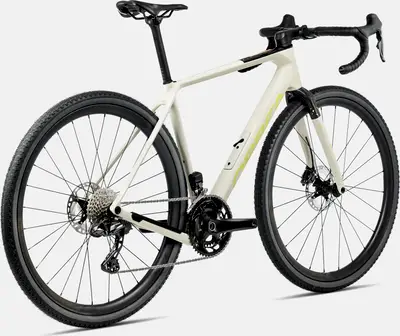

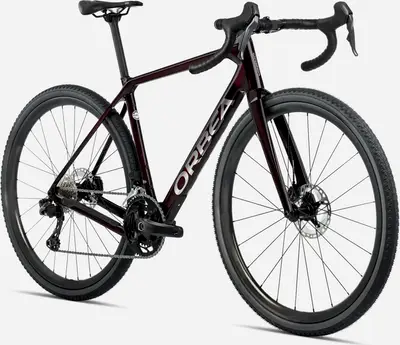

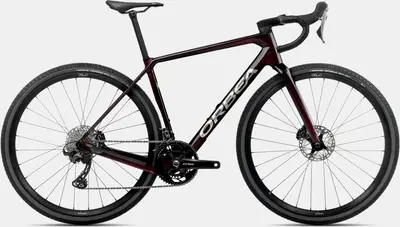

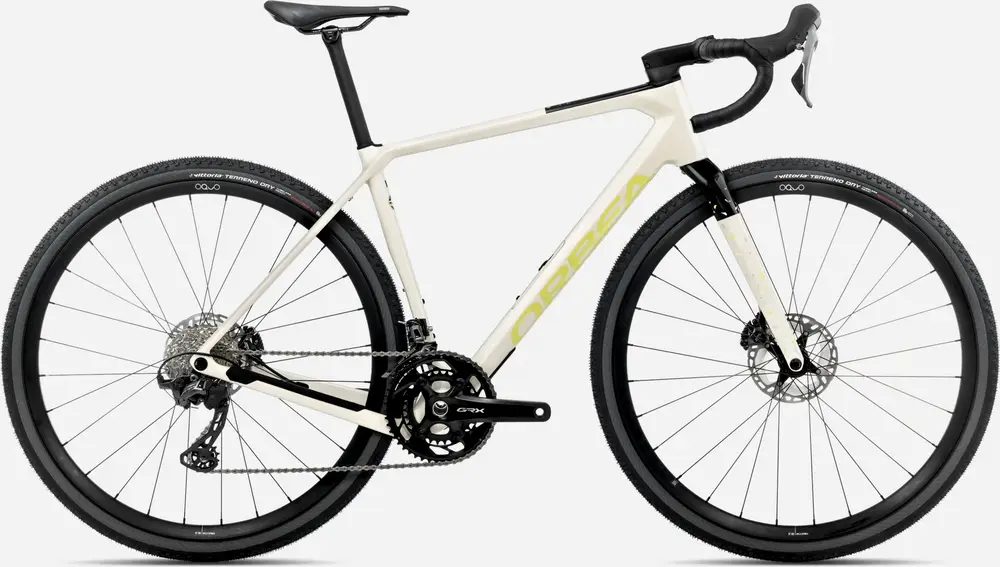

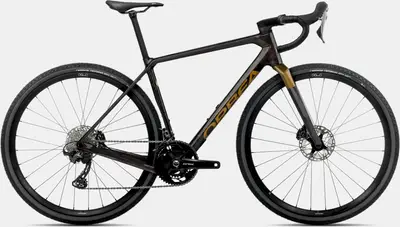

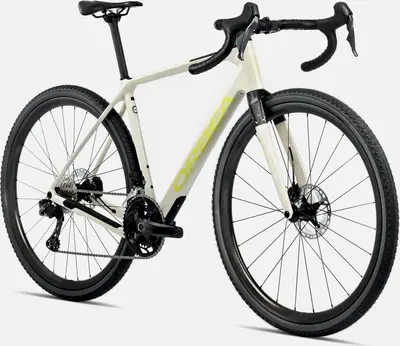

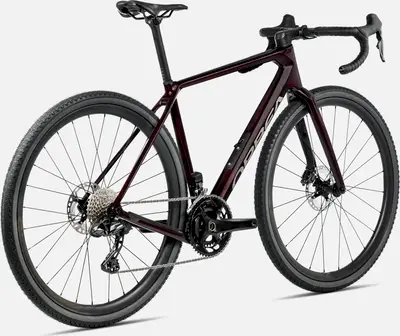

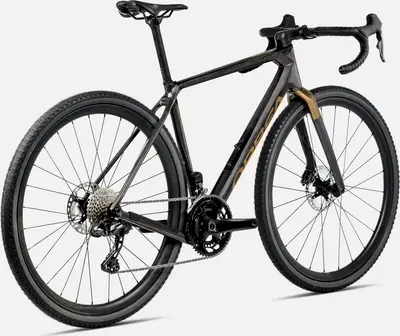

TERRA M20TEAM
A carbon frame gravel bike with high-end components and hydraulic disc brakes.
Compare the full range
Manufacturer Price
$3,999Frame | Carbon |
---|---|
Suspension | Rigid |
Fork | Carbon |
Wheels | 700c Aluminum |
Drivetrain | 2 × 12 |
Groupset | GRX 800 |
Brakes | Hydraulic Disc |
For This Bike
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full TERRA model range
View Comparison5'1" – 5'7"
5'4" – 5'9"
5'7" – 6'0"
5'10" – 6'2"
6'0" – 6'4"
6'2" – 6'10"
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Jan 2024 · David Feddersen
A generalist that’s up for everything, the Orbea Terra M21e Team Custom M tries to shake up the adventure gravel bike group test with its versatility. Does it succeed?
Caters to a wide range of applications from touring to racing
Customisable paint job via the online configurator
Comfortable even without suspension
Limited off-road performance of the tires
Jun 2023 · Warren Rossiter
One of the most competent all-round gravel bikes available today
Compliant comfortable ride
Quick handling
Fast and most importantly fun
Solid wheels would bear an upgrade
Frame | Orbea Terra carbon OMR Disc, monocoque construction, HS 1,5", PF30, powermeter compatible, Thru Axle 12x142mm rear, thread M12x2 P1, Internal Cable Routing, LOCKR service box BB Standard: PF30, Press Fit Colors: Ivory White - Spicy Lime (Gloss); Cosmic Carbon View - Metallic Olive Green (Gloss); Wine Red Carbon View (Gloss); Customizable |
---|---|
Fork | Orbea Terra ICR, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12x2 P1 |
Bottom Bracket | PF30, press-fit |
Headset | FSA 1-1/2" Integrated Aluminium Cup |
Stem | OC Road Performance RP10, -8º |
Handlebar | OC Gravel GR31, Reach 70, Drop 110 |
Saddle | Prologo Akero AGX STN size 155mm |
Seatpost | OC Performance XP10 Carbon, 27.2mm, Setback 0 Type: Rigid |
Rear Derailleur | Shimano GRX RX820 |
---|---|
Front Derailleur | Shimano GRX RX820 |
Crank | Shimano GRX RX820 31x48t |
Shifters | Shimano GRX RX820 |
Cassette | Shimano 105 R7100 11-34t 12-Speed |
Chain | Shimano M7100 |
Brakes | Shimano RX820 Hydraulic disc Type: Hydraulic Disc |
Rims | Alloy, Tubeless, 700c, 21c |
---|---|
Tires | Vittoria Terreno Dry CX-Gravel G2.0 TNT 700x38c |
Last updated May 6
