2024 Orbea

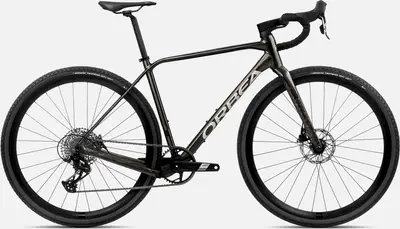

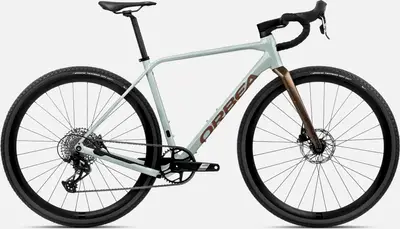

TERRA H41 1X
An aluminum frame gravel bike with upper mid-range components and hydraulic disc brakes.
Compare the full range
Manufacturer Price
$2,899| Frame | Aluminum |
|---|---|
| Suspension | Rigid |
| Fork | Carbon |
| Wheels | 700c Aluminum |
| Drivetrain | 1 × 12 |
| Groupset | Apex XPLR |
| Brakes | Hydraulic Disc |
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full TERRA model range
View Comparison5'1" – 5'7"
5'4" – 5'9"
5'7" – 6'0"
5'10" – 6'2"
6'0" – 6'4"
6'2" – 6'10"
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Jan 2024 · David Feddersen
A generalist that’s up for everything, the Orbea Terra M21e Team Custom M tries to shake up the adventure gravel bike group test with its versatility. Does it succeed?
Caters to a wide range of applications from touring to racing
Customisable paint job via the online configurator
Comfortable even without suspension
Limited off-road performance of the tires
Jun 2023 · Warren Rossiter
One of the most competent all-round gravel bikes available today
Compliant comfortable ride
Quick handling
Fast and most importantly fun
Solid wheels would bear an upgrade
| Frame | Orbea Terra Hydro disc, hydroformed triple butted aluminium, HS 1,5", PF, Thru Axle 12mm x 142mm rear, thread M12x2 P1, DT internal cable routing, 27,2mm seat tube, MMS system Colors: Artichoke (Matt) - Lilac (Matt); Infinity Green - Ivory White (Gloss); Blue Stone (Gloss) - Copper (Matt) |
|---|---|
| Fork | Orbea Terra ICR, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12x2 P1 |
| Headset | FSA 1-1/2" Integrated Aluminium Cup |
| Stem | OC Road Performance RP21, -6º |
| Handlebar | OC Gravel GR31-R, Rise 15, Reach 70, Drop 110 |
| Saddle | Prologo Akero AGX STN size 155mm |
| Seatpost | SP 0.2 Carbon, 27.2mm, Setback 20 Type: Rigid |
| Rear Derailleur | SRAM Apex XPLR 12s |
|---|---|
| Crank | SRAM Apex 1 DM Dub Wide 40t Steel |
| Shifters | SRAM Apex |
| Cassette | SRAM PG-1231 XPLR 11-44t 12-Speed |
| Chain | SRAM Apex 12-Speed |
| Brakes | SRAM Apex Hydraulic Type: Hydraulic Disc |
| Rims | Alloy, Tubeless, 700c, 21c |
|---|---|
| Tires | Vittoria Terreno Dry Gravel 700x38c |
