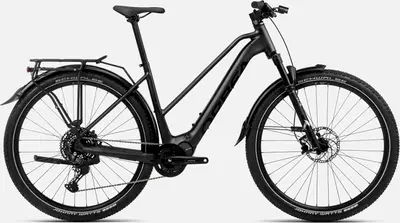

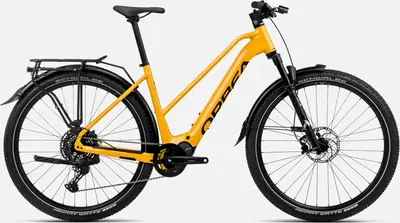

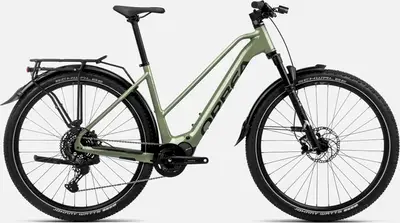

KEMEN MID SUV 30
A 29″ aluminum frame women’s commuter e-bike with mid-range components and hydraulic disc brakes.
Manufacturer Price
£3,799($4,810)Frame | Aluminum |
---|---|
Suspension | Hardtail, 100mm |
Fork | Marzocchi Bomber Z2 |
Wheels | 29″ Aluminum |
Drivetrain | 1 × 10 |
Groupset | CUES |
Motor | Shimano 600W 85Nm mid-drive |
Battery | 540Wh |
Brakes | Hydraulic Disc |
For This Bike
5'2" – 5'7"
5'6" – 5'11"
5'9" – 6'2"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Apr 2023 · Warren Rossiter
Off-road capable commuter ebike
Great package
Huge range
Powerful motor
Brakes lack feel
Boost mode is overkill in standard setting
Jan 2023
Price: $4599.00 | Model Year: 2023 | An adventure touring ebike equipped with sturdy aluminum alloy fenders, bright well-positioned integrated lights, and an optional range extending battery pack shaped like a water bottle.
An adventure touring ebike equipped with sturdy aluminum alloy fenders, bright well-positioned integrated lights, and an optional range extending battery pack shaped like a water bottle.
Available in two frame styles and four frame sizes for improved fit, three colors to match your style or stand out for safety, and the purpose built frame protects and hides most cables and wires.
Knobby off-road tires include puncture protection and reflective stripes. Highly adjustable air suspension fork with sturdy Boost hub spacing, and 15mm thru-axle. Powerful Shimano EP8 mid-drive motor.
The primary battery pack is not easily removable for transport or charging. If you get the range extender, it must be charged independently from the main pack. The charge port is low on the frame near the left crank. The bike power button is separate from the control pad.
Frame | Orbea Kemen Mid Bar, Shimano Steps, Integrated battery, Hydroformed Alloy 6061 series Internal Cable Routing, Boost 148x12, carrier and kickstand compatible BB Standard: STEPS, Press Fit Colors: Urban Green (Gloss) - Black (Matt); Mango (Gloss) - Black (Matt); Metallic Night Black (Matt-Gloss) |
---|---|
Fork | Marzocchi Bomber Z2 100 QR15x110 E-Bike Optimized Travel: 100mm Spring Type: Air |
Bottom Bracket | STEPS, press-fit |
Headset | FSA 1-1/2" Integrated Aluminium Cup |
Stem | Alloy forged, 35mm interface, -6º, ICR |
Handlebar | OC Mountain Control MC31, Rise20, Width 800 |
Saddle | Selle Royal Vivo Sport Women 160x249mm |
Seatpost | Alloy 31.6x300mm Offset 0 Type: Rigid |
Pedals | VP-537 Black |
Grips | OC Lock On |
Rear Derailleur | Shimano Cues U6000 GS Shadow |
---|---|
Crank | Alloy EP8 36t w/chainguard |
Shifters | Shimano Cues SL-U6000 |
Cassette | Shimano CS-LG300 11-48t 10-Speed |
Chain | KMC eGlide |
Brakes | Magura AT2 Hydraulic Disc Easy Route Connection Type: Hydraulic Disc |
Rims | Alloy, Tubeless, 29", 29c, 32H |
---|---|
Tires | Schwalbe Johnny Watts, 29x2.35 RaceGuard Reflective Tape |
Motor | Shimano EP801 |
---|---|
Battery | Orbea Internal 540Wh (Optional 250 Wh Range Extender) |
Remote | EN600-L |
Display | N/A |
Charger | Orbea 2.Generation eBike Smart charger 42V/2-4A |
Lights | Front: Lezyne Ebike POWER STVZO PRO E115 with remote 310 lumens, Rear: Lezyne Super Bright CARRIER STVZO Alert Technology 12Lumen |
---|---|
Fenders | CURANA Apollo 70mm |
Racks | N/A |
Last updated June 24
