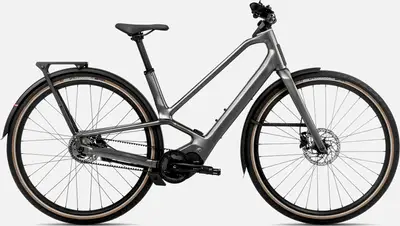

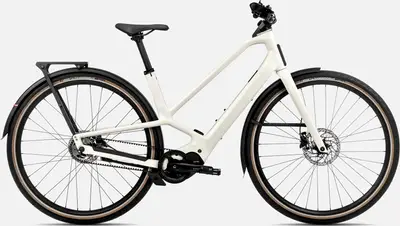

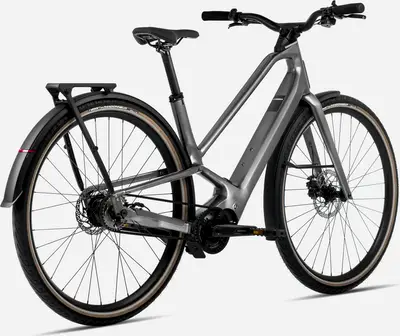

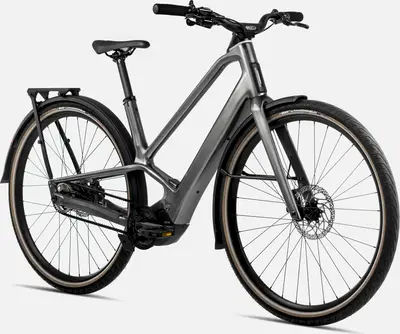

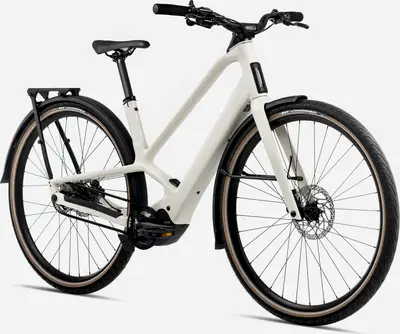

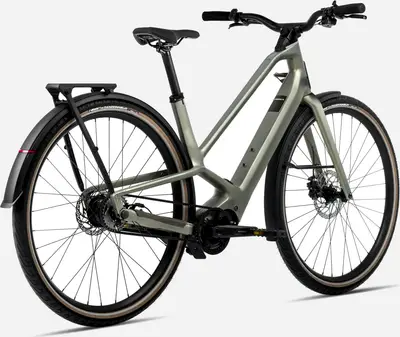

2024 Orbea
DIEM 20 28mph
A 29″ commuter e-bike with modest components and hydraulic disc brakes.
Compare the full range
Manufacturer Price
$4,699| Suspension | Rigid |
|---|---|
| Fork | Carbon |
| Wheels | 29″ Aluminum |
| Drivetrain | Belt Drive, Internally Geared Hub |
| Groupset | microSHIFT, Gates CDX |
| Motor | Shimano 250W 85Nm mid-drive |
| Battery | 630Wh |
| Brakes | Hydraulic Disc |
For This Bike
5'0" – 5'8"
5'4" – 6'1"
5'9" – 6'5"
6'1" – 6'9"
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Mar 2024 · Ron Frazelle
Spanish bike company, Orbea introduces their new commuter eBike, the Diem, their latest step forward on urban strategy.
| Frame | Orbea Diem Hydro High Polished 2024, Flex Tech, 135x9 / 142x12, Headset Routing, Custom Kickstand, Orbea Urban Cockpit and equipment compatible Colors: Spaceship Green (Matt); Ivory White (Gloss); Glitter Anthracite (Gloss) |
|---|---|
| Fork | Orbea Diem carbon fork, full carbon, 1" 1/8 - 1" 1/5, thru axle 12x1, post mount disc mount, Thrue Axle12x100mm, Long mudguards compatible. |
| Headset | FSA 1-1/2" Integrated Aluminium Cup |
| Handlebar | Orbea Urban, Integrated Light, Rise 54, Width 700 |
| Saddle | Selle Royal Vivo Ergo |
| Seatpost | Alloy 31.6x300mm Offset 0 Type: Rigid |
| Pedals | VP-537 Black |
| Crank | Gates CDX 46t w/chainguard |
|---|---|
| Shifters | Microshift TN71 for Nexus Inter 5 |
| Cassette | Gates CDX 34t for Shimano Inter 5e |
| Chain | Gates CDX Belt |
| Chain Guide | Gates CDS |
| Brakes | Shimano MT201 Hydraulic Disc Type: Hydraulic Disc |
| Rims | Alloy, Tubeless, 25c, 32H |
|---|---|
| Tires | Vittoria e-Randonneur 50-622, Reflective band |
| Motor | Shimano EP600 |
|---|---|
| Battery | Orbea Internal 630Wh |
| Remote | EN600-L |
| Charger | Orbea 2.Generation eBike Smart charger 42V/2-4A |
| Lights | Front: Supernova Starstream Pro, High Beam, Rear: Orbea Fender integrated, with alert light |
|---|---|
| Fenders | Curana Apollo Orbit 60mm |
| Racks | Front: N/A, Rear: Orbea RR-01 Alloy, w/Mik & Mik Side and Ortlieb QL3.1 system. Max. 20Kg |
| Bell | Knog OI Classic |
Last updated May 6
